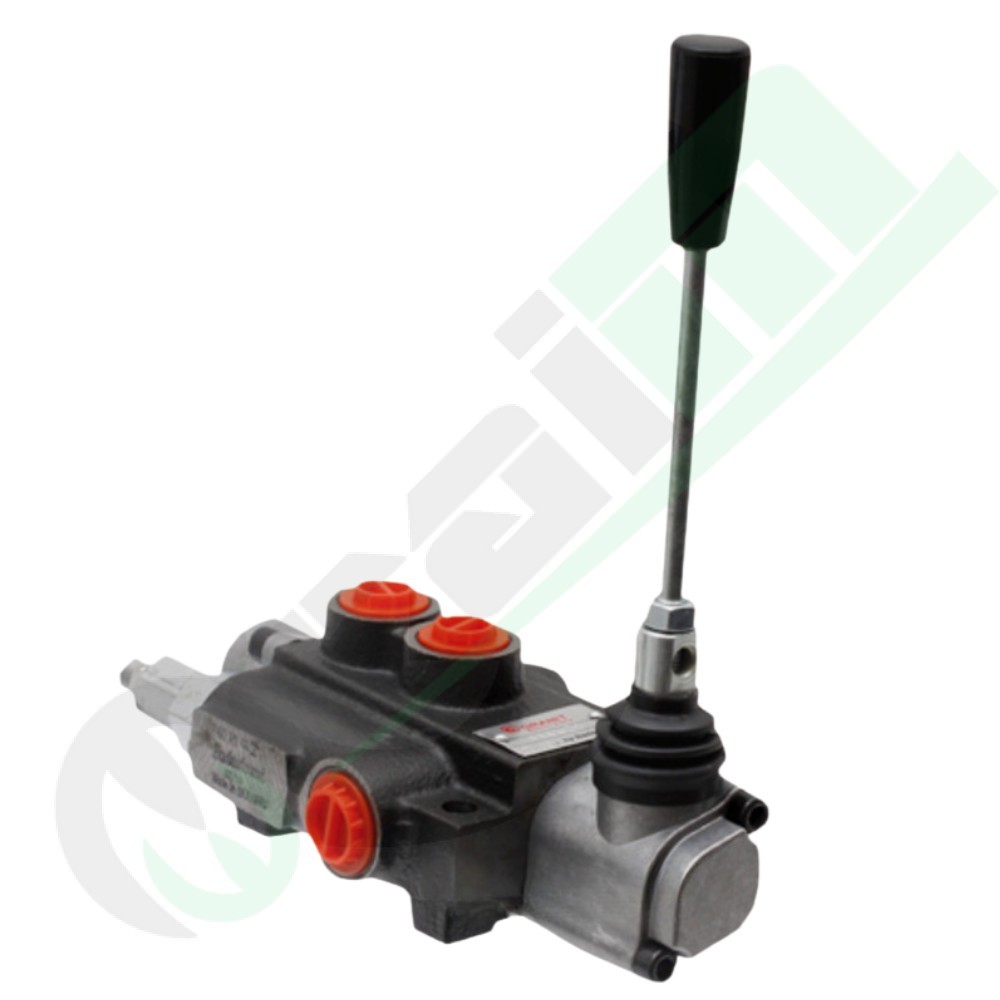

GRANIT Z50 Distributor 87001341 | 1 DA Float | 40 l/min

GRANIT Z50 Monoblock Hydraulic Distributor | 1x Double Acting | Float Position

Granit
87001341

GRANIT 1 Lever 40 Liter Hydraulic Distributor 87001341 (Double Acting and Float)

Hurry! only 2 items left in stock.
€134.90
Tax included
Quantity

Last items in stock
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The GRANIT 87001341 hydraulic distributor is a 4/3 way monoblock directional valve, ideal for controlling a double-acting cylinder, with the additional function of a position flottante with detent in position 3. In the float position, both A and B ports are connected to the tank (T), allowing the cylinder to move freely under an external force, an essential feature for applications like snowplows or agricultural attachments. The center is A-B closed and the lever spring returns to the neutral (center) position from positions 1 and 2. Made of cast iron, it withstands a nominal pressure of 250 bar and a maximum flow rate of 40 l/min.

Functional and Hydraulic Specifications

  • Version: 4/3 way, 1 x double acting (A-B closed / float position with detent in pos. 3).
  • Lever Function: 1 x double acting.
  • Flow Rate (l/min): 40.
  • PN (Nominal Pressure): 250 bar.
  • Adjustment Range (Maximum Pressure): 120-250 bar.
  • Nominal Operating Pressure P - N (Inlet-Outlet): 250 bar.
  • Nominal Operating Pressure A - B (Working Ports): 300 bar.
  • Nominal Operating Pressure T (Tank): 50 bar.
  • Internal Leakage: approx. 15 cm³ /min at 120 bar.
  • Oil Temperature: -15° C to +80°C.
  • Contamination Level: 10 according to NAS1638.

Technical and Structural Data

  • Part Number: 87001341.
  • Orig. Ref.: 01Z50 K16-GKZ1.
  • Leva: 1.
  • Version: cast iron monoblock valve.
  • Connection P (Inlet, BSP): G 1/2".
  • Connection T (Tank, BSP): G 1/2".
  • Connection N (Inlet, BSP): 1/2" BSP.
  • Connection A-B (Working Ports, BSP): G 3/8".

Dimensions (mm)

Dimensional data for installation:

  • A: 60 mm.
  • B: 80 mm.
  • C: 85 mm.
  • D: 60 mm.
: 87001341
