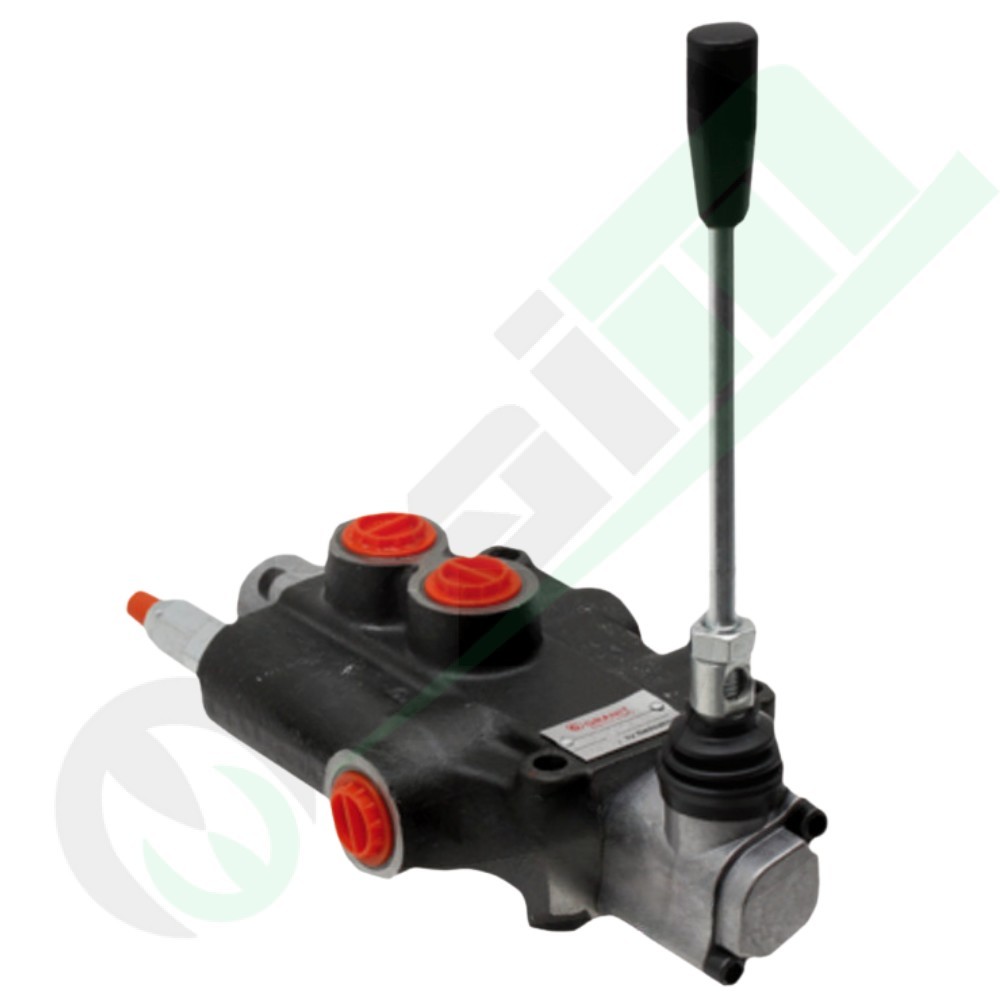

GRANIT Z80 Distributor 87000940 | 1 DA | 80 l/min | 250 bar

GRANIT Z80 Monoblock Hydraulic Distributor | 1x Double Acting | 80 l/min | 250 bar

Granit
87000940

GRANIT 1 Lever 80 Liter Hydraulic Distributor 87000940 (Double Acting and Closed Center)

Hurry! only 3 items left in stock.
€105.00
Tax included
Quantity

Ready for delivery
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The GRANIT 87000940 hydraulic distributor from the Z80 series is a 4/3 way monoblock directional valve, suitable for controlling a double-acting cylinder. This valve is designed to handle a larger flow rate, up to 80 l/min. The center function is A-B closed with spring return, which implies a closed center system where pressure is blocked in the neutral position. The valve is made of cast iron and is suitable for a nominal pressure of 250 bar.

Functional and Hydraulic Specifications

  • Version: 4/3 way, 1 x double acting (A-B closed / spring return).
  • Lever Function: 1 x double acting.
  • Flow Rate (l/min): 80.
  • PN (Nominal Pressure): 250 bar.
  • Nominal Operating Pressure P - N (Inlet-Outlet): 250 bar.
  • Nominal Operating Pressure A - B (Working Ports): 300 bar.
  • Nominal Flow Rate T (Tank): 50 bar.
  • Internal Leakage: approx. 18 cm³/min at 120 bar.
  • Oil Temperature: -15° C to +80°C.
  • Contamination Level: 10 according to NAS1638.

Technical and Structural Data

  • Part Number: 87000940.
  • Orig. Ref.: 01Z80 A1 GKZ1.
  • Lever: 1.
  • Version: cast iron monoblock valve.
  • Connection P (Inlet, BSP): G 1/2".
  • Connection T (Tank, BSP): G 3/4".
  • Connection N (Unspecified / Inlet, BSP): 3/4" BSP (from product description).
  • Connection A-B (Working Ports, BSP): G 1/2".

Dimensions (mm)

Dimensional data for installation:

  • A: 65 mm.
  • B: 80 mm.
  • C: 107 mm.
  • D: 65 mm.
: 87000940
