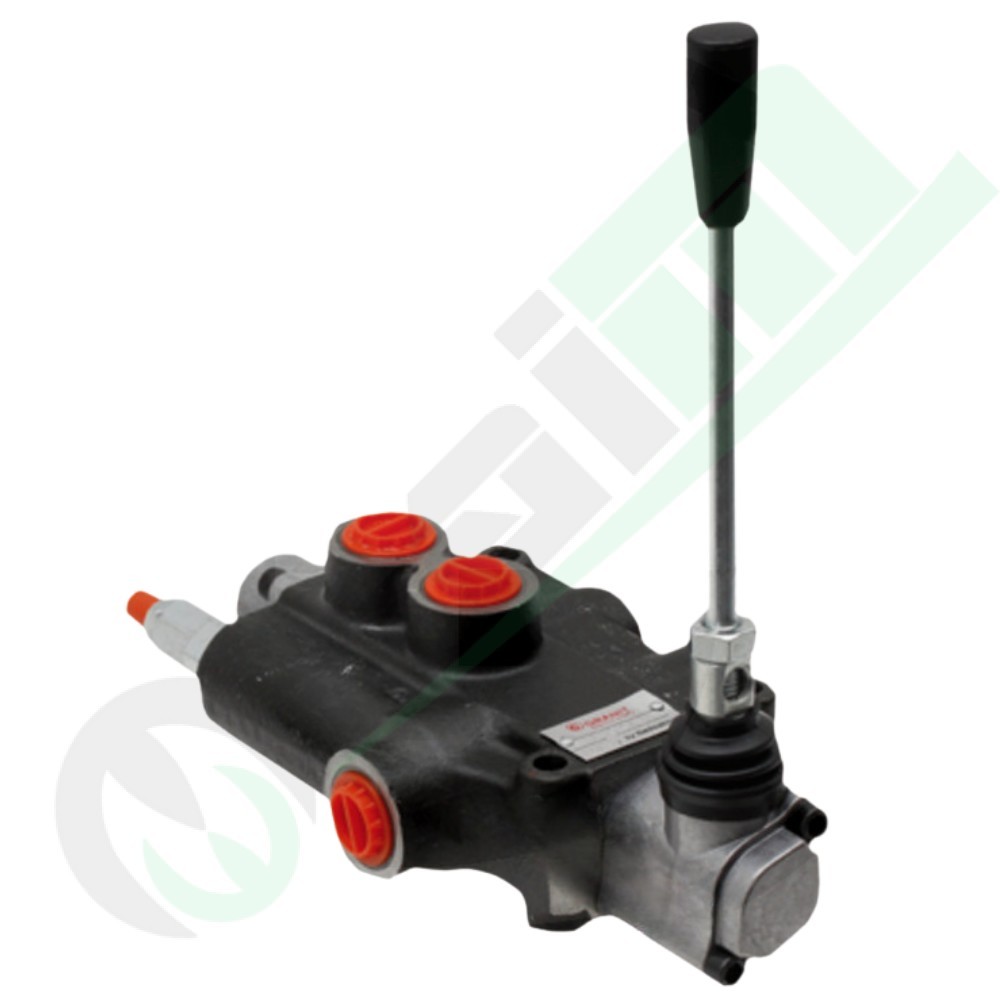

GRANIT Z80 Distributor 87001375 | 1 DA with Detent | 80 l/min

GRANIT Z80 Monoblock Hydraulic Distributor | 1x Double Acting | Detent | 80 l/min

Granit
87001375

GRANIT 1 Lever 80 Liter Hydraulic Distributor 87001375 (Double Acting and Open Center with Detent)

Out of Stock
€165.00
Tax included
Quantity

Processing in approximately 2-3 working days
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The GRANIT 87001375 hydraulic distributor from the Z80 series is a 4/3 way monoblock directional valve, suitable for controlling a double-acting cylinder. The center function is A-B-T connected (open center) with detent in position 1-0-2. This means the lever can be locked in all three main positions: both working positions (1 and 2) and the neutral position (0). In the neutral position, the pump flow (P) is directed to the tank (T). It is important to note that the detent is not installed as standard. The valve is suitable for a flow rate of 80 l/min and a nominal pressure of 250 bar.

Functional and Hydraulic Specifications

  • Version: 4/3 way, 1 x double acting (A-B-T connected / detent in pos. 1-0-2). This is the open center configuration with detent.
  • Lever Function: 1 x double acting.
  • Flow Rate (l/min): 80.
  • PN (Nominal Pressure): 250 bar.
  • Nominal Operating Pressure P - N (Inlet-Outlet): 250 bar.
  • Nominal Operating Pressure A - B (Working Ports): 300 bar.
  • Nominal Flow Rate T (Tank): 50 bar.
  • Internal Leakage: approx. 18 cm³/min at 120 bar.
  • Oil Temperature: -15° C to +80°C.
  • Contamination Level: 10 according to NAS1638.

Technical and Structural Data

  • Part Number: 87001375.
  • Orig. Ref.: 01Z80 D8-GKZ1.
  • Lever: 1.
  • Version: cast iron monoblock valve.
  • Connection P (Inlet, BSP): G 1/2".
  • Connection T (Tank, BSP): G 3/4".
  • Connection N (Inlet/Outlet, BSP): 3/4" BSP (from product description).
  • Connection A-B (Working Ports, BSP): G 1/2".
  • Additional Information: The detent is not installed.

Dimensions (mm)

Dimensional data for installation:

  • A: 65 mm.
  • B: 80 mm.
  • C: 107 mm.
  • D: 65 mm.
