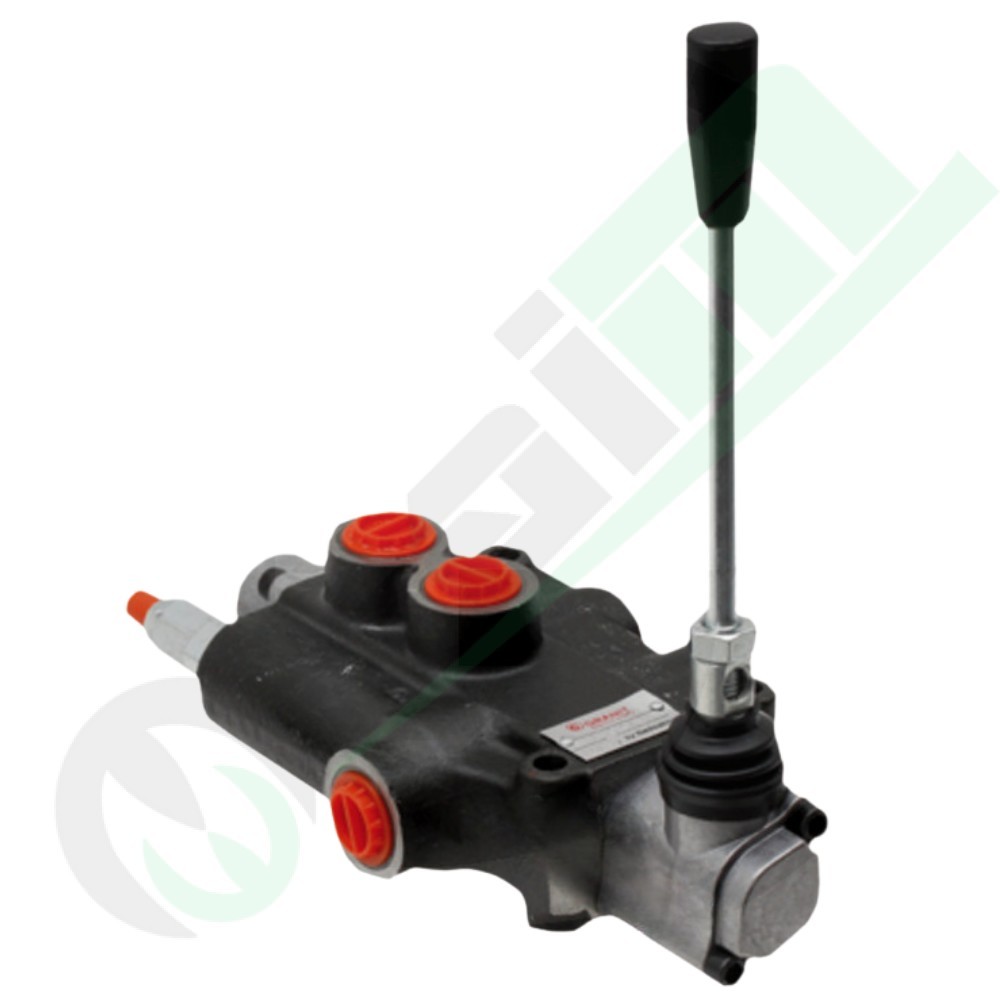

GRANIT P120 Distributor 87001050 | 1 DA | 160 l/min | 250 bar

GRANIT P120 Monoblock Hydraulic Distributor | 1x Double Acting | 160 l/min | 250 bar

Granit
87001050

GRANIT 1 Lever 160 Liter Hydraulic Distributor 87001050 (Double Acting and Closed Center)

Hurry! only 2 items left in stock.
€319.00
Tax included
Quantity

Last items in stock
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The GRANIT 87001050 hydraulic distributor from the P120 series is a 4/3 way monoblock directional valve, designed to control a double-acting cylinder (DW). This valve is suitable for applications requiring a high flow rate, up to 160 l/min. The center function is A-B closed with spring return. This configures a closed center system, where the pump flow (P) is blocked in the neutral position (center). The valve is made of cast steel and is suitable for a nominal pressure of 250 bar.

Functional and Hydraulic Specifications

  • Version: 4/3 way, 1 x double acting (A-B closed / spring return). This is the closed center configuration.
  • Lever Function: 1 x double acting.
  • Flow Rate (l/min): 160.
  • PN (Nominal Pressure): 250 bar.
  • Nominal Operating Pressure P (Inlet): 250 bar.
  • Nominal Operating Pressure A/B (Working Ports): 300 bar.
  • Nominal Operating Pressure T (Tank): 50 bar.
  • Internal Leakage: approx. 30 cm³/min at 120 bar.
  • Oil Temperature: -15° C to +80°C.
  • Contamination Level: 10 according to NAS1638.

Technical and Structural Data

  • Part Number: 87001050.
  • Orig. Ref.: 01P120 A1GKZ1 - 11.
  • Lever: 1.
  • Version: cast steel monoblock valve.
  • Connection P (Inlet, BSP): G 1".
  • Connection T (Tank, BSP): G 1".
  • Connection A-B (Working Ports, BSP): G 1".

Dimensions (mm)

Dimensional data for installation:

  • A: 129 mm.
  • B: 160 mm.
  • C: 64 mm.
: 87001050
