HELLA Battery Isolator 6EK 001 559-001 | 100A | M10 | John Deere

HELLA Key-Operated Battery Disconnect Switch 100A Nom. 6EK 001 559-001

Name: HELLA Key-Operated Battery Disconnect Switch 100A Nom. 6EK 001 559-001
Brand: Hella
SKU: 6EK 001 559-001
Price: 164.9 EUR
Availability: InStock

Brand : Hella

Reference : 6EK 001 559-001

Hurry! only 2 items left in stock.

€164.90

Tax included

Quantity

Last items in stock

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

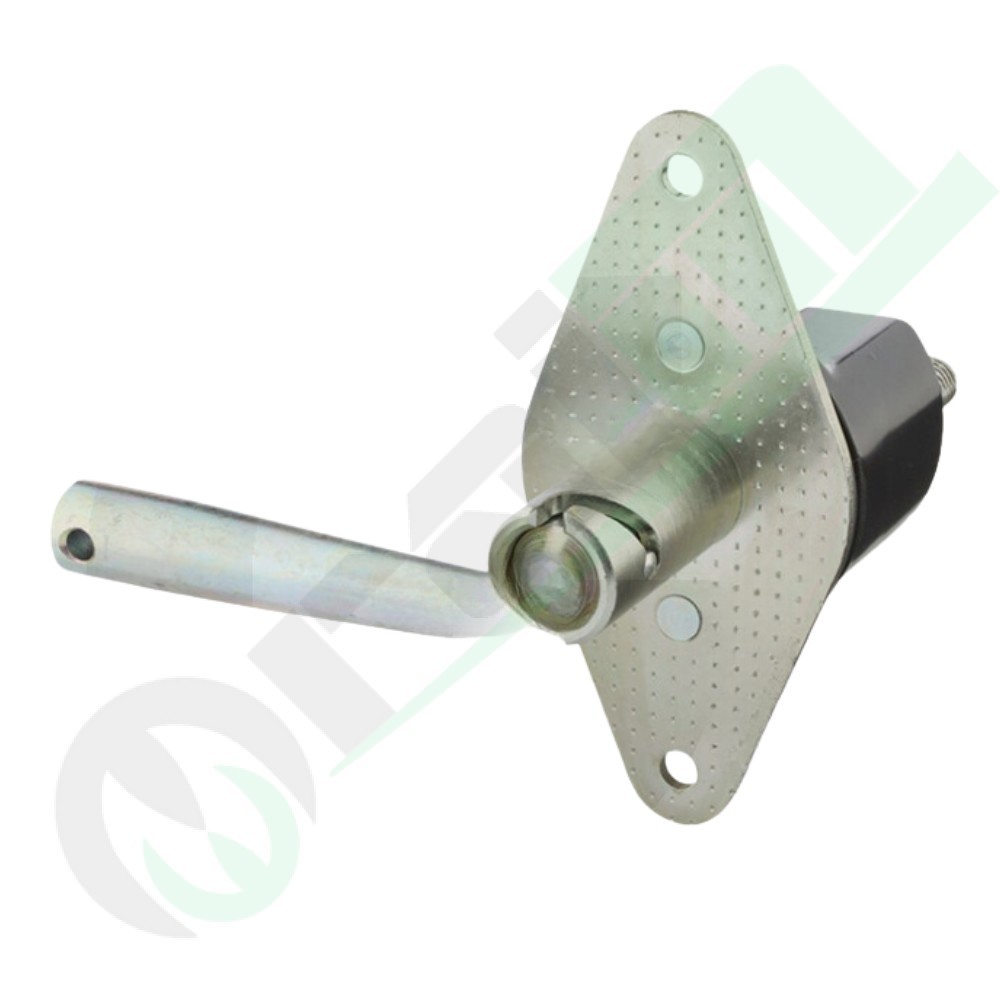

The **HELLA Battery Disconnect Switch** (part number 6EK 001 559-001) is a professional rotary isolator designed for the main battery cable in 12 V and 24 V vehicles. The **key is removable in the "off" position**, serving as both an anti-theft device and a safety measure.

Technical Details

Product Code: 6EK 001 559-001

Type: Battery Disconnect Switch with Key

Operation: Rotary action, Make contact (Closing contact)

Continuous Current Rating: 100 A (at max 60°C with 50 mm² cable)

Max Surge Load (10 sec. at 24V): Max. 2500 A

Operating Voltage: 12 V / 24 V

Connections: 2 screw terminals

Threaded Connection: M10

Thread Pitch: 1.5 mm

Protection Rating (DIN 40050): IP53 (Rear), IPX4 (Front)

Mounting Method: Bolted

Accessories Included: With screws

Alternative/OEM Codes: AL68661

Key Features and Adaptability

**Dual Application:** Can be installed on either the **negative (-)** or **positive (+)** main battery cable.
**Anti-Theft Safety:** The switch key is removable only in the **'0' (off)** position.
**High Current Capacity:** Excellent continuous rating (**100 A**) and very high surge peak (**2500 A**) for starting heavy engines.
