Rotary Battery Isolator 50702269 | 300A | 48V | M10

Rotary Battery Disconnect Switch 300A Rated 48V Part No. 50702269

Granit
50702269

Rotary Battery Disconnect Switch 300A Rated 48V Part No. 50702269

Hurry! only 4 items left in stock.
€20.00
Tax included
Quantity

Ready for delivery
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

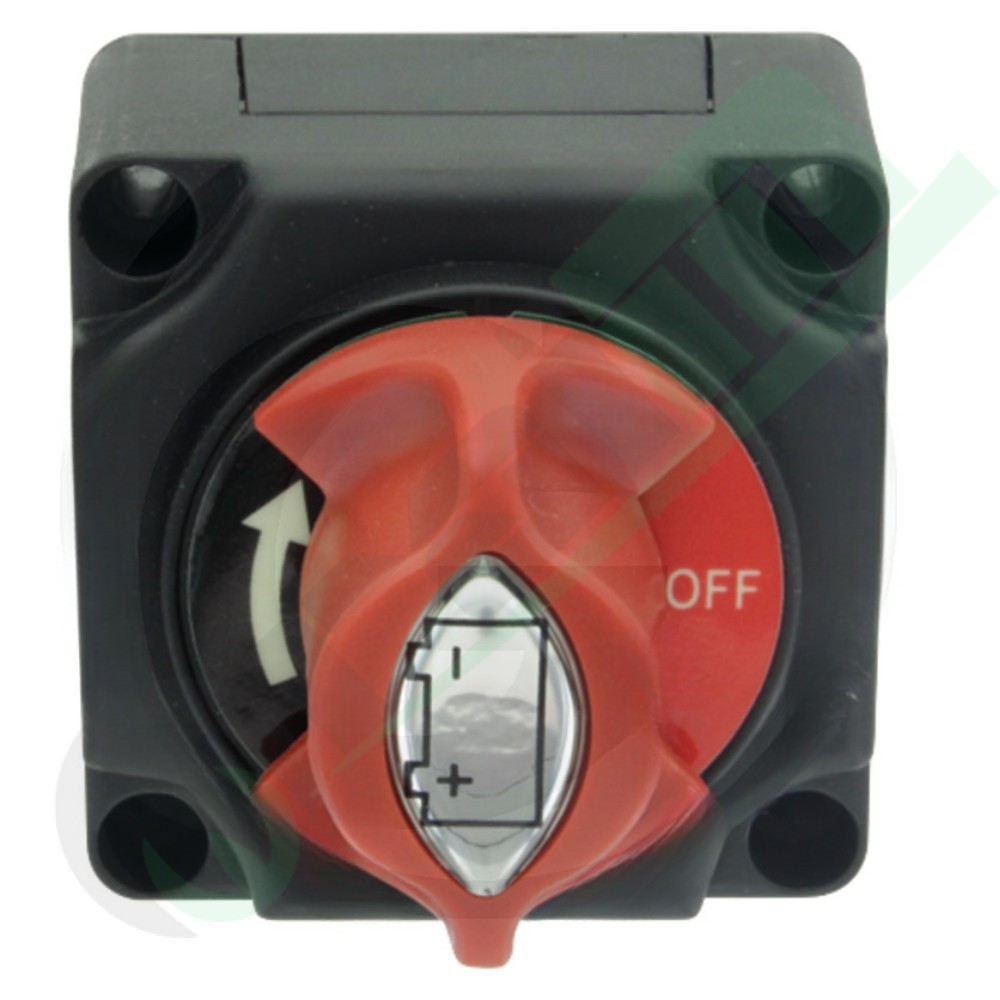

The Battery Disconnect Switch part number 50702269 is a manual rotary-operated (ON / OFF) isolator, designed for high-voltage systems up to 48 V. With a continuous load capacity of 300 A, it is ideal for isolating batteries in electric vehicles, large machinery, or storage systems where high current and voltage management are required.

Technical Details

Product Code: 50702269
Type: Manual Battery Disconnect Switch
Operation: Rotary (ON / OFF)
Maximum Operating Voltage: 48 V
Continuous Load at 48 V: 300 A
Max Surge Load (5 sec.): 1000 A
Connection: 2 x M10
Operating Ambient Temperature: -40° C to +80° C

Dimensions and Installation

Housing Dimensions: 68.5 x 68.5 mm
Overall Height: 77.0 mm
Rotary Switch Diameter: 52 mm
Fixing Hole Diameter: 4 x Ø 5.5 mm
Center Hole Distance: 55 mm

Key Features

  • High Voltage/Current: Designed for 48 V systems, handling 300 A continuous load with peaks up to 1000 A.
  • Robust Connections: M10 screw terminals accommodate large gauge cables for a secure electrical connection.
  • Wide Temperature Range: Operates reliably from -40° C to +80° C, suitable for extreme climates.
  • Compact Design: The rotary action offers simple functionality and a compact footprint for installation.
