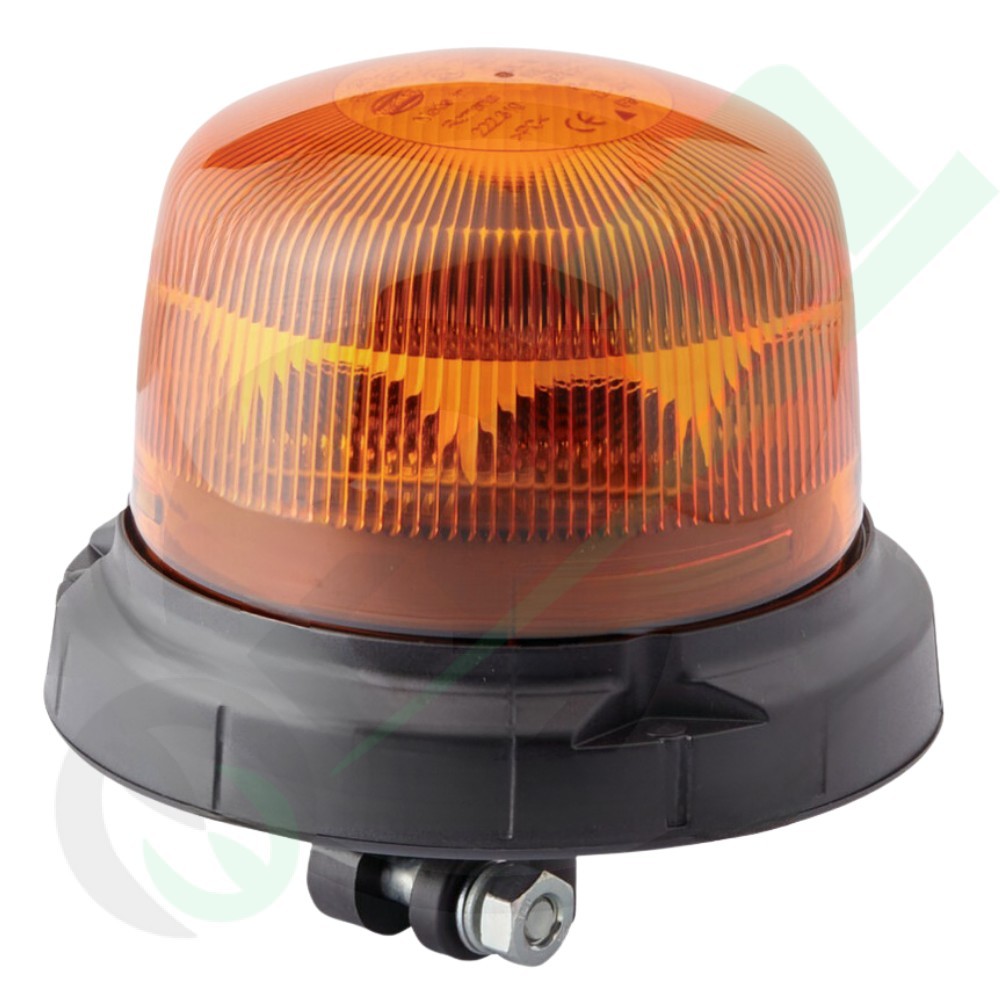

High-resistance warning beacon **HELLA KL Rota LED Compact** with **LED technology**. It provides the **Rotating** light function and is powered by **multi-voltage (9V-30V)**, with extremely low consumption (7W). It is IP67/IPX9K certified and mounts on a flexible stem/socket.
Technical Details
HELLA Part Number: 2RL 014 979-011
Lamp Type: LED
Type: KL Rota LED Compact
Light Function: Rotating (Simulated)
Nominal Voltage (Range): 9 V - 30 V
Voltage (Nominal V): 12 V / 24 V
Power Consumption: 7 W
Current Consumption (A): 0.6 A (12V) / 0.3 A (24V)
Bulbs Included: Yes (Integrated LEDs)
Mounting Mode / Connection: Socket / Plug-in Tube (Flexible Stem)
Color: Yellow (Amber)
Protection Type (IP): IP 67, IP X9K (Maximum resistance to water and high-pressure/temperature washing)
Housing / Lens Material: ABS / Polycarbonate
Certification Mark: ECE-R65 TA1, ECE-R10, SAE J845 Cl. 2, GGVSE / ADR
Dimensions and Other References
Diameter: 165 mm
Total Height: 164 mm
Body Color: Black
Other Codes: 4550018296
Key Advantages
- **Low Consumption:** Only 7W of power draw.
- **Extreme Durability:** IP 67 and IP X9K certifications (resistance to high-pressure/high-temperature washing).
- **R65 Class 1 Approval:** Certifies performance for emergency/hazard signaling.
