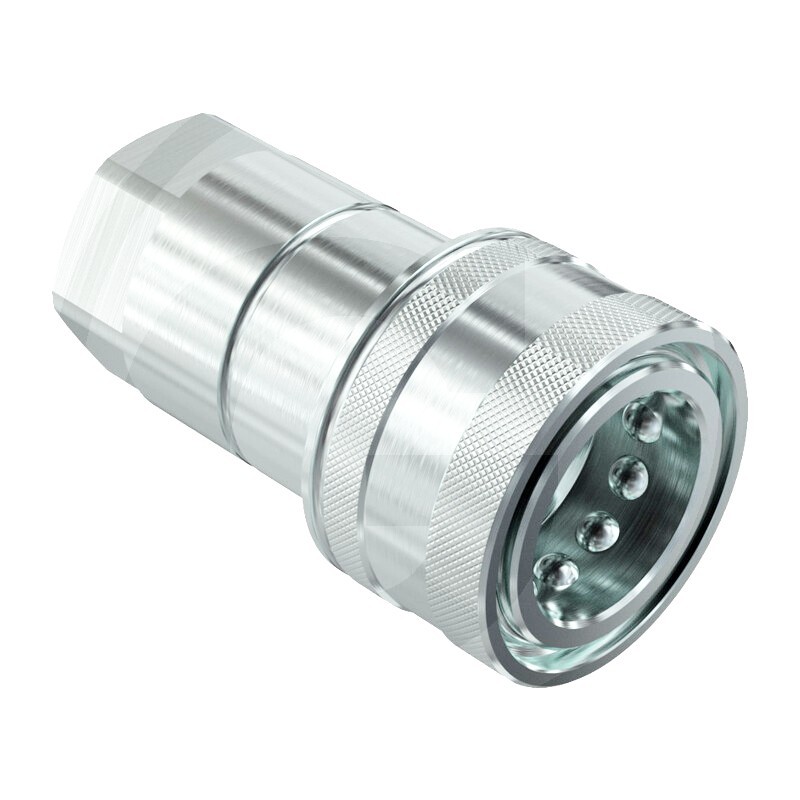

Faster Quick Coupling Female NV Series M22x1.5mm DN12

Faster Quick Coupling Female NV Series M22x1.5mm DN12

Faster
86003911

Faster Quick Coupling Female NV Series M22x1.5mm DN12

Hurry! only 9 items left in stock.
€19.50
Tax included
Quantity

Add to Compare
Add to Wishlist
  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Faster Quick Coupling Female NV Series M22x1.5mm DN12

Features:

Nominal width: DN 12

Series: 3

Thread connection: M22 x 1.5 mm

Flow rate (l/min): 75

PN (bar): 300

A (mm): 20.4

B (mm): 66

D (mm): 38

AC (mm): 27

Weight: 338 g

BSP, NPT, UNF, internal thread

Agricultural use

Faster standard. Only for NV-12 according to ISO 7241-1 A

Material: Steel, chromium VI-free coating

Temperature range: -25°C to 125°C

Connect / disconnect only by pulling back the clamping sleeve, no pull-back function.

Not pressurized.

Orig. Ref.: NV2215F
