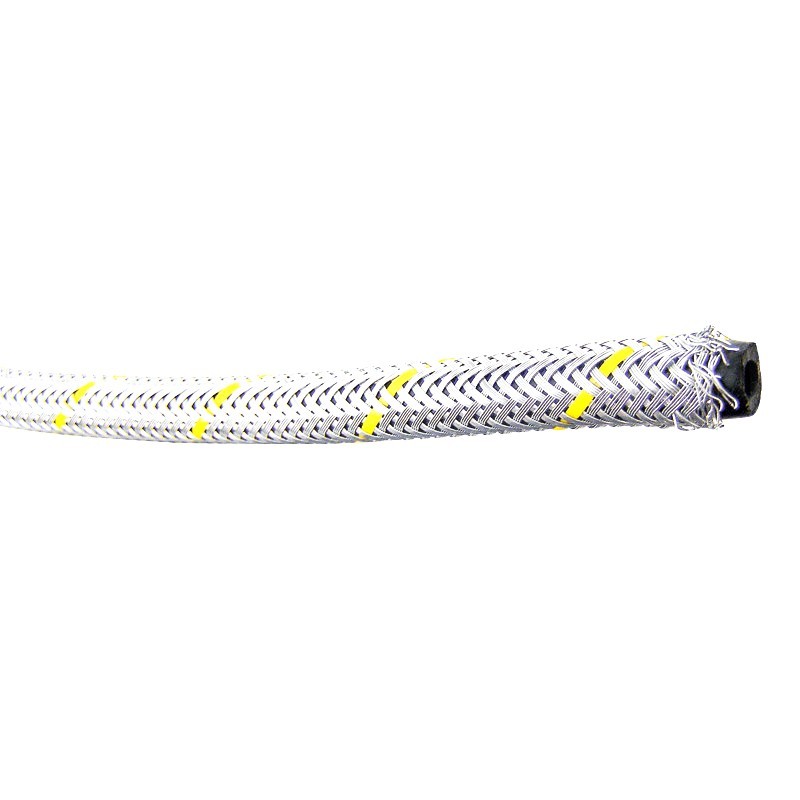

Low Pressure Pipe Ø11x17.7 mm in rubber and steel

Hose type: Type A, with a robust construction of synthetic rubber braided with galvanized steel wire. This configuration provides resistance to both pressure and wear.

Internal Ø: 11 mm, making it suitable for applications requiring moderate flow.

External Ø: 17.7 mm, indicating a certain robustness.

Nominal diameter: 10 mm.

Burst pressure: 50 bar, meaning that the hose can withstand very high pressure peaks before breaking.

Working pressure: 25 bar (and 15 bar in some versions), suitable for continuous use in normal conditions.

Bending radius: 45 mm, allowing good flexibility for use in confined spaces.

DIN 6806 standard: Standard reference that establishes the specifications for this type of hose.

This type of hose is ideal for industrial applications where a certain resistance to pressure and a long life are required, such as in hydraulic systems or the transport of fluids under pressure.

Sale by the Meter
