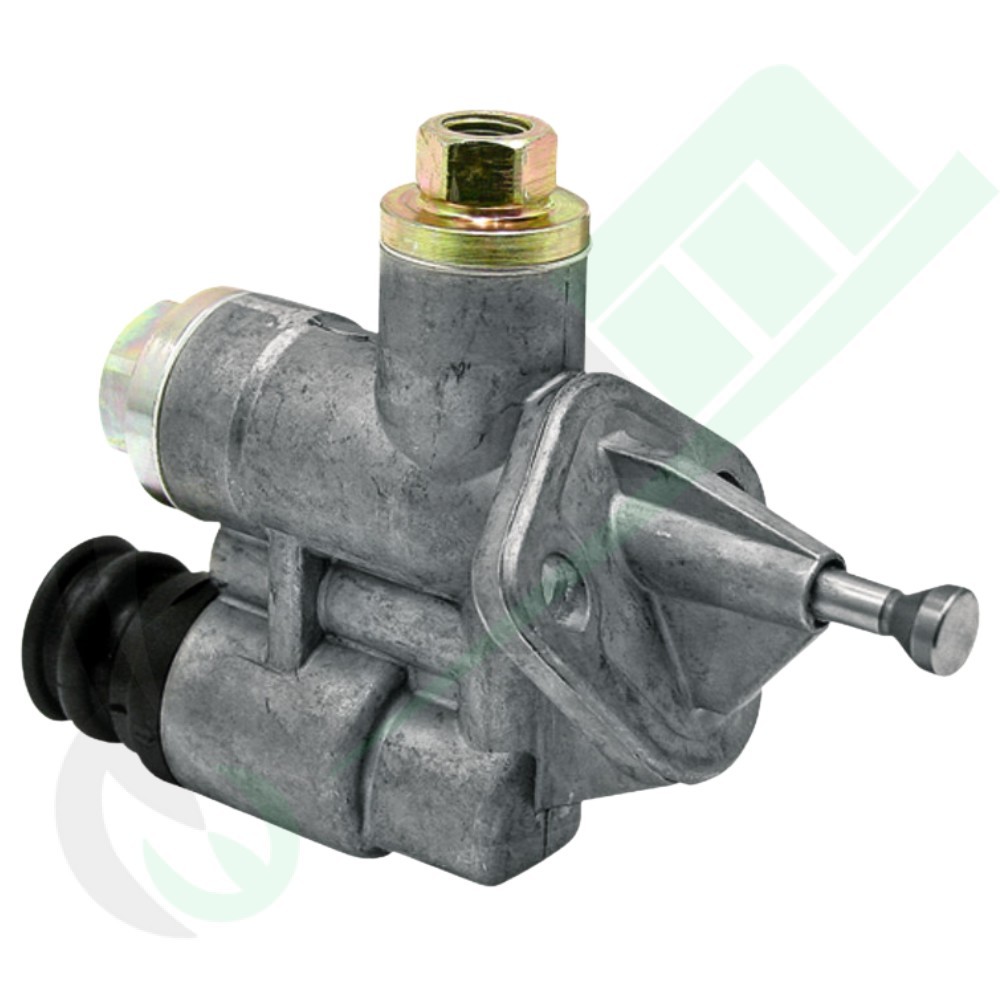

87473338 Fuel Feed Pump for Case IH Tractors

87473338 Fuel Feed Pump for Case IH Tractors

Product Code: 87473338

Original References: I87473338, 87473338, 87473338AM, J936317

Features: This fuel feed pump is a crucial component of the engine's fuel system, responsible for drawing fuel from the tank and sending it under pressure to the injection system. It features two holes for installation, with a hole spacing of 45 mm and a measurement of 57 mm from the flange to the pusher. The 1/4" - 18 NPTF threaded connection ensures optimal compatibility with standard fuel lines, guaranteeing a constant and reliable fuel flow.

Dimensions:

Number of Holes: 2

Hole Spacing: 45 mm

Flange to Pusher: 57 mm

Thread: 1/4" - 18 NPTF

Main Applications: This fuel feed pump is a vital replacement part for numerous models of Case IH tractors and agricultural machines, particularly those equipped with Cummins engines.

Compatible with the following CASE IH models:

Cummins Engine:

Cummins 6T-590

Cummins 6TA-590

AF (Axial-Flow) Series: 1680, 1688, 2144, 2166, 2188, 2344, 2365, 2366, 2388 CF Series: CF 60, CF 70, CF 80 MX Series: MX 100 Maxxum, 110 Maxxum, 120 Maxxum, 135 Maxxum, 150 Maxxum, 170 Maxxum SP Series: 2500SP, 3000SP SPX Series: SPX3150 (5/99-8/02), SPX3185 (5/99-8/02)
