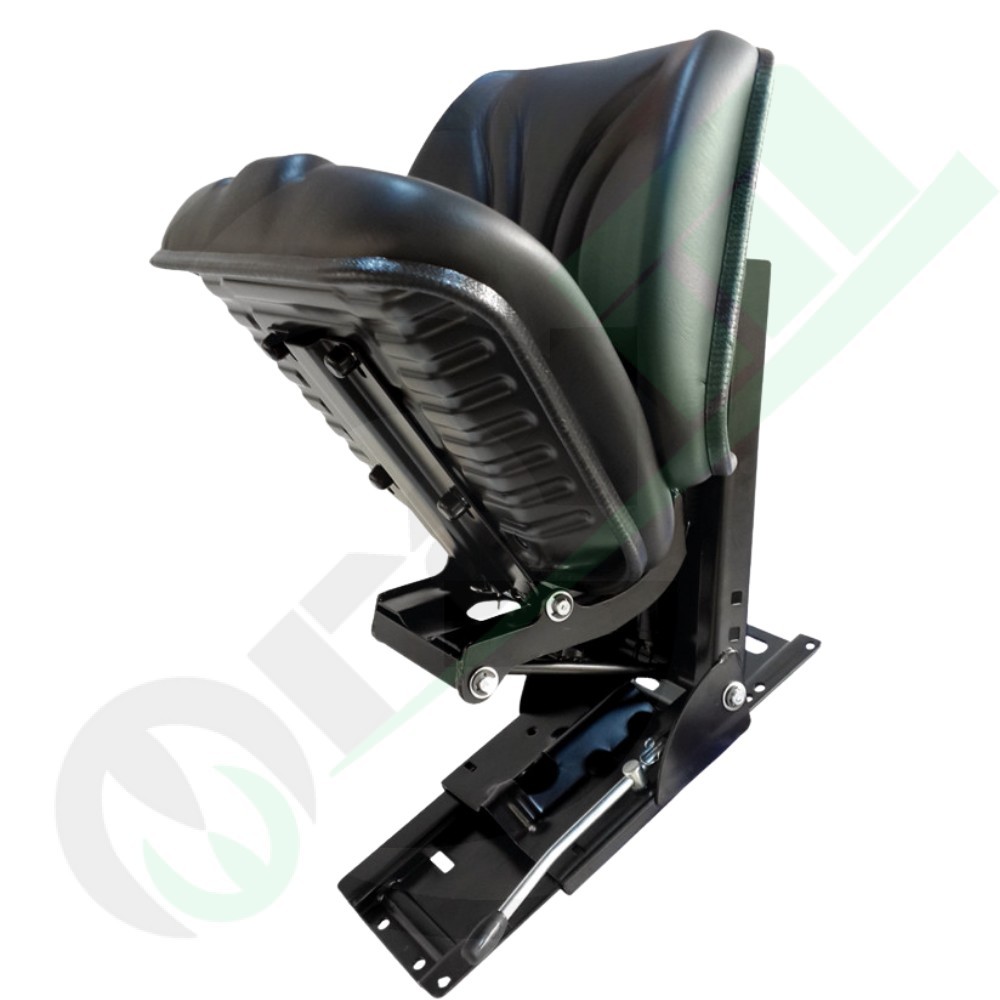

GRANIT Automatic Reclining Seat (24000090)

Product Description

The GRANIT seat (product code 24000090) is a specialized solution designed specifically for vehicles with an inclined cabin. Its main feature is the automatic reclining function of the cushion, which activates when unloaded. Equipped with a robust mechanical suspension with a double-acting shock absorber and a long base plate, it offers stability and comfort even in non-standard operating conditions. The PVC upholstery ensures durability and easy cleaning.

Technical Specifications

• Product Code: 24000090
• Version: For inclined construction
• Suspension: Mechanical, with double-acting shock absorber
• Adjustments:
  • Weight adjustment: 50 kg to 120 kg
  • Longitudinal adjustment: 150 mm (on tracks)
• Special features:
  • The seat cushion automatically reclines when unloaded
  • Long base plate for hydraulic rod
• Dimensions:
  • Seat width: 480 mm
  • Height: 535 mm
  • Length: 380 mm → 640 mm (variable based on recline)
  • Suspension travel: 100 mm
• Mounting:
  • Track: 187 mm
• Upholstery:
  • Material: PVC
• Additional features:
  • Seat switch: No
  • Rotation: No
  • Joystick console: No
  • Lateral suspension: No
  • Seat heating: No
  • Safety belt system: Optional
