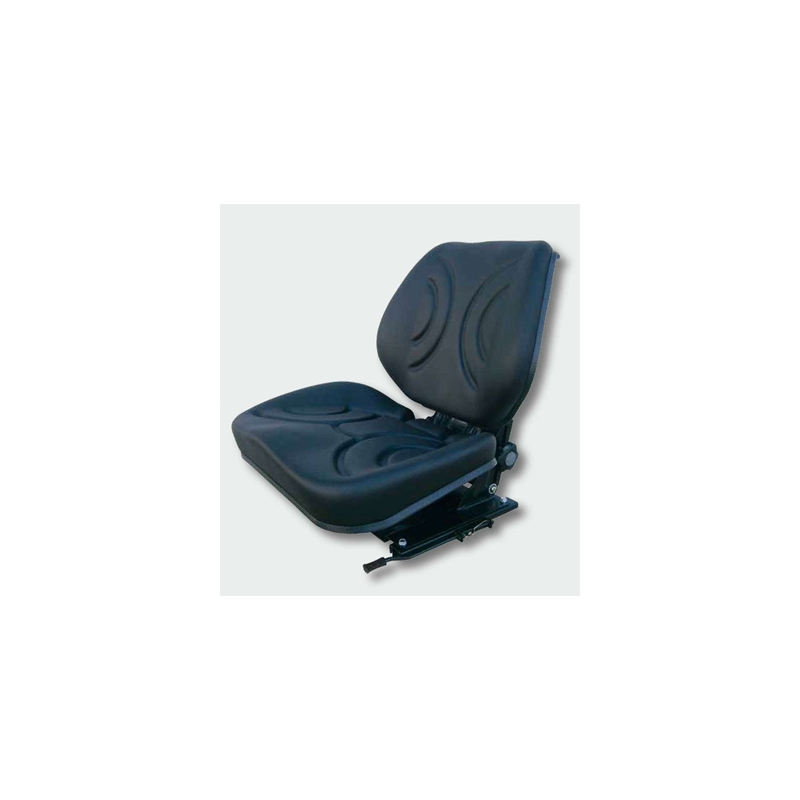

Black PVC seat with mechanical suspension and long backrest

Tractor Seat Compatible with Case IH - Technical Specifications

Compatibility: Case IH.

Damping: Mechanical, for greater stability on rough terrain.

Fabric Material: PVC, durable and easy to clean.

Seat Switch: None.

Gauge (mm): 270.

Seat Width (mm): 480, for a large seating area.

Joystick Console: None.

Lateral Suspension: Not available.

Seat Belt System: Optional, for additional safety.

Seat Heating: Not present.

Rotation: Not available.

Length (mm): 595.

Height (mm): 580.

Advanced Technical Features:

Distance between Guides: 269 mm, adaptable for Case IH tractors.

Adjustments:

Suspension: 100 mm travel for optimum comfort.

Weight: Manual adjustment from 50 to 120 kg.

Longitudinal: Adjustable up to 150 mm to comfortably position the operator.

Seat Height: Adjustable by 60 mm.

Ergonomics: Ergonomic seat shape with long backrest for better postural support.

General Description:

Designed for Case IH tractors, this seat offers adjustable comfort and a robust PVC construction, with mechanical damping that reduces vibrations on difficult terrain. The longitudinal and weight adjustment makes the seat versatile for different operators, while the optional seat belt and ergonomic shape increase safety and comfort during prolonged use.
