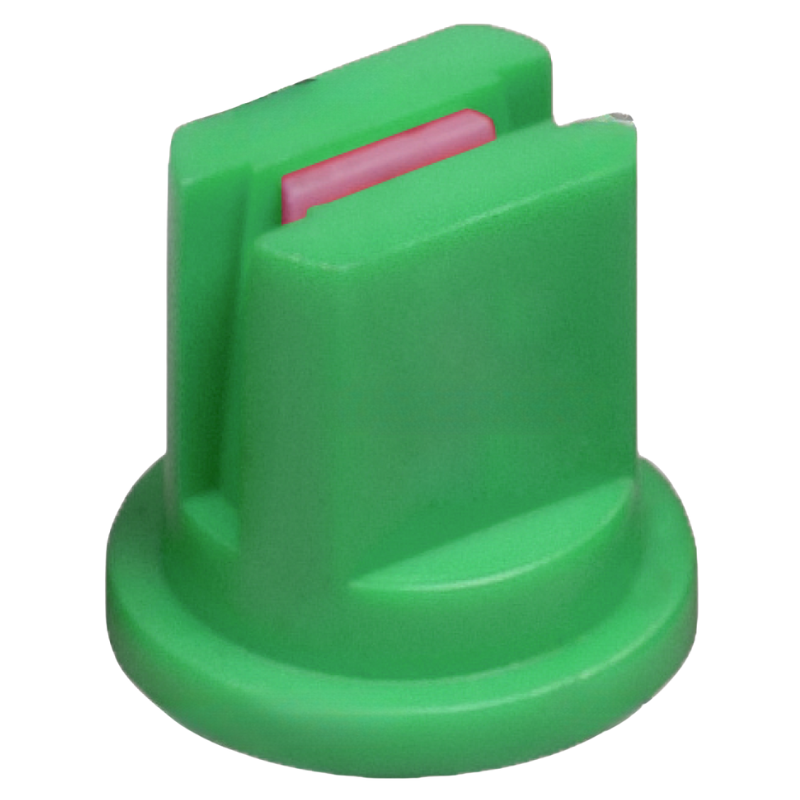

WRC 110° Arag Delrin Fan Nozzle

ISO Fan Nozzle Series WRC 110° Arag

Description

Constant coverage throughout the pressure range.

Constant angle of 110° as the pressure varies from 1 bar.

Reduces drift at pressures of 1 - 1.5 bar and guarantees excellent coverage from 1.5 - 2 bar.

The external body molded in acetal resin, combined with the ceramic insert, provides exceptional durability.

Suitable for treatments with herbicides, fungicides and insecticides.

Product code and features

27510 - Color Green - Flow rate 0.35 ÷ 0.92 l/min - Outlet angle 110°

27511 - Color Yellow - Flow rate 0.46 ÷ 1.22 l/min - Outlet angle 110°

27512 - Color Purple - Flow rate 0.58 ÷ 1.53 l/min - Outlet angle 110°

27513 - Color Blue - Flow rate 0.69 ÷ 1.83 l/min - Outlet angle 110°

27514 - Color Red - Flow rate 0.92 ÷ 2.44 l/min - Outlet angle 110°

27515 - Color Brown - Flow rate 1.15 ÷ 3.06 l/min - Outlet angle 110°

27516 - Color Gray - Flow rate 1.39 ÷ 3.67 l/min - Outlet angle 110°

27517 - Color White - Flow rate 1.85 ÷ 4.89 l/min - Outlet angle 110°

Certification

✅ Certified for precision spraying applications

✅ Chemical and wear resistant material

Main features

✔ Fan nozzle for uniform spraying

✔ Constant spray angle of 110° even at low pressures

✔ Drift reduction technology from 1 bar

✔ Acetal resin structure with ceramic insert for superior durability

Safety and protection

? Resistant to chemicals and abrasion

? Anti-clogging structure for constant performance

Technologies and materials

✔ Material: Acetal resin with ceramic insert

✔ Technology for optimal nebulization and drift reduction

Sectors of use

? Agricultural sector: treatments phytosanitary

? Industry: Spraying and Spraying Applications

? Fogging Systems and Liquid Distribution Systems
