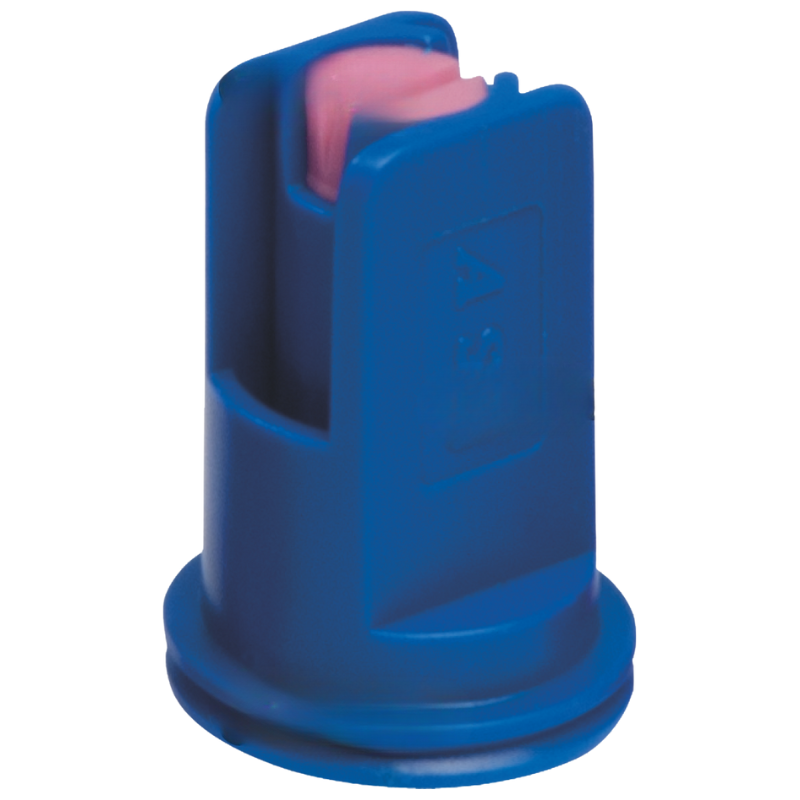

Arag AFC 110° Air Induction Anti-Drift Nozzle
Description
The Arag AFC 110° nozzle is designed to ensure constant coverage at all pressures, reducing drift by up to 90% (at 3 bar) compared to conventional nozzles.
The air induction technology allows for the generation of large droplets filled with air bubbles, which break up into finer droplets upon contact with the crop, optimising product distribution.
The two-piece structure allows for easier cleaning, while the standard dimensions allow for direct replacement of Flat Fan nozzles.
Made with an external body in acetal resin and a ceramic insert, it guarantees exceptional durability and resistance to chemical agents.
Suitable for treatments with herbicides, fungicides and insecticides.
Product code and features
28254 - Color Orange - Flow rate 0.28 ÷ 0.65 l/min - Outlet angle 110°
27225 - Color Green - Flow rate 0.42 ÷ 0.98 l/min - Outlet angle 110°
27226 - Color Yellow - Flow rate 0.57 ÷ 1.31 l/min - Outlet angle 110°
27227 - Color Purple - Flow rate 0.71 ÷ 1.63 l/min - Outlet angle 110°
27228 - Color Blue - Flow rate 0.85 ÷ 1.96 l/min - Outlet angle 110°
27229 - Color Red - Flow rate 1.13 ÷ 2.61 l/min - Outlet angle 110°
27230 - Color Brown - Flow rate 1.41 ÷ 3.27 l/min - Outlet angle 110°
28255 - Color Grey - Flow rate 1.70 ÷ 3.92 l/min - Outlet angle 110°
Certification
✅ Air induction technology for drift reduction up to 90%
✅ Highly resistant to chemicals and wear materials
Main features
✔ Uniform coverage at all pressures
✔ Large droplets that fragment on contact with the crop
✔ Two-piece structure for easier cleaning
✔ Compatible with Flat Fan nozzles
Safety and protection
? Reduces the risk of environmental contamination thanks to reduced drift
? Improves spraying efficiency, avoiding product waste
Technologies and materials
✔ Material: Acetal resin with ceramic insert for long life
✔ Air Induction technology for the formation of air droplets and the reduction of derives
Sectors of use
? Agriculture: targeted phytosanitary treatments
? Industry: nebulization and liquid distribution applications
? Advanced spraying systems
