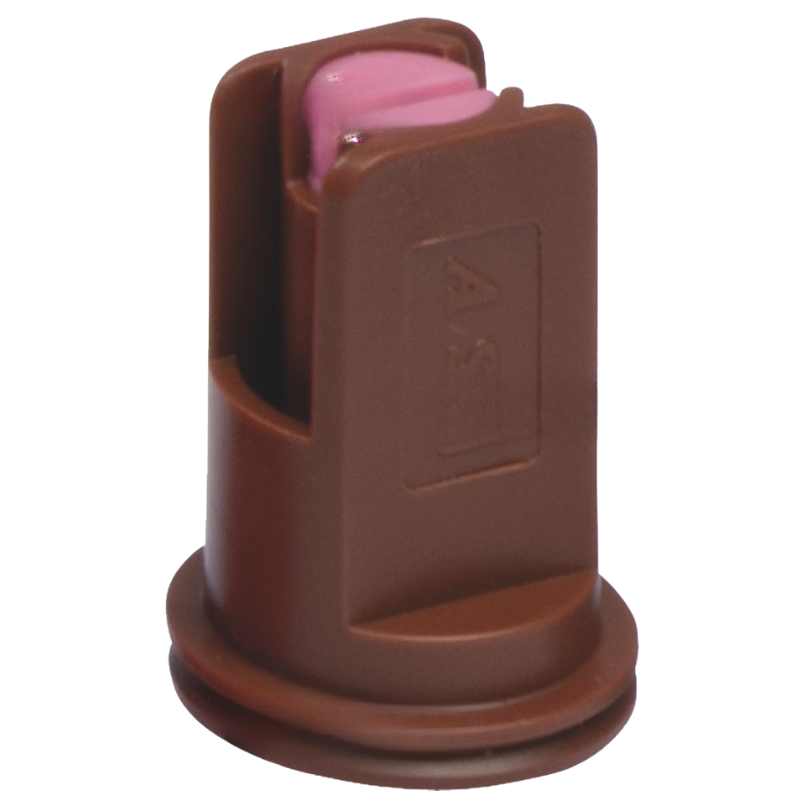

Arag AFC 80° Air Induction Anti-Drift Nozzle
Description
The Arag AFC 80° nozzle ensures constant coverage at all pressures, reducing drift by up to 90% (at 3 bar) compared to conventional nozzles.
Thanks to the air induction technology, it generates large drops full of air bubbles, which in contact with the crop split into finer droplets, improving product distribution.
Its two-piece structure allows for easier cleaning, while the standard dimensions allow direct replacement with Flat Fan type nozzles.
Made with an external body in acetal resin and a ceramic insert, it guarantees long life and high resistance to chemical agents.
Suitable for treatments with herbicides, fungicides and insecticides.
Product code and features
28256 - Color Orange - Flow rate 0.28 ÷ 0.65 l/min - Outlet angle 80°
28257 - Color Green - Flow rate 0.42 ÷ 0.98 l/min - Outlet angle 80°
28258 - Color Yellow - Flow rate 0.57 ÷ 1.31 l/min - Outlet angle 80°
28259 - Color Purple - Flow rate 0.71 ÷ 1.63 l/min - Outlet angle 80°
28260 - Color Blue - Flow rate 0.85 ÷ 1.96 l/min - Outlet angle 80°
28261 - Color Purple - Flow rate 0.99 ÷ 2.29 l/min - Outlet angle 80°
28262 - Color Red - Flow rate 1.13 ÷ 2.61 l/min - Outlet angle 80°
28263 - Brown color - Flow rate 1.41 ÷ 3.27 l/min - Outlet angle 80°
28264 - Grey color - Flow rate 1.70 ÷ 3.92 l/min - Outlet angle 80°
Certification
✅ Air induction technology for drift reduction up to 90%
✅ Chemical and wear resistant materials
Main features
✔ Uniform coverage at all pressures
✔ Large droplets that fragment on contact with the crop
✔ Two-piece structure for easier cleaning
✔ Compatible with Flat Fan nozzles
Safety and protection
? Reduces the risk of environmental contamination thanks to reduced drift
? Optimizes spraying effectiveness, avoiding product waste
Technologies and materials
✔ Material: Acetal resin with ceramic insert for long life
✔ Air Induction technology for the formation of air droplets and the reduction of drift
Sectors of use
? Agriculture: targeted phytosanitary treatments
? Industry: nebulization and liquid distribution applications
? Advanced spraying systems
