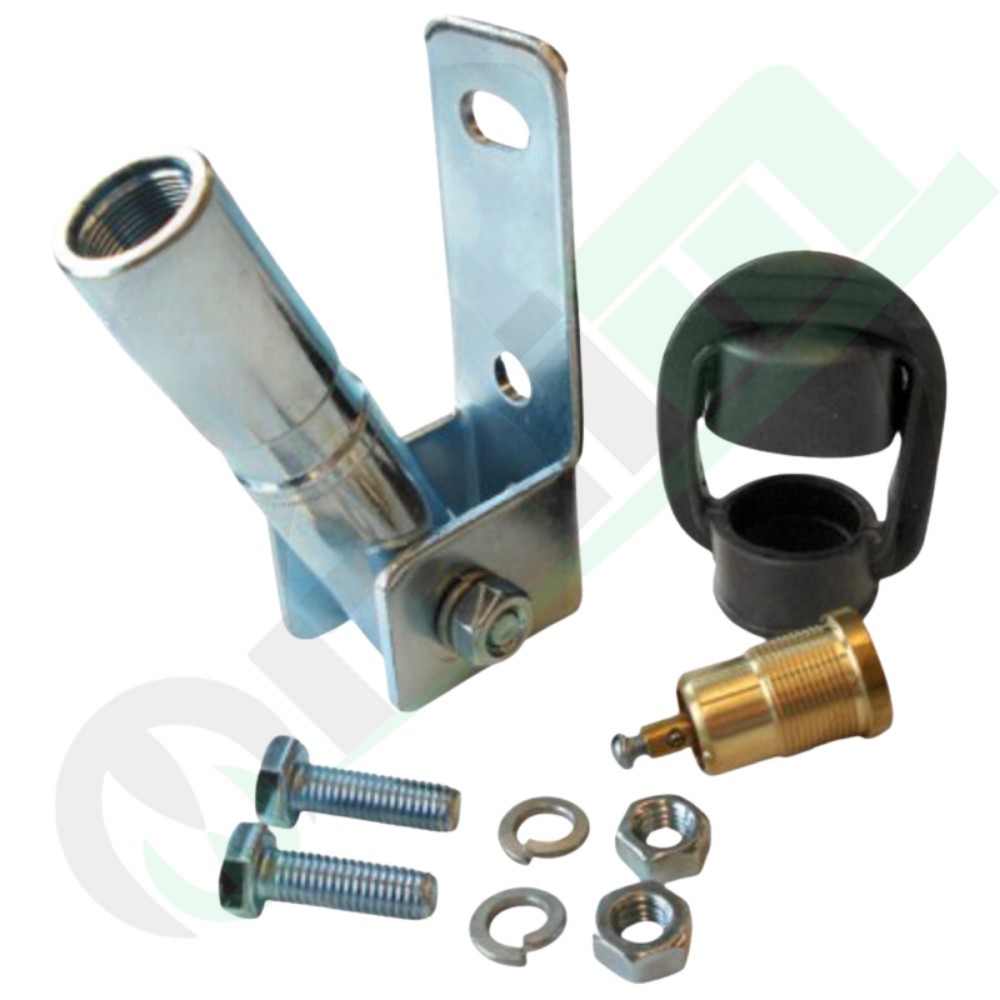

Column holder for rotating or flashing beacons. The pole is designed for extremely versatile mounting and comes with an **integrated brass electrical socket** conforming to DIN 72 591 standard and a protective rubber cap. The column is **swivelling** and adjustable, ideal for angled mounting surfaces.
Technical Details
Part Number: 8HG 006 294-031
Manufacturer: HELLA
Function: Swivel Holder for Rotating/Flashing Beacon
Diameter (Ø): 24 mm
Length (approx.): 100-105 mm
Electrical Connection: Brass Socket according to DIN 72 591 (1-Pin)
Features: Swivelling, adjustable
Included Accessories: Rubber Protecting Cap (with loss protection), Nuts/Screws (2 pieces)
Mounting (Options):
- On a bracket (fixed to the side of the vehicle)
- For welding (onto a flange)
- For screwing (onto horizontal/vertical cabin roofs, adjustable for inclined surfaces)
Key Features
Key Advantages
- **Mounting Versatility:** Allows for side bracket, weld-on, or screw-on roof mounting.
- **Integrated Electrical Socket:** Ensures a standardized (DIN 72 591) and reliable electrical connection.
- **Adjustable/Swivelling:** Enables the light to be adjusted parallel to the roadway, compensating for inclined surfaces.
- **Protection:** Includes a rubber cap to protect the socket when the beacon is not mounted.
