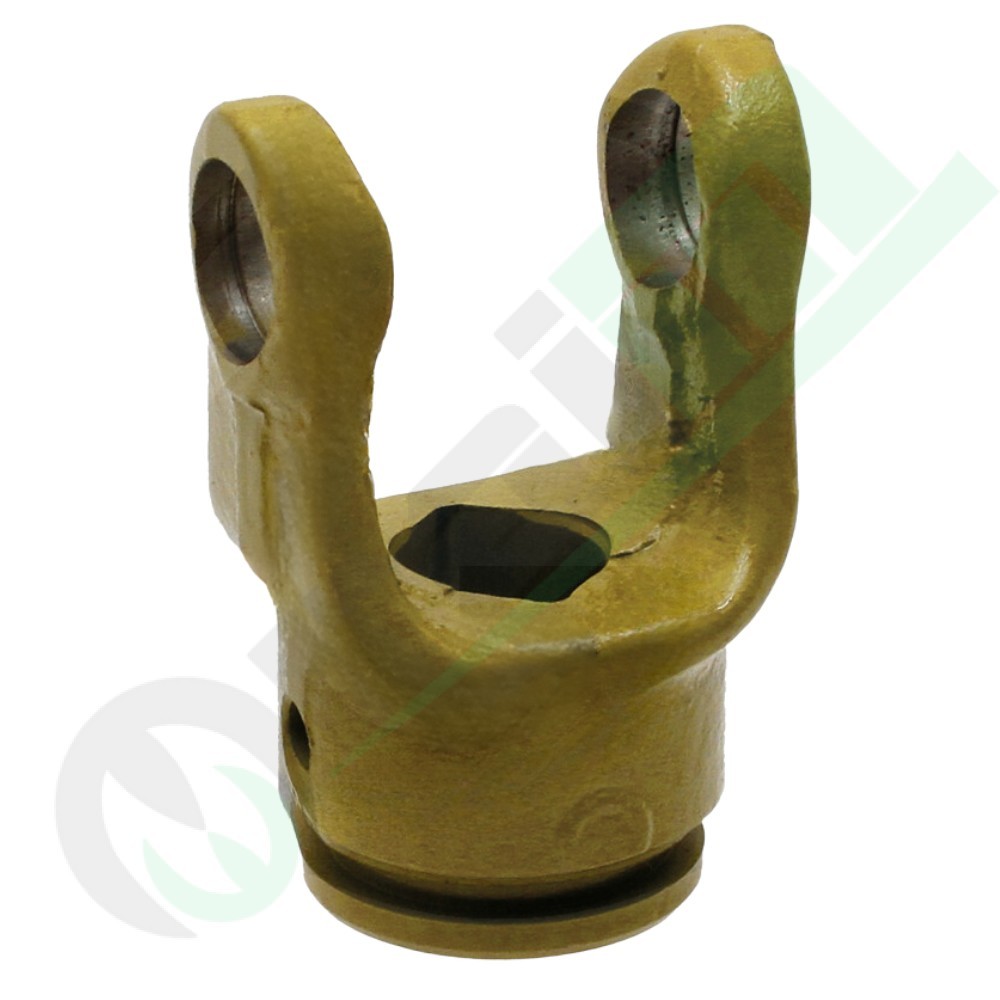

BLUELINE Lemon Profile Inboard Yoke Series F22 G4 23.8x60.3mm Code 377377009

Name: BLUELINE Lemon Profile Inboard Yoke Series F22 G4 23.8x60.3mm Code 377377009
SKU: 377377009
Price: 54.9 EUR
Availability: InStock

Brand : Blueline

Reference : 377377009

BLUELINE inboard yoke for series F22 PTO shafts. G4 lemon profile, 53mm groove diameter. Durable replacement part. Code 377377009.

Hurry! only 2 items left in stock.

€54.90

Tax included

Quantity

Last items in stock

Add to Compare

Add to Wishlist

Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Guarantee safe checkout

BLUELINE tube-side yoke for F22 Series transmissions. Designed for integration with G4 type "lemon" profile tubes, ideal for components requiring a larger housing diameter and torsional stability.

Product Description

The BLUELINE profiled yoke (Code 377377009) represents the top-tier configuration for the F22 Series with a "lemon" profile (G4 version). This component features an internal spline diameter of 53 mm, designed to accommodate the largest tubes in the range, ensuring smooth torque transfer and reducing mechanical stress at the joint points. Made of forged alloy steel, the yoke maintains a width of 60.3 mm, providing solid structural support that prevents flexing under load. The 23.8 mm cross seat (A) is finished with high precision to ensure a perfect fit and balanced rotation. The G4 geometry is particularly suitable for professional transmissions where the strength of the tube-to-yoke connection is vital for the longevity of the entire PTO shaft.

Technical Data & Specifications

Article Code	377377009
Compatible Series	F22
Tube Profile	Lemon (G4)
Spline Diameter	53 mm
Cross Seat Diameter (A)	23.8 mm
Yoke Width	60.3 mm
Total Length (C)	84 mm
Brand	BLUELINE
