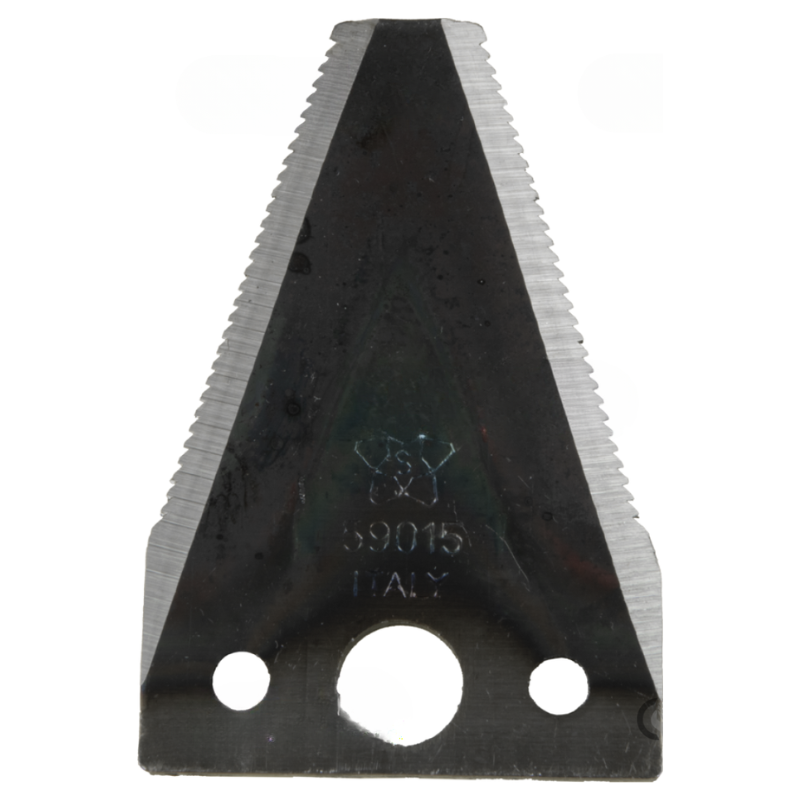

2" 3 Hole Blade Section 80x2.5mm Ribbed - Countersunk Under BCS

2" Blade Section with 3 Ribbed Holes – 2" Flat – 80x2.5 mm – Countersunk Central Hole – Adaptable to OEM Code 580.02466.4 / 212SF / 12198 / 60421 / 582090 / 58.2091 / NB04249 / 206775 / 58048945 / 1.4573.00 / 207653

Product Code: [Insert Code]

Description

2" ribbed blade section with 3 holes, one of which is centrally countersunk at the bottom, designed for 2" flat. This configuration guarantees greater stability in fixing and high performance even on dense vegetation. Compatible with BCS cutter bars and other models, supplied in packs of 25.

Main features

✔ Type: Ribbed – countersunk central hole

✔ Section: 2" blade – 3 holes

✔ Plate: 2" – 80x2.5 mm

✔ Central hole: Ø 12 mm

✔ Packaging: 25 pieces

✔ Ideal for professional and intensive use in agriculture

Technical data

• Width (A): 51 mm

• Length (B): 80 mm

• Hole spacing (C): 30.8 mm

• Base width (b): 11 mm

• Tooth length (h): 15 mm

• Thickness: 2.5 mm

• Rivet hole: Ø 5.5 mm

• Central hole: Ø 12 mm (countersunk below)

• Number of holes: 3

• Reference in figure: 19

Compatibility

? Cutter bars with a 2" plate 2"

? Fits OEM codes:

580.02466.4, 212SF, 12198, 60421, 582090, 58.2091, NB04249, 206775, 58048945, 1.4573.00, 207653
