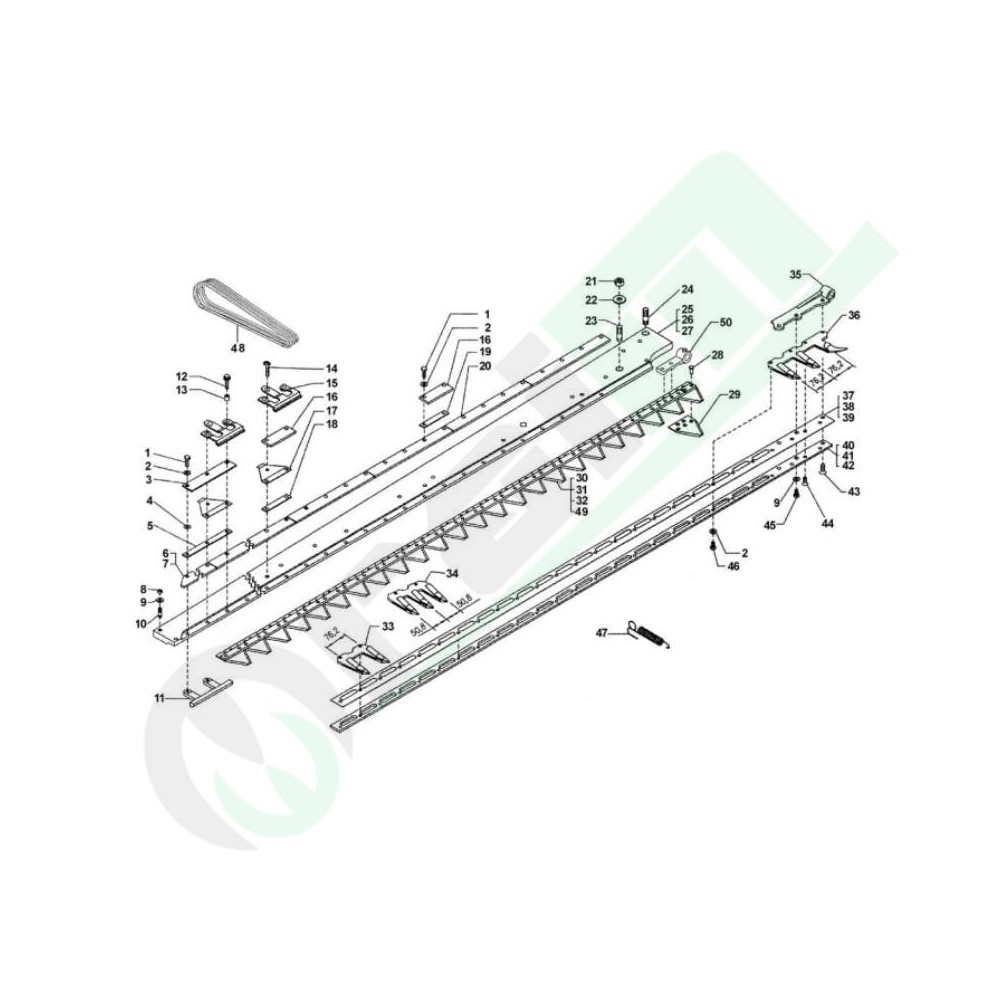

Complete list of original components for the maintenance and restoration of BCS Duplex GOLD cutter bars. Each part is manufactured with certified materials to ensure perfect synchronization of the dual-action blade system.
Detailed Components Table
Fig. Code Technical Description Original Ref.
1 45754 Screw 8x30 Uni 5739 8G 31112152
2 45785 Super Washer 8 DIN 6796 ZNT 31421083
3 46095 XL Outer Upper Blade Guide 56328715
4 46086 Spring Washer B 8.4 DIN 137 31423084
5 45763 Short Intermediate Strip 56127173
6 46096 XL Lower Lateral Blade Guide 1.68 56328712
7 46094 XL Lower Lateral Blade Guide 1.68 56328713
8 46084 Nut M10 UNI 5588 6S 31211100
9 45791 Super Washer 10 DIN 6796 ZNT 31421101
10 46085 Stud Bolt M10x37x15x19 8G 31312101
11 45784 Lower Guide 52158589
12 46083 TE C/F Screw M8x35 DIN 6921 8G 31112165
13 46103 Guide Bushing 56428758
14 46109 Special Blade Holder Screw 58028760
15 46104 Self-Adjusting Blade Holder 100 56528756
16 45762 Upper Lateral Blade Guide 56327723
17 46099 Leaf Spring 2F 56328757
18 45767 Short Intermediate Strip 56127724
19 46089 XL Intermediate Strip Th.3 56128716
20 45802 Lower Blade Guide 56327169
21 45801 Nut M20x1.5 UNI 588 8G 31231184
22 45800 Super Washer 20 DIN 6796 ZNT 31421060
23 46105 Stud Bolt M20x1.5 - 10K 58027318
24 46106 Short Stud Bolt M20x1.5 - 10K 58028070
25 46100 GOLD bar m 1.68 56328903
26 46101 GOLD bar m 1.82 56328904
27 46102 GOLD bar m 2.12 56328905
28 45036 Rivet TC 5.3x14 33125314
29 46107 XL Blade Section Th= 2.5 58028096
30 46111 XL Reg. Blade M 1.68 (22 sections) 58028911
31 46110 XL Reg. Blade M 1.82 (24 sections) 58028910
32 46112 XL Reg. Blade M 2.12 (28 sections) 58028912
33 46113 Gold Tooth C.pt 59028930
34 45783 Gold Tooth C.pt 59028932
35 46088 XL Comb Head 52428706
36 46115 Tooth 59028934
37 46096b XL Wear Strip 1.68 56328731
38 46097 XL Wear Strip 1.82 56328732
39 46098 XL Wear Strip 2.12 56328733
40 46090 XL Comb Strip 1.68 56328700
41 46091 XL Comb Strip 1.82 56328714
42 46092 XL Comb Strip 2.12 56328703
43 46108 TSVEI Screw M10x1.25x14 58028198
44 45781 Screw TSV 90° EI M8x1x12 12K 31134060
45 45790 TE Screw M10x1.25x16 10K 31113098
46 45786 TE Screw M8x1x15 UNI 5740 10K 31113092
47 45787 Spring 58027286
48 46198 Belt B102 36220021
49 4293 Rig. Blade XL M 2.42 (32 sections) 58028914
50 46296 Blade Section Head 52428729
