Spare Parts for BCS Laser-EL Series Cutter Bar with Technical Exploded Views

star star star star star_border
Aftermarket
46195

Comprehensive selection of spare parts for BCS Laser-EL cutter bars. Access technical exploded diagrams to easily find fingers, blade sections, and cutting unit components.

BCS Barra Laser-EL : 46195
Hurry! only 15 items left in stock.
€2.50
Tax included
COUPON
- € 0,05
Final price: € 2,45
Quantity

High availability
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Original Spare Parts for BCS Mower - Laser-EL Bar Series

Complete list of original components for the maintenance and restoration of BCS Laser-EL series cutter bars with Goldfinger system. Each part is made with certified materials to ensure precision and maximum cutting efficiency.

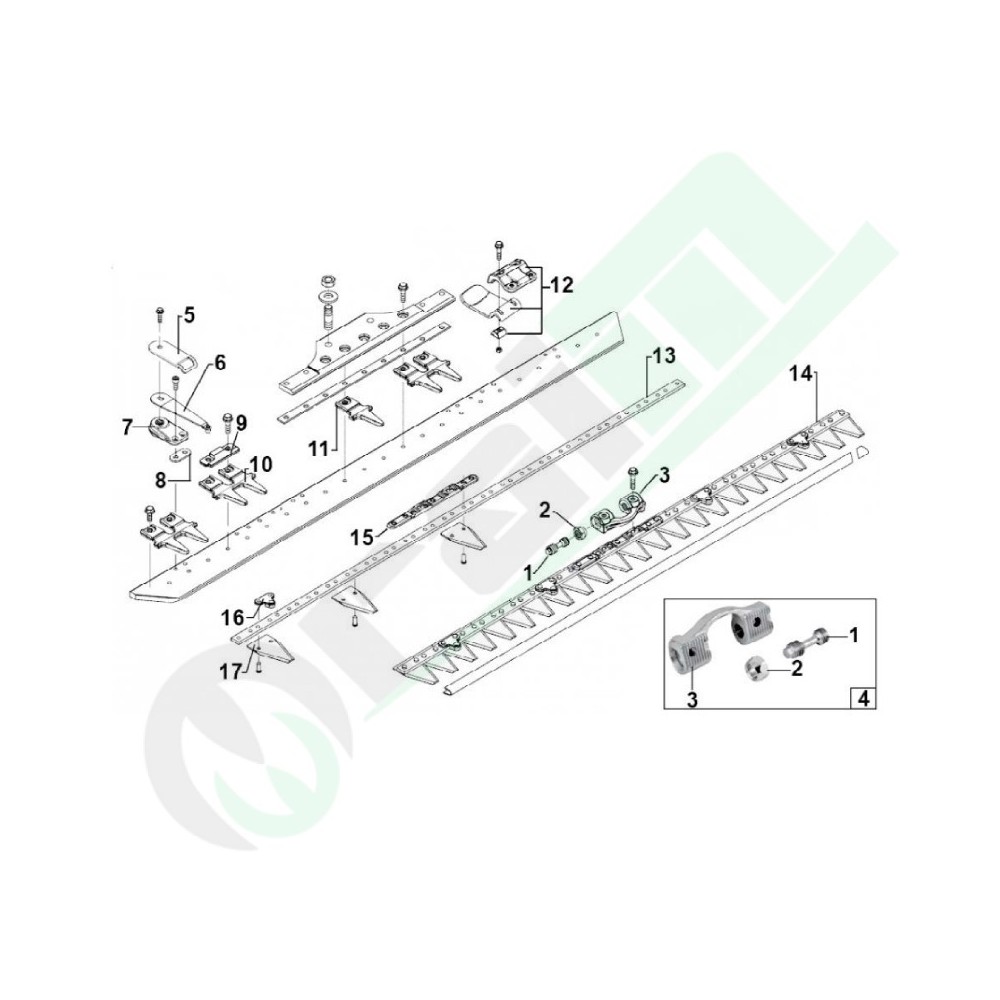

Detailed Components Table
Fig. Code Technical Description Original Ref.
1 46196 Blade Attachment Screw M16x43 58058662
2 46195 Conical Nut M16x1.5 58058661
3 46194 Blade Attachment New Type (2011) 52158700Z
4 46201 Blade Attachment Kit New Type (2011) 59258753
5 46289 Limiting Blade Presser for Goldfinger Spring 563587760
6 46286 Goldfinger Blade Presser Spring 59058764D - 59058601T
7 46288 Goldfinger Spring Support 59258715
8 46287 Spacer Plate for Goldfinger Spring 56158745Z
9 46290 Goldfinger Spring Guide 56358743Z
10 46279 Double Tooth (Hole Ø 8.5mm) 52458713T
11 46278 Single Tooth (Hole Ø 8.5mm) 52458714T
12 46280 Adjustable Upper Slide Kit 59258743
13 46170 Drilled Bar L= 1.15 m (23 sections) 56148910
13 46171 Drilled Bar L= 1.35 m (27 sections) 56148907
13 46275 Drilled Bar L= 1.55 m (31 sections) 56155052
13 46276 Drilled Bar L= 1.75 m (35 sections) 56155080
14 46281 Central Attachment Blade L= 1.15 m (23 sections) 59058770T
14 46282 Central Attachment Blade L= 1.35 m (27 sections) 59058771T
14 46283 Central Attachment Blade L= 1.55 m (31 sections) 59058772T
14 46284 Central Attachment Blade L= 1.75 m (35 sections) 59058773T
15 46277 Blade Attachment Head 56358708T - 56358708Z
16 46285 Goldfinger Spring Attachment Plate 52458678
17 46211 Under-serrated Blade Section (2 holes Ø 6.5) 56358716
