Spare Parts for BCS 622 Series Motor Mower with Technical Exploded Views

star star star star star_border
BCS
45210

Comprehensive selection of spare parts for the classic BCS 622 motor mower. Access technical exploded diagrams to find transmission, engine, and cutting unit components.

BCS Serie 662 : 45210
Hurry! only 2 items left in stock.
€45.00
Tax included
COUPON
- € 0,90
Final price: € 44,10
Quantity

Last 2 items
Add to Compare
Add to Wishlist
Security Policy
Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

Shipping Policy
Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

Secure Payments
Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Original and Comparative Spare Parts for BCS 622 Series Mower

Complete list of original and comparative components for the maintenance of BCS 622 Series mowers. Each spare part is selected to ensure maximum compatibility and restoration of the machine's original performance.

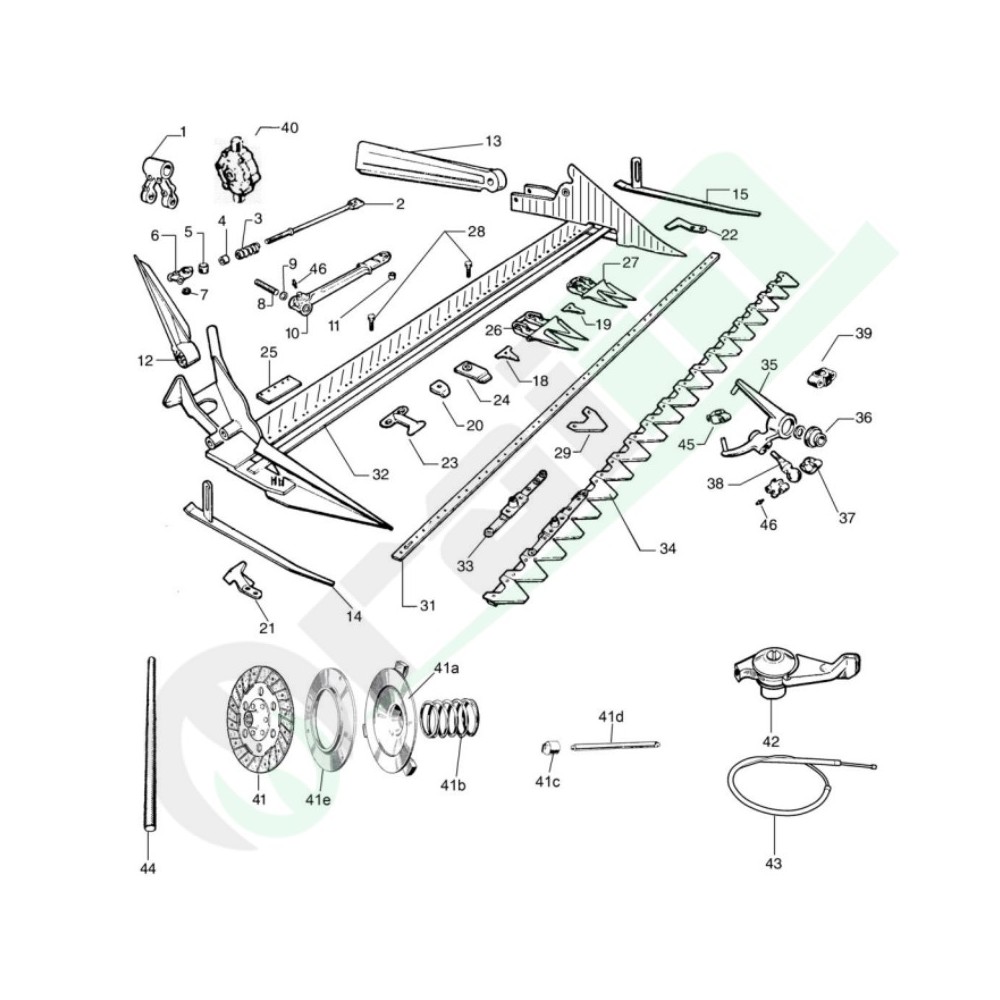

Detailed Components Table
Fig. Code Technical Description Original Ref.
1 45210 Oscillating Crank 523028155
2 45021 Connecting Rod 590027071
3 45023 Small Rod Spring 580024303
4 45017 Small Rod Spacer 561023945
5 45022 Connecting Rod Block 561025124
6 45272 Connecting Rod Head 590028176
7 45018 Rubber Ring for Connecting Rod 551206843
8 45024 Connecting Rod Pin 562025144
9 45037 Wear Plate 563028561
10 45019 Nylon Connecting Rod 592900254
11 45029 Silentblock 14x30x25x28 300101406
12 45032 Right Swath Board 592206554
13 45033 Left Swath Board 592206576
14 45030 Right Skid (Sole) 590028972
15 45031 Left Skid (Sole) 523028483
16 45027 Right Semi-close Shoe Plate 523028472
17 45028 Left Semi-close Shoe Plate 523028483
18 45002 Semi-close Tooth Plate 580024771
18 45640 Reaper-binder Tooth Plate 580276303
19 45003 Close Tooth Plate 580023555
20 45006 Strip Presser 523028284
21 45013 Right Blade Presser 523028251
22 45014 Left Blade Presser 561028296
23 45015 Clamp-type Blade Presser 523028240
24 45016 Simple Blade Presser 523028236
25 45569 Rear Blade Presser 563206851
26 45004 Double Semi-close Tooth 59027624
26 45643 Normal Reaper-binder Double Tooth 590276260
27 45005 Double Close Tooth 590276223
28 45007 Teeth Screws 10x25 311122195
28 45008 Teeth Screws 10x30 311122114
29 45576 Smooth Blade Section 580029866
29 45001 Serrated Blade Section 580024664
30 45036 Rivet Ø 5.2x14 mm (2kg) 33112530
30 45035 Rivet Ø 5.2x18 mm (2kg) 33112531
30 45034 Rivet Ø 5.2x20 mm (2kg) 33112532
30 45111 Rivet Ø 5.2x25 mm (2kg) 331125333
31 45644 Drilled Bar 13 sections 580207062
31 45044 Drilled Bar 15 sections 580207073
31 45045 Drilled Bar 17 sections 580207084
31 45046 Drilled Bar 19 sections 580024653
31 45649 Drilled Bar 21 sections 580207095
32 45047 Wear Bar 17 Sections 56320703
32 45048 Wear Bar 19 Sections 563027091
32 45652 Wear Bar 21 Sections 563275703
33 45009 Blade Head for Sections 523204942
33 45653 Blade Head for Reaper-binder 523404206
34 45010 Blade 15 Serrated Sections (1.15 m) 590207144
34 45011 Blade 17 Serrated Sections (1.30 m) 590207166
34 45655 Blade 17 Serrated Sections for Reaper-binder 590404150
34 45935 Blade 17 Reversed Sections (Anti-clogging) 590275344
34 45012 Blade 19 Serrated Sections (1.45 m) 590206888
34 45931 Blade 19 Reversed Sections (Anti-clogging) 590275254
34 45571 Blade 21 Serrated Sections (1.60 m) 590207180
34 45936 Blade 21 Reversed Sections (Anti-clogging) 590275303
35 45142 Oscillating Box with Bushings 592900593
36 45159 Oscillating Box Oil Seal 551029080
37 45026 Bronze Half-shells Pair 593030071
38 45025 Ball with Complete Cone
39 45575 Roller Block 52202885
40 45656 Roller Ø 3x15.8 mm 379213004
40 46119 Complete Oscillating Head 590029694
41 15328 Clutch Disc 590024260
41a 46209 Complete Disc 590201883
41b 46210 Spring 580023065
41c 45657 Clutch Cap 590023114
41d 45658 Rod 561200076
41e 46212 Clutch Ring 56102305
41 45659 Rubber Ring 551025812
42 45038 Nylon Throttle Lever 580025386
43 45041 Clutch Cable with Housing 580203315
43 45042 Left Brake Cable 580204063
43 45043 Right Brake Cable 580204041
43 45040 Throttle Cable (L=780 mm) with Housing 580203470
43 45660 Throttle Cable (L=1000 mm) with Housing 580025806
43 45661 Inner Cable Only for Item 45040
44 45662 BCS Stick L= 63 cm 58002463 / 580025264
45 46200 Oscillating Box Sleeve 59220174
46 20071 Grease Nipple 10x1.5 mm
