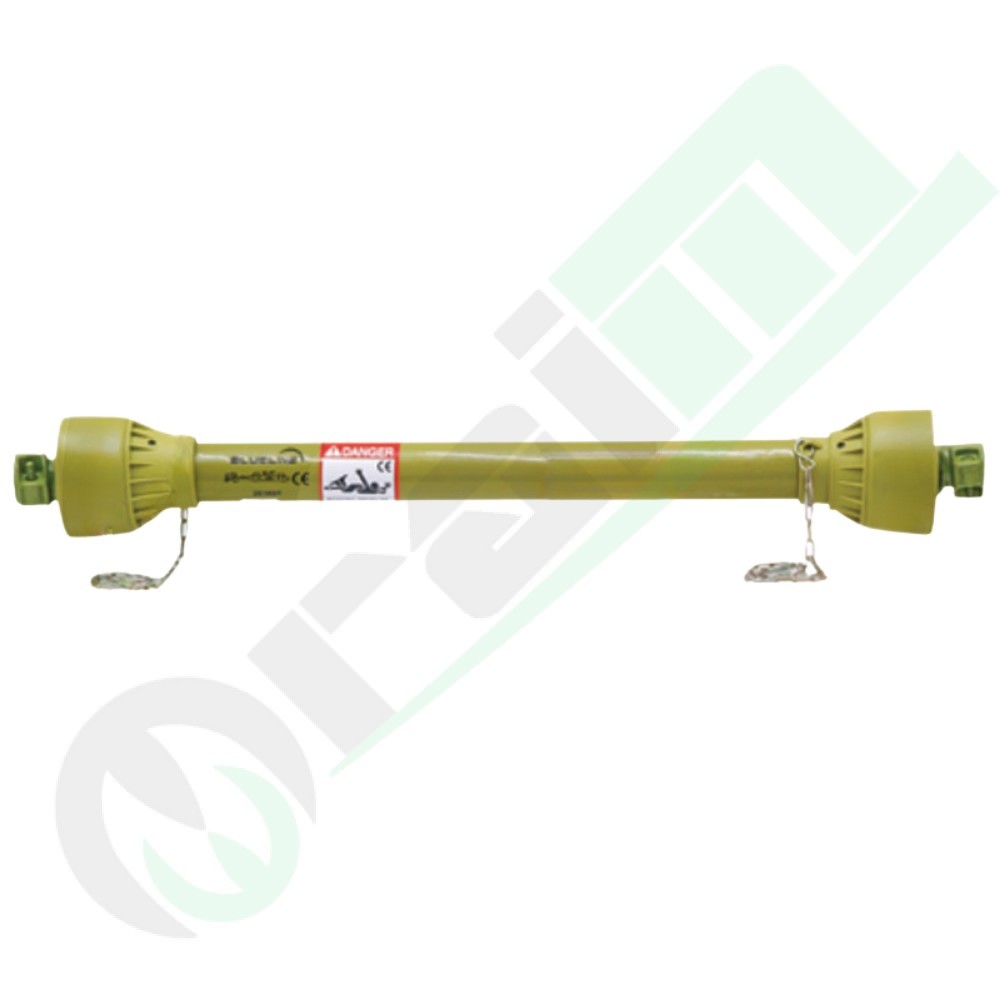

BLUELINE 3770560B578 PTO Shaft Series B5 560mm

3770560B578 BLUELINE PTO Drive Shaft Series B5 Lz 560mm for Tractors up to 47HP

Blueline
3770560B578

BLUELINE B5 Series PTO Drive Shaft - L 560mm (Code 3770560B578)

Hurry! only 3 items left in stock.
€134.90
Tax included
Quantity

Ready for delivery
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

The BLUELINE B5 Series drive shaft is a high-duty power transmission component engineered for professional agricultural machinery requiring substantial and consistent power delivery. With large 30.2x79.4 mm cross kits, this series provides a high nominal torque of 620 Nm at 540 rpm, making it perfect for heavy-duty implements and intensive field operations.

Technical Specifications

Part Number: 3770560B578

Series: B5 (Standard Version)

Total Length (Lz): 560 mm

Profile A (Tractor Side): 1 3/8" 6 Splines

Profile B (Implement Side): 1 3/8" 6 Splines

Cross Kit Dim. (Profile A/B): 30.2 x 79.4 mm

Locking System: Push-button / Push-button (P7/P8 Coupling)

Tube Profile: Italian System

Performance Data

Power at 540 rpm: Up to 47 HP (35 kW)

Power at 1000 rpm: Up to 75 HP (55 kW)

Nominal Torque (540 rpm): 620 Nm

Nominal Torque (1000 rpm): 525 Nm

Operating instructions are included. Given the high power rating of the B5 series, it is essential to ensure all safety guards are intact and that the cross kits are lubricated every 8 working hours.
