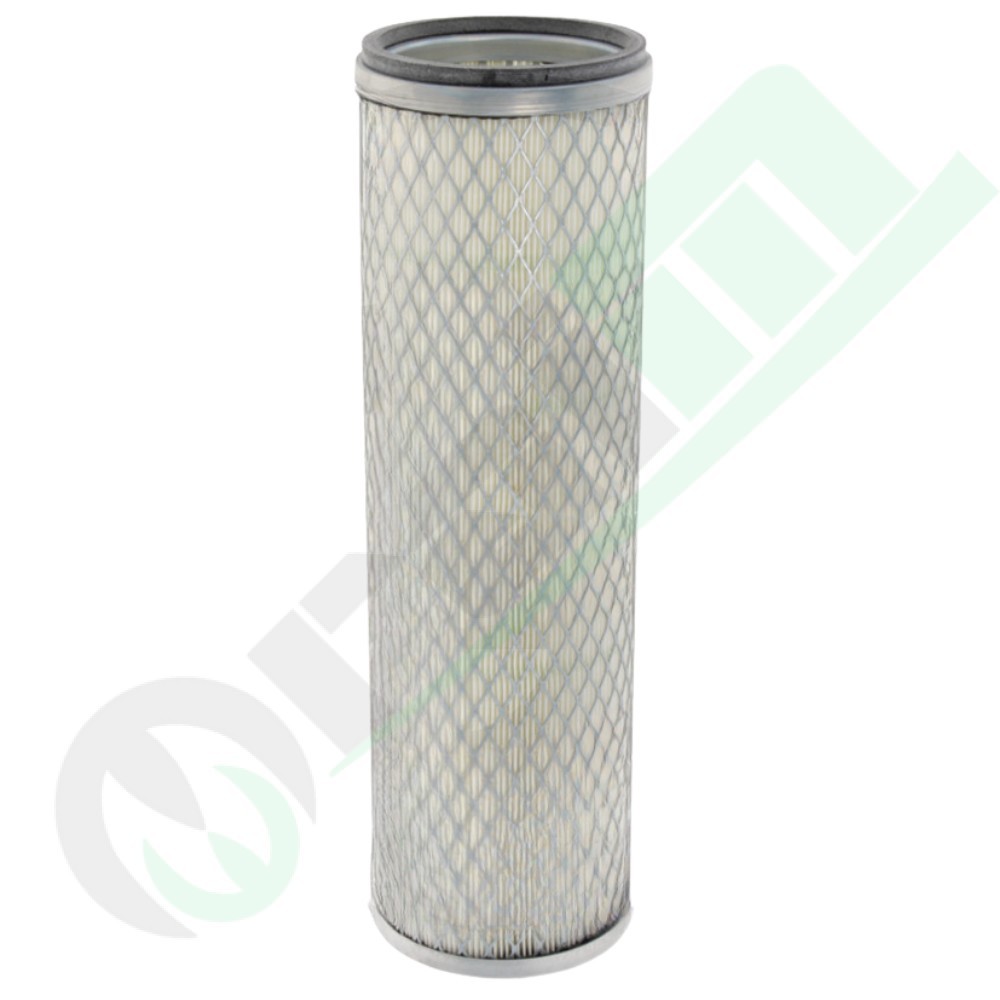

Fleetguard Internal Air Filter AF4589 | 117 mm OD | For SDF FENDT NEW HOLLAND Tractors

The Fleetguard AF4589 inner air filter is an essential safety element for the air filtration system of numerous agricultural and industrial machines. It ensures engine protection from contaminants in case the outer filter fails or is damaged. This replacement part is compatible with various original SDF and other brand codes, and is applied to a wide range of machines from the DEUTZ-FAHR, FENDT, SAME, and NEW HOLLAND groups, among others.

Technical Data and Dimensions

• Fleetguard Code: AF4589.
• Hifi Code: SA16138.
• Type: Safety, Round.
• Outer Diameter (A): 117.35 mm.
• Height (H): 388.37 mm.
• Inner Diameter (C): 89.15 mm.
• Inner Diameter (B / A1): 16.89 mm.

Cross References (Orig. Ref. and Cross Reference)

• AF0458900
• AF4589
• 72257812
• 2.4249.380.2
• H312200090110
• 1930790
• 71416994
• 1426450M91
• 72215234

Compatible Machine Models (Brand - Series - Model)

• DEUTZ-FAHR - Actor / AgroStar / Agrotrac / DX / Intrac / M / Powerliner Series:
  • Actor 5510, 5520
  • AgroStar 6.61
  • Agrotrac 110, 125, 130, 150
  • DX 140, 145, 160
  • DX 6.50
  • DX 7.10
  • Intrac 6.30, 6.60
  • M 1202 Super
  • M 2480, 2580, 2680, 2685, 2780, 2780 H
  • Powerliner 4030, 4035
• FENDT - Farmer 300 / Favorit 500 / Xylon Series:
  • Farmer 312 (Typ 199, Typ 312)
  • Favorit 512 (Typ 512), 514 (Typ 514)
  • Xylon 520, 522, 524
• SAME - Antares / Galaxi / Hercules / Laser / Rubin / Silver Series:
  • Antares 130, Antares II 130
  • Galaxi 170
  • Hercules 160
  • Laser 110, 125, 130, 150
  • Rubin 120, 135, 150
  • Silver 110, 115, 130
• LAMBORGHINI - 1000 / Champion / Formula / Premium / R / R5 Series:
  • 1356, 1506, 1706
  • Champion 120, 135, 150
  • Formula 115, 135
  • Premium 1100, 1300
  • R 1106, 1306, 1506
  • R5.115, R5.130, R5.150
• NEW HOLLAND - VL / VM Series:
  • VL600, VL610, VL620, VL630, VL640, VL660
  • VL6040, VL6050, VL6060, VL6070, VL6080, VL6090
  • VM460, VM4090
• FIAT / FIAT ALLIS:
  • F100, F130, F140 (Winner Series)
  • FR 130 (FIAT ALLIS)
• HURLIMANN - H 6115 → H 6190 / H 6136 → H 6170 Series:
  • H-6135
  • H-6170
• JCB - Fastrac / 20 Series / 30 Series:
  • Fastrac 125, 130, 145, 150
  • 5020
  • 6030
• LANDINI - 10000 → 19500 / Legend Series:
  • 14500
  • Legend 130, 145, 165
• LAVERDA - 3000 Series:
  • 3550, 3560, 3600, 3650, 3700, 3750
• MASSEY FERGUSON:
  • 1134
