Electric Winch 12V DC
Description:

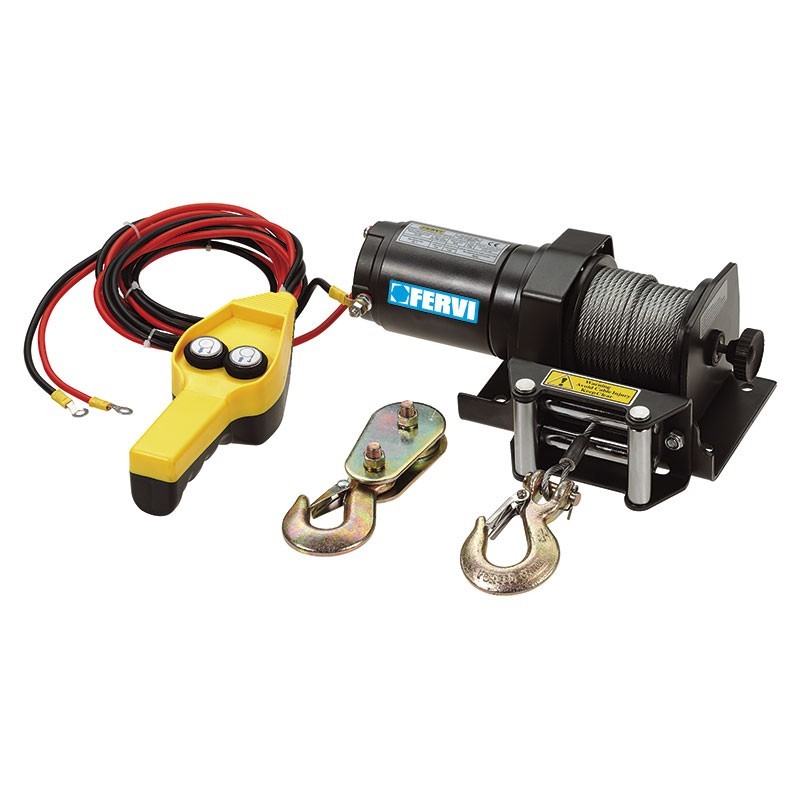

12V electric winch with permanent magnet motor, designed for horizontal pulling. Equipped with a resistant metal frame, hook with pulley for double pulling and a robust cable with anti-unwinding device and cable guide, it guarantees safety and reliability in pulling operations. Not suitable for vertical lifting.
Features:
Permanent magnet motor for consistent performance
Metal frame for greater resistance
Hook with pulley for double pull
Cable with anti-unwinding device and cable guide
Exclusive use for horizontal pull
Technical Specifications:
Horizontal nominal pull: 450 / 900 kg
Speed: 1.3 - 3.2 m/min
Motor: 12 V, 0.7 kW (0.9 hp)
Gear reduction ratio: 153:1
Cable dimensions: Ø 4 mm x 15 m
Drum dimensions: Ø 31.5 x 73 mm
Overall dimensions: 285 x 105 x 105 mm
Net weight: 6.7 kg
Packaging dimensions: 330 x 230 x 180 mm
Gross weight: 8.60 kg
EAN code: 8012667206529
