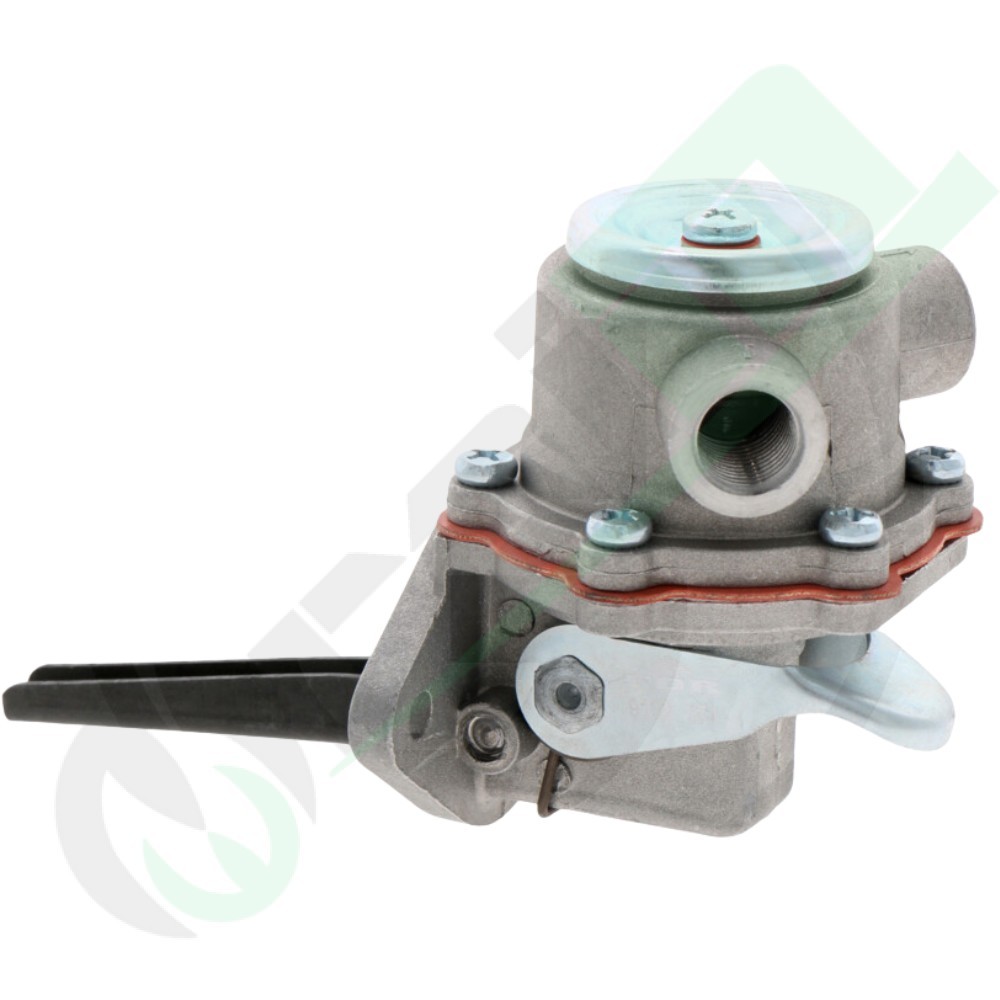

73321345 Fuel Feed Pump for Case IH Tractors

73321345 Fuel Feed Pump for Case IH Tractors

Product Code: 73321345

Original References: 73321345, 3132697R92, 3132697R91, B503521

Features: This fuel feed pump is an essential component of the engine's fuel system, responsible for drawing fuel from the tank and pumping it under pressure for subsequent priming and injection. With a two-hole design for mounting, a hole spacing of 53 mm, and a measurement of 61 mm from the flange to the end of the lever, it is designed for a precise and secure installation. It ensures a constant and reliable fuel flow, which is fundamental for proper engine operation and performance.

Dimensions:

Number of Holes: 2

Hole Spacing: 53 mm

Flange to End of Lever: 61 mm

Main Applications: This fuel feed pump is a vital replacement part for numerous Case IH tractor models, especially those equipped with various Case IH D-series engines.

Compatible with the following CASE IH models:

Britische Baureihe: 674 Case IH Engine: Case IH D-155, D-179, D-206, D-239, D-246, D-268, D-310, DT-239, DT-358 A Series: 2400, 2500 A-Familie Series: 454, 574 B-Familie Series: 743 XL, 745 S, 745 XL, 844 XL, 845 XL, 856, 856 XL C-Familie Series: 955, 955 XL, 956, 956 XL, 1055, 1055 XL, 1056, 1056 XL D-Familie Series: 1255, 1255 XL, 1455, 1455 XL
