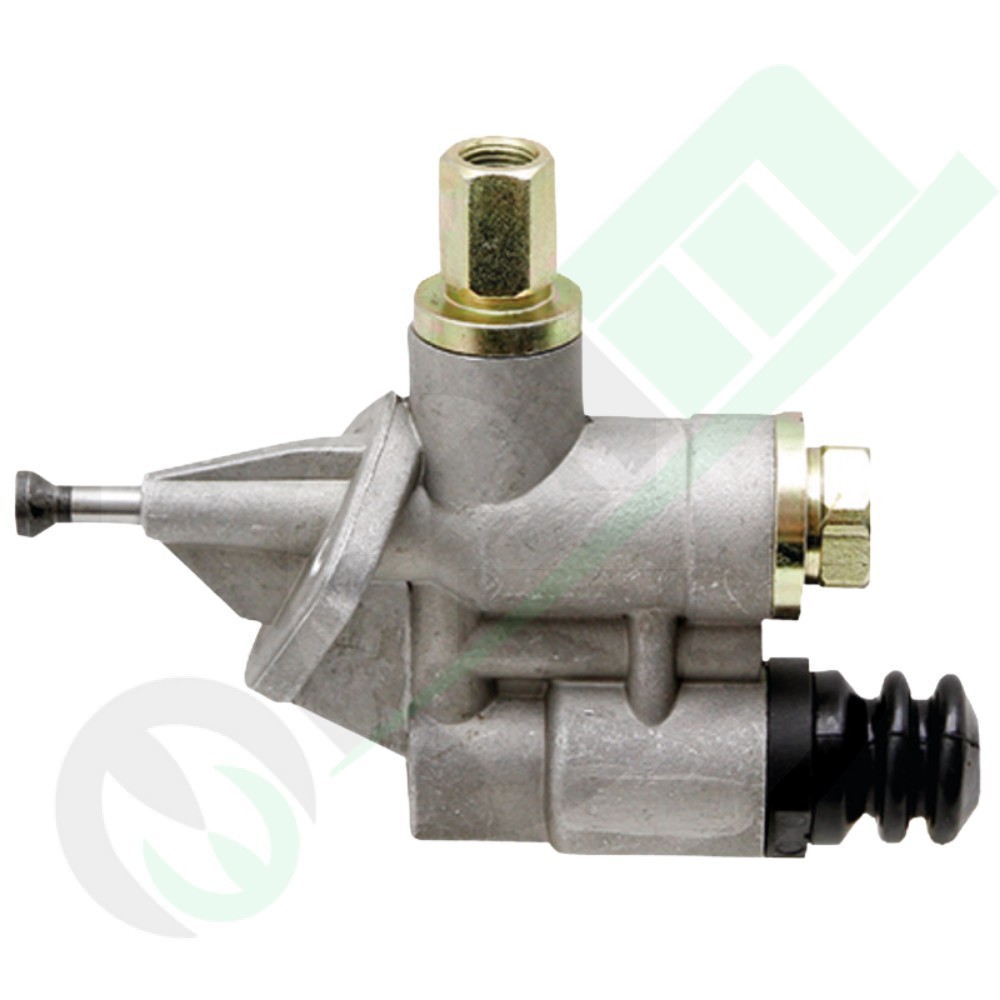

87473337 Fuel Feed Pump for Case IH Tractors

87473337 Fuel Feed Pump for Case IH Tractors

Product Code: 87473337

Original References: I87473337, 87473337, J936318, J917998

Features: This fuel feed pump is an essential component of the engine's fuel system, responsible for drawing fuel from the tank and sending it under pressure to the injection system. It features a two-hole design with a hole spacing of 45 mm and a measurement of 56 mm from the flange to the end of the lever, ensuring a precise seal and secure installation. The 1/4" - 18 NPTF threaded connection makes it compatible with standard fuel lines.

Dimensions:

Number of Holes: 2

Hole Spacing: 45 mm

Distance from Flange to End of Lever: 56 mm

Thread: 1/4" - 18 NPTF

Main Applications: This fuel feed pump is a vital replacement part for various models of Case IH tractors and construction machines, particularly those equipped with Cummins engines.

Compatible with the following CASE IH models:

Cummins Engine:

Cummins 6T-830

Cummins 6TA-830

Cummins 4-390

Cummins 6-590

Cummins 6T-590

Cummins 6TA-590

96 Series: 1896, 2096 1000 Series: 1840 AF (Axial-Flow) Series: 1660, 1666, 1670, 1680, 2166 Magnum Series: Magnum 7110, 7120, 7130, 7140, 7150, 7210, 7220, 7230, 7240, 7250 Steiger Series: Steiger 9110 (7/89-8/90), 9110 (12/86-6/89), 9130 (7/89-8/90), 9130 (12/86-6/89), 9210 (9/90-5/95), 9230 (9/90-5/95), 9240 (10/90-10/94), 9310, 9330 XT Series: 85XT, 90XT, 95XT
