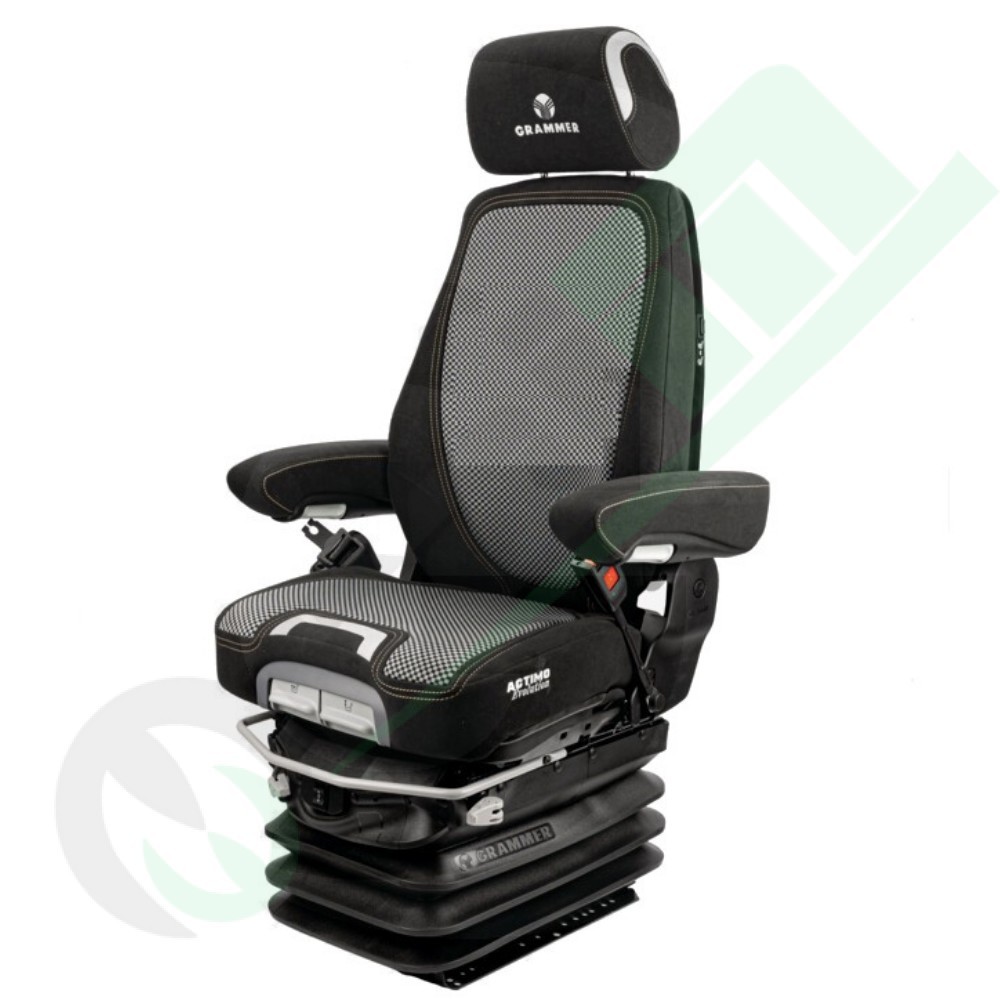

Actimo Evolution 24V Seat for Excavator

Product Description

The **Grammer Actimo Evolution** seat is designed to provide maximum comfort and support for operators of large construction machines. With a low-frequency pneumatic suspension system and fully automatic active weight adjustment, it ensures a relaxed ride and optimal back protection, even during long working days.

Technical Specifications

• Model: MSG95EL/722
• Suspension Type: Pneumatic with low-frequency suspension
• Working Load: Min. 50 kg - Max. 130 kg (with automatic weight adjustment)
• Suspension Travel: 100 mm
• Height Adjustment: 80 mm (continuous)
• Longitudinal Adjustment: 210 mm (with lockable horizontal suspension)
• Backrest Tilt Adjustment: Included
• Power Supply Voltage: 24 V
• Upholstery Material: Fabric
• Upholstery Color: Black
• Overall Dimensions: Width 490 mm, Depth 706 mm, Height 1089 mm

Advantages and Features

• APS (Automatic Positioning System): Automatic positioning system for tailored comfort.
• Active Climate Control: Fans in the padding for effective thermal management.
• Optimal Support: Ergonomic padding and lateral support for a more relaxed ride.
• Safety: Includes an operator presence switch and a seat belt.

Package Contents

• Complete seat
• Adjustable-tilt armrests (80 mm x 380 mm)
• Headrest
• Backrest extension
• Seat belt
• Operator presence switch
• Seat heating kit
• Storage pocket
