Tractor Seat Compatible with Case IH - Technical Specifications
Compatibility: Case IH.
Damping: Mechanical, with a 100 mm spring travel for maximum comfort.
Fabric Material: PVC, durable and easy to maintain.
Seat Switch: None.
Gauge (mm): 270.
Seat Width (mm): 480, suitable for comfortable sitting.
Joystick Console: Not present.
Lateral Suspension: Not available.
Seat Belt System: Optional.
Seat Heating: Not available.
Rotation: Not provided.
Length (mm): 550.
Height (mm): 540.
Additional Features:
Distance between Guides: 269 mm, compatible with Case IH tractors.
Adjustments:
Console with Tilting: 5 positions for personalized comfort.
Manual Weight Adjustment: 50 to 120 kg.
Fore/aft Adjustment: Up to 200 mm to suit the operator.
General Description:

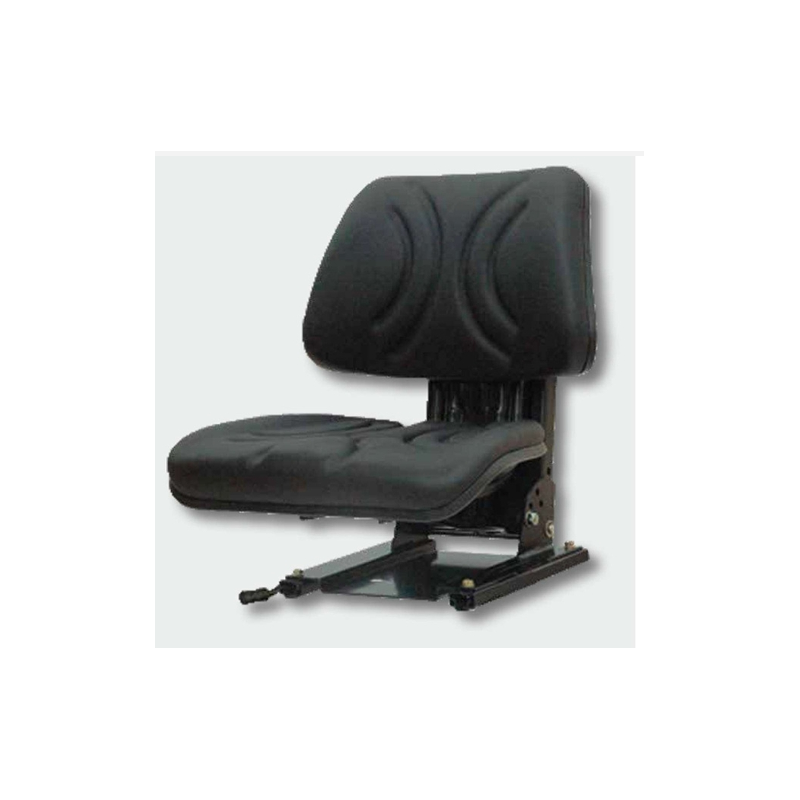

This mechanical seat for Case IH tractors offers a robust construction and versatile adjustments, including five-position seat tilt, to ensure long-lasting comfort during use. The suspension system with shock absorbers helps absorb ground vibrations. Weight adjustment from 50 to 120 kg and fore/aft adjustment up to 200 mm offers complete customization for the operator. The optional presence of the seat belt increases protection.
