Fervi 0657 Parallel Lathe

Fervi 0657 Parallel Lathe

Fervi
0657

Fervi 0657 Parallel Lathe

Out of Stock
€3,689.98
Tax included
Quantity

Processing in approximately 3-4 working days
  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

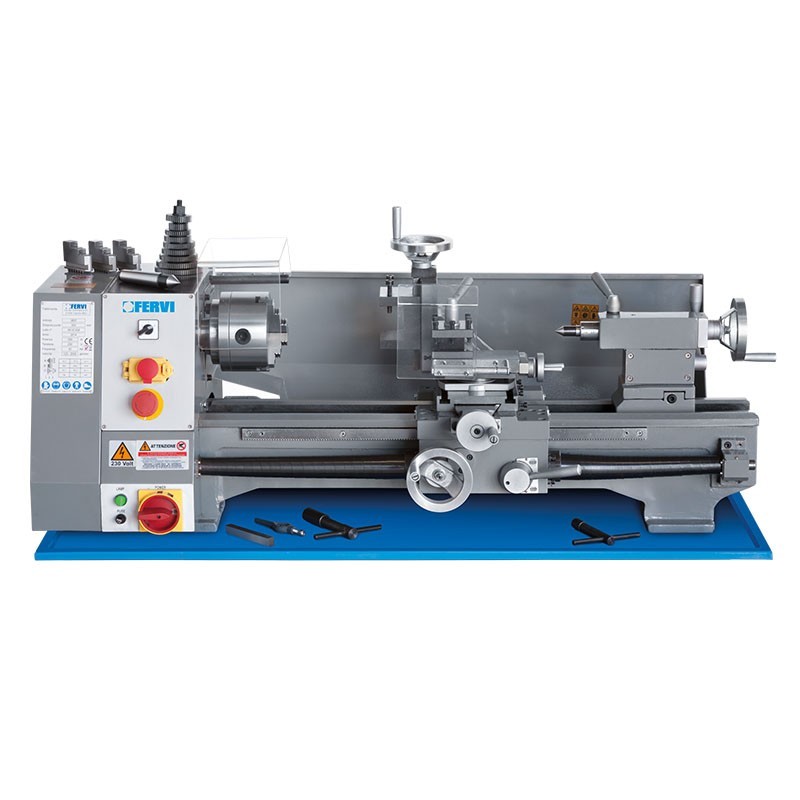

Fervi 0657 Parallel Lathe with Milling Device, Belt Drive Speed Change.

  • Center Height: 125 mm
  • Max Diameter on Bed: 250 mm
  • Max Diameter on Carriage: 150 mm
  • Tool Height: 12 mm
  • Distance Between Centers: 550 mm
  • Bar Passage: 20 mm
  • Bar Passage Taper: CM 3
  • Tailstock Taper: CM 2
  • Spindle Speed: (6) 125 ÷ 2000 rpm
  • Longitudinal Feeds: 0.1 - 0.2 mm / revolution
  • Metric Threads: 0.4 ÷ 3.5 mm
  • Inch Threads: 18 ÷ 44 TPI
  • Motor: 230 V 50 Hz 0.55 kW
  • Dimensions: 1120 x 480 x 460h mm
  • Net Weight: 145 kg
  • Packaging Dimensions: 1200x560x610 h mm
  • Gross Weight: 160.00 kg
  • EAN Code: 8012667226329

Included Accessories:

  • Self-centering Chuck 3+3 Ø 125mm
  • Fixed Tailstock Center CM 2
  • Fixed Tailstock Center CM 3
  • Lead Screw Protection
  • Turret Protection
  • Chuck Protection
  • Rear Splash Guard
  • Fixed Tool Post for 12 mm Tools
  • Quick-lock Tailstock Carriage
: 0657
