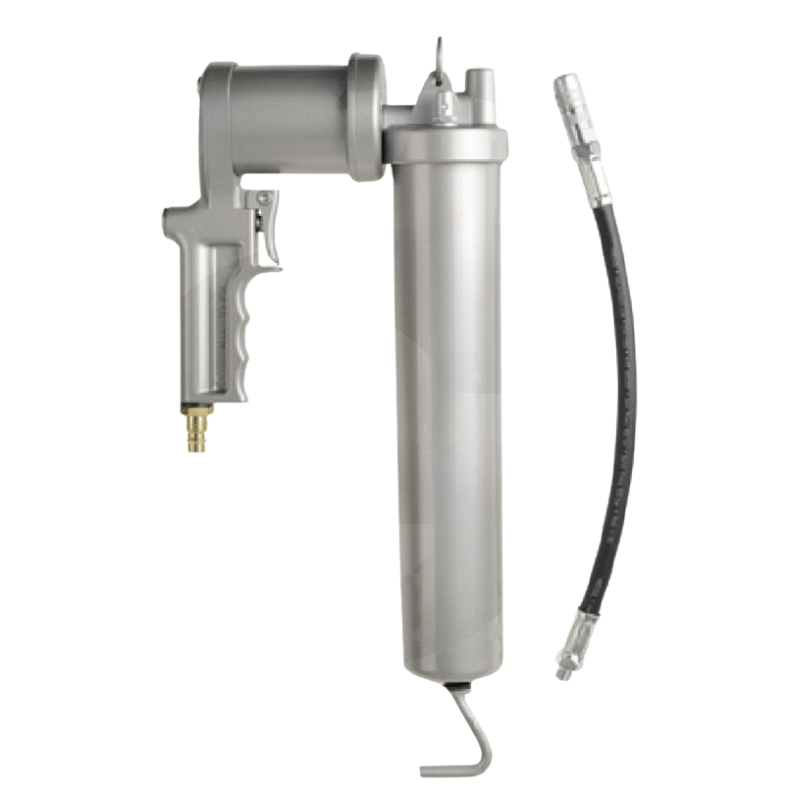

Pressol Pressure Grease Gun DLFP 400gr

Pressol Pressure Grease Gun DLFP

Flow rate (ccm): 0.8

Main features

✅ Threaded connection: M10 x 1

✅ Operating pressure: 6 bar

✅ Max. pressure (bar): 8

✅ Version:

• Pressure-side grease gun connection: M10 x 1

• Filling nipple and vent valve: M10 x 1

• Filling volume: 500 cm³

• Filling options: 400g cartridge, DIN 1284, grease gun or loose grease

Safety and protection

✔ Overpressure protection system, with a burst pressure of the head at 1200 bar

Sole and comfort

Not applicable

Certifications and resistances

Not specified

Technologies and materials

? Ratio: 50:1 for greater greasing efficiency

? Single-stroke grease supply, via piston spring

Areas of use

? Industrial workshops

? Maintenance of machinery requiring fast and precise greasing

Data

Pump piston diameter: 6 mm

Discharge volume / stroke: 0.8 cm³

Recommended air pressure: 6 bar

Min. air pressure: 2 bar

Max. air pressure: 8 bar

Compressed air connection: Rectus quick coupling, type 26

Pump pressure with compressed air at 8 bar: 400 bar

Burst pressure system: 850 bar

Push rod operation: via L-handle

Closure cap: loose

Tube wall thickness: 1.0 mm

Armored tube: M10 x 1a, 11 x 300 mm

Precision 4-jaw head, M10 x 1 f
