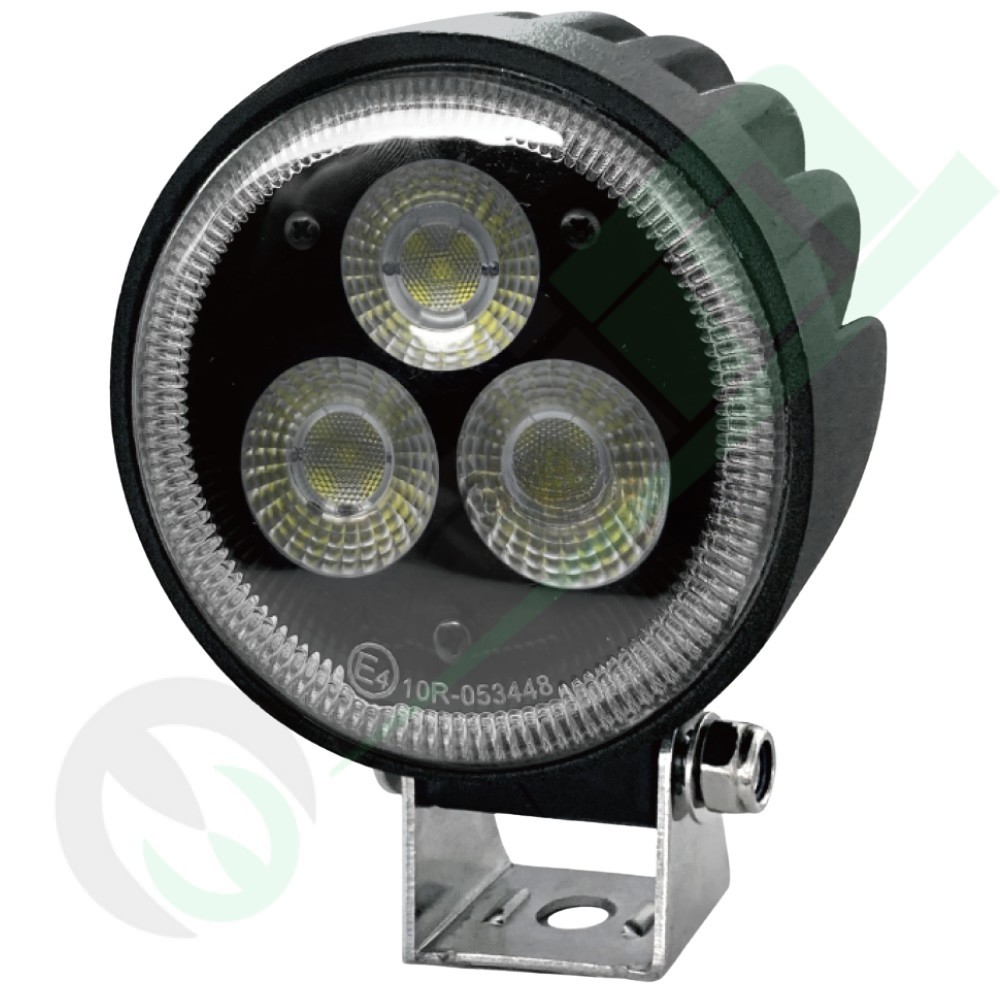

Universal LED Work Light 36222 | 45W | 3000 lm | IP69K | Ultra Wide Flood 90°

Universal LED work light featuring high power and wide coverage (Ultra Wide Flood). It ensures excellent luminous efficacy (3000 effective lm) with the highest waterproof rating (IP69K) and low electromagnetic interference (CISPR 25 Class 4), making it ideal for a wide range of agricultural and industrial vehicles.

Functional Specifications and Performance

• Power (Maximum): 45 Watts (15 x 3W LEDs).
• Effective Power Consumption: 28 Watts.
• Effective Lumens: 3000 lm.
• Raw Lumens: 4500 lm.
• Current Draw: 2.33 A at 12 V; 1.16 A at 24 V.
• Voltage: DC 10-30 V.
• Color Temperature: 6000K.
• Operating Temperature: -40 ℃ to +80 ℃.
• Beam Pattern: Ultra Wide Flood.
• Beam Angle: 90°.
• EMC: CISPR 25 Class 4.
• Waterproof Rating: IP69K.
• Warranty: 2 years.

Technical and Structural Data

• Part Number: 36222.
• Shape: Round.
• Dimensions (Ø x Depth): Ø85 x 76 mm.
• Length: 85 mm.
• Height: 126 mm (including bracket/mounting).
• Depth: 76 mm.
• Housing: Die-cast aluminum (black).
• Lens: Polycarbonate.
• Bezel Color: Black.
• Supplied with: External H11 plug.

Approvals and Compliance

• ECE-R10
• CE
• UKCA
• RoHS
• REACH
• EMC CISPR25
• IP69K

Adaptable OEM Codes
