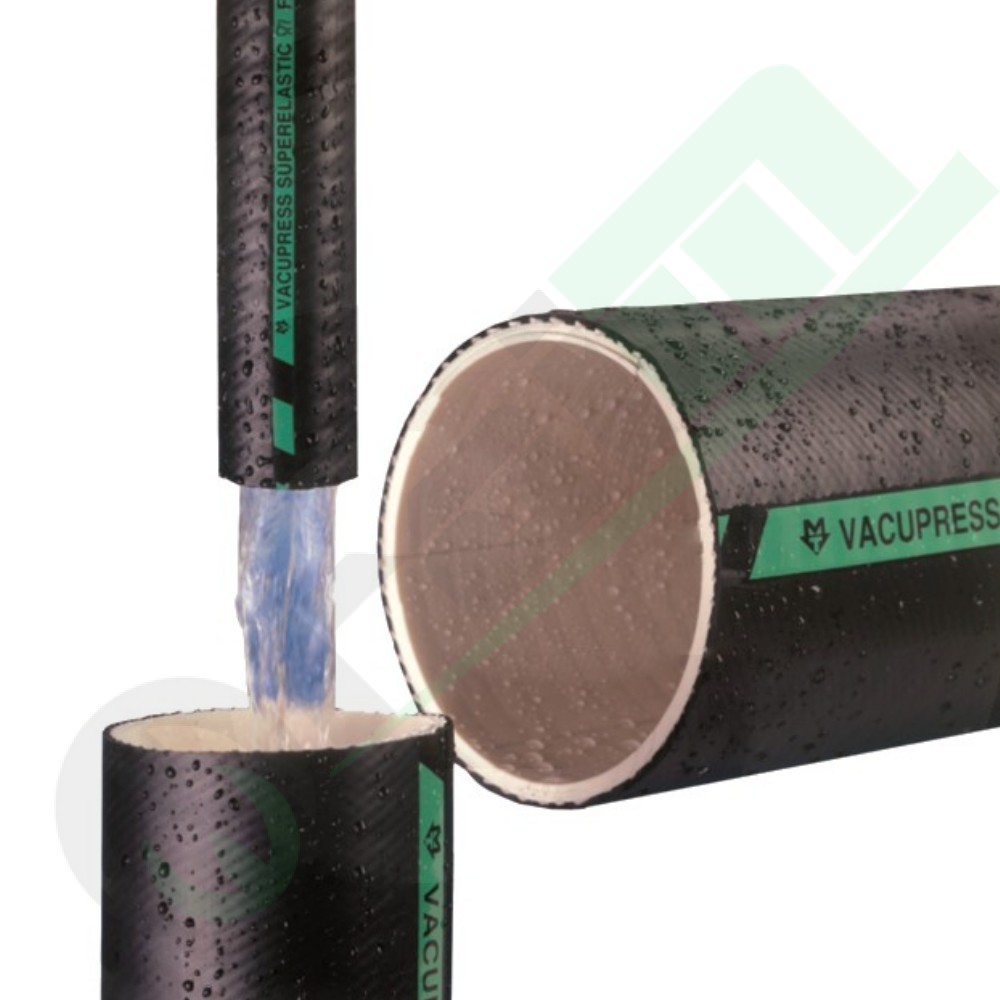

PVC Vacupress Superelastic Spiral Hose | Inner Diameter: 5" / 127mm

PVC Vacupress Superelastic Spiral Hose | Inner Diameter: 5" / 127mm - PRICE PER METER

The PVC Vacupress Superelastic Spiral Hose is a two-layer flexible hose designed for efficient suction and transfer of liquids, including food-grade ones. Thanks to its robust construction with an embedded galvanized steel spiral and polyester yarn reinforcement, it offers an excellent combination of flexibility and resistance, making it suitable for a wide range of applications.

Key Features:

• Dimensions:

  • Inner Diameter: 127 mm (5")

  • Outer Diameter: 145 mm

  • Wall Thickness: 9 mm

  • Wire Ø (Spiral): 2.5 mm

• Performance:

  • Operating Pressure: 5 bar

  • Burst Pressure: 21 bar

  • Vacuum (Depression): 0.9 bar

  • Bending Radius: 370 mm

• Material:

  • Two-layer food-grade PVC hose.

  • Inner galvanized steel spiral.

  • Polyester yarn reinforcement.

• Temperature Range: -25°C to +60°C.

• Food Grade Suitability: Yes, EU compliant (according to the declaration of conformity).

• Additional Ratings:

  • Smooth surface: ***** (Excellent)

  • Flexibility: ***** (Excellent)

  • Abrasion resistance: *** (Good)

  • Max compression resistance: *** (Good)

  • Ozone resistance: ** (Fair)

• Availability: Sold per meter (standard roll length 20 m).

• Hose Type: Spiral hose.

Ideal Usage:

This hose is particularly suitable for:

• Suction and transfer of food-grade liquids, thanks to its EU certification.

• Applications requiring strong resistance to both pressure and vacuum.

• Sectors needing a flexible and durable hose for a wide range of liquids.
