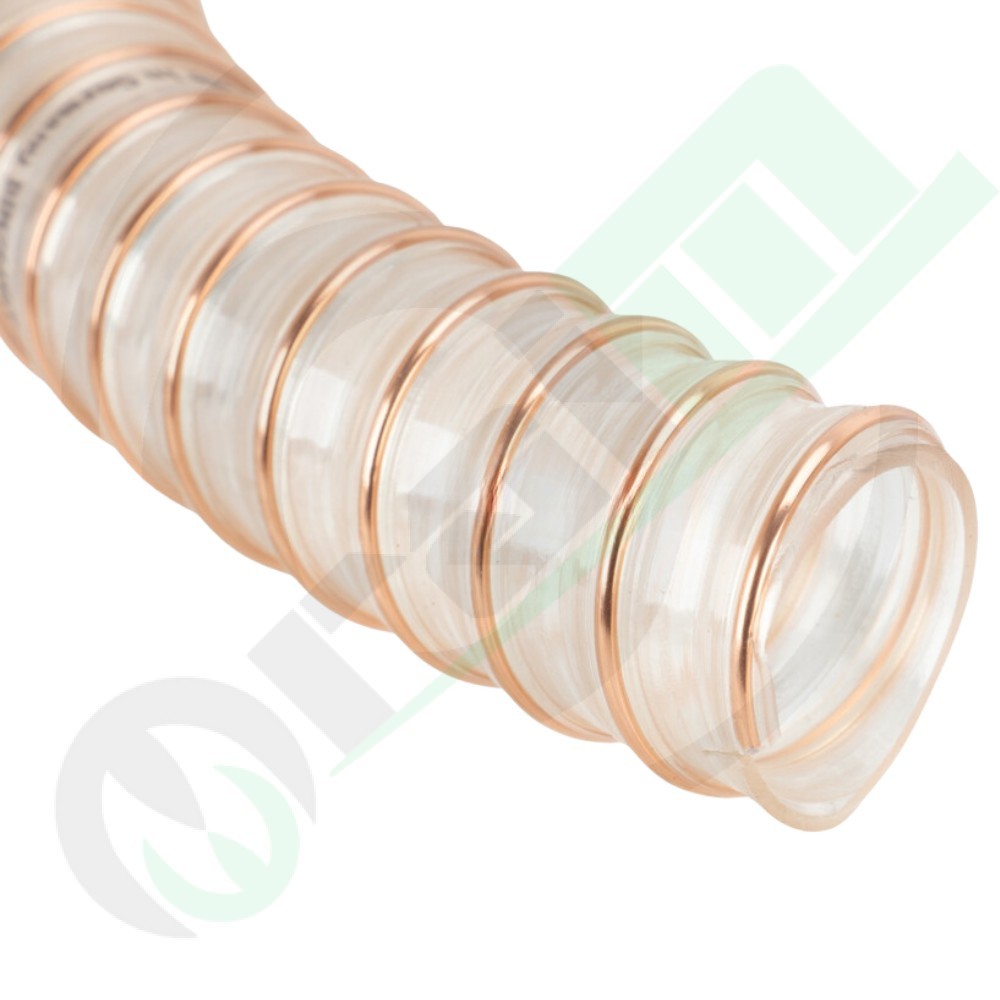

Antistatic Polyurethane Flexible Hose | Inner Diameter: 1 1/4" / 32mm

Antistatic Polyurethane Flexible Hose | Inner Diameter: 1 1/4" / 32mm - PRICE PER METER

This antistatic polyurethane (PU) spiral hose is a highly flexible and robust solution, designed for the suction and conveyance of abrasive materials in industrial environments. Its advanced technical characteristics and durable construction make it ideal for demanding applications, ensuring electrostatic discharge and excellent longevity.

Key Features:

• Dimensions:

  • Inner Diameter: 32 mm (1 1/4")

  • Outer Diameter: 40 mm

  • Wall Thickness: 1.4 mm (Note: although "approx. 1.5 mm" is mentioned in the structure, we will use the specific data of 1.4 mm for clarity).

  • Wire Thickness (Spiral): 1.5 mm

• Performance:

  • Max Operating Pressure: 3.56 bar

  • Vacuum (Depression): 0.86 bar

  • Bending Radius: 32 mm (extremely flexible for easy installation even in tight spaces)

  • Weight: 408.9 g/m (lightweight for better handling)

• Material:

  • Wall made of special premium polyurethane ester, known for its abrasion resistance and aging properties.

  • Reinforced with a spring steel wire firmly integrated into the wall, ensuring stability and collapse resistance.

• Temperature Range:

  • Standard: -40°C to +90°C.

  • For short periods: up to approx. +125°C.

• Additional Properties:

  • Antistatic: Crucial for preventing electrostatic charge build-up, enhancing safety in environments with explosive or flammable dusts.

  • Smooth interior and optimized flow profile to minimize pressure loss and ensure efficient material transfer.

  • Flexible and lightweight, easy to install and maneuver.

  • Excellent pressure and vacuum resistance.

  • High tensile and tear strength, ensuring a long operational life.

  • Good resistance to oil, gasoline, chemicals, UV rays, and ozone.

  • Kink-resistant: Maintains its shape even in tight bends, preventing kinks and flow interruptions.

• Availability: Sold per meter (standard roll length is 20 m).

• Food Grade Suitability: Not suitable for food use.

Usage:

This hose is particularly suitable for:

• Conveying highly abrasive solids like dust, chips, granules, and seeds in suction and delivery systems.

• Transporting gaseous and liquid media in various industrial contexts.

• Serving as a robust protective hose for cables or other delicate elements.
