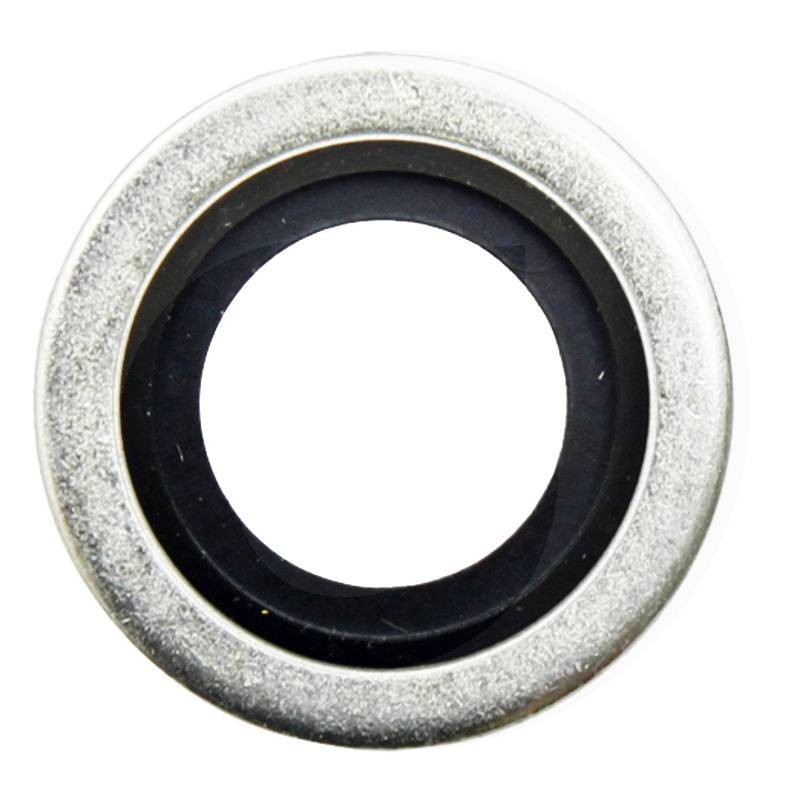

U-Seal Seal Ring (Washer) 1/8” 10.4x15.9x2 - 87000518

U-Seal Sealing Ring (Washer) 1/8” 10.4x15.9x2

Certification: ---

U-Seal or Usit rings are used in industries where high sealing is required or when there is high pressure and a secure seal must be guaranteed, for example in the process industry, in the food or pharmaceutical sectors. These rings are flat metal gaskets with a trapezoidal sealing cord made of internally vulcanized elastic rubber for static sealing of screwed joints and flanged connections

• Metal ring: steel, galvanized (material)

• Sealing cord: NBR rubber (material)

• Temperature: -30°C up to +100°C

Main features

✅ Internal Ø (mm): 10.4

✅ External Ø (mm): 15.9

✅ Thickness (mm): 2

✅ For thread: G 1/8"

Safety and protection

✔ Ensures an excellent seal to prevent leaks

✔ Suitable for high pressure applications

Sole and comfort

Not applicable

Certifications and resistances

✔ Complies with industry standards

Technologies and materials

? Corrosion and wear resistant material

Sectors of use

? Plumbing and pneumatic

? Industrial and mechanical applications

? Threaded joints for high sealing
