U-Seal Sealing Ring (Washer) 1" 33.89x42.8x3.3
Certification: ---

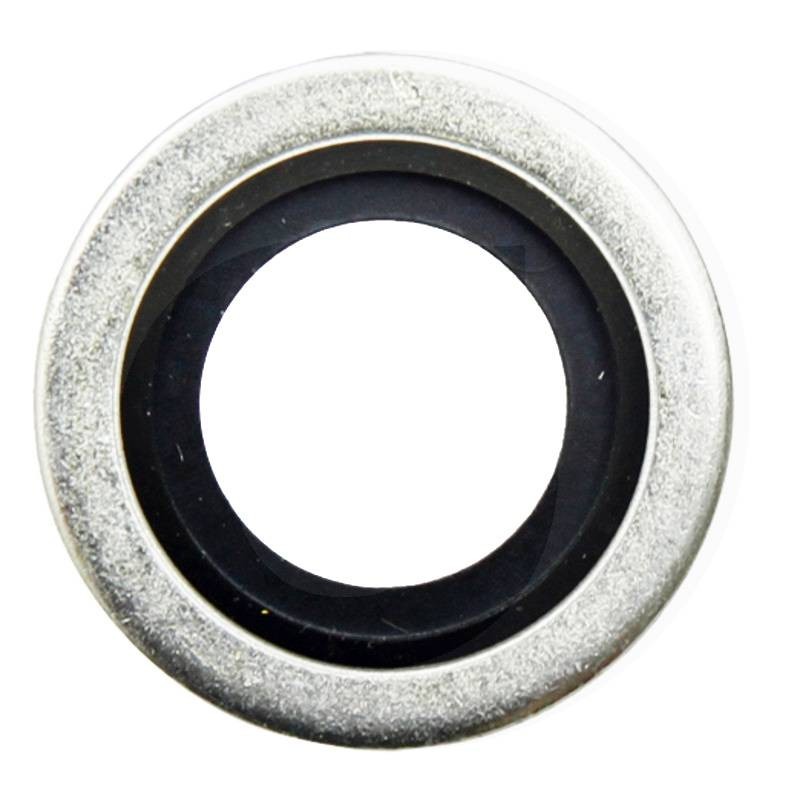

U-Seal or Usit rings are used in industries where a high seal is required or where there is high pressure and a secure seal must be guaranteed, for example in the process industry, in the food or pharmaceutical sectors. These rings are flat metal gaskets with a trapezoidal sealing cord made of internally vulcanized elastic rubber for the static sealing of screwed joints and flanged connections
• Metal ring: steel, galvanized (material)
• Sealing cord: NBR rubber (material)
• Temperature: -30°C to +100°C
Main features
✅ Internal Ø (mm): 33.89
✅ External Ø (mm): 42.8
✅ Thickness (mm): 3.3
✅ For thread: G 1"
Safety and protection
✔ Ensures an excellent seal to prevent leaks
✔ Suitable for high pressure applications
Sole and comfort
Not applicable
Certifications and resistances
✔ Complies with industry standards
Technologies and materials
? Corrosion and wear resistant material
Sectors of use
? Hydraulic and pneumatic systems
? Industrial and mechanical applications
? Threaded joints for high sealing
