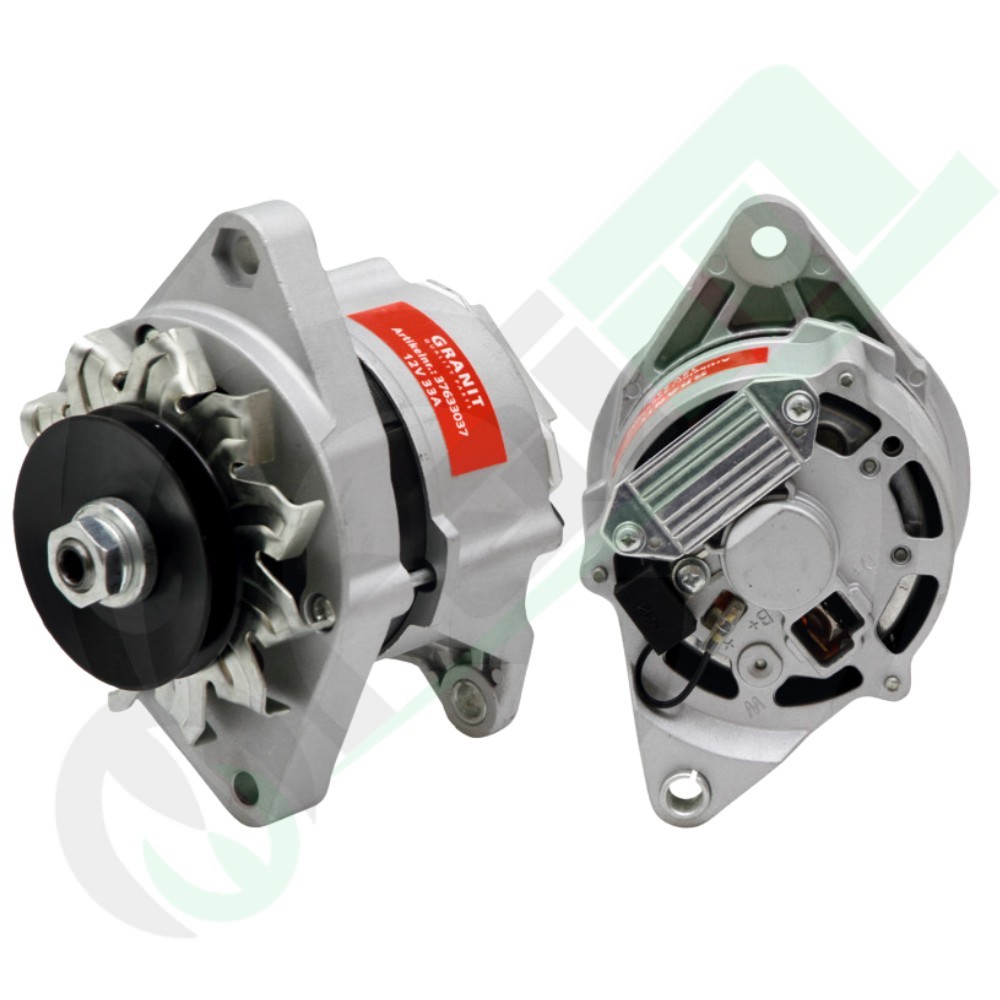

Alternator 14 V / 33 A for FIAT, Lamborghini and Ford Tractors - Code 37633037

A standard (Form A) 33 Amp alternator, ideal for a wide range of older agricultural tractors and heavy machinery, including many models from FIAT series (Series 46, 66, 80, etc.), Lamborghini, Antonio Carraro, and Ford. The component is equipped with a plug connection for simplified installation.

Technical Specifications

• Primary Code: 37633037
• Nominal Voltage: 14 V
• Charge Current: 33 A
• Type: Form A
• Rotation Direction: Clockwise (↻)
• Connection: With plug connection

Mounting and Pulley Details

• Pulley Diameter: 82.0 mm
• Belt Width: 9.7 mm (V-belt)
• Pulley Distance: 49.0 mm
• Installation Angle: 33°
• Flange Size: 73.0 mm
• Main Mounting Hole / R: 10.2 mm / 80.0 mm
• Belt Tensioner Hole / R: 11.0 mm / 80.0 mm

Cross Reference Numbers (Alternative Codes)

This alternator is compatible with the following codes:

• LS12508
• AGN1037E
• 9972269

Main Applications

FIAT Tractors (Series 46, 56, 66, 88, 90, Nastro D'Oro, TK and many others), Lamborghini (Series 500, 600, 700, Formula, Grand Prix), Antonio Carraro, and Ford.
