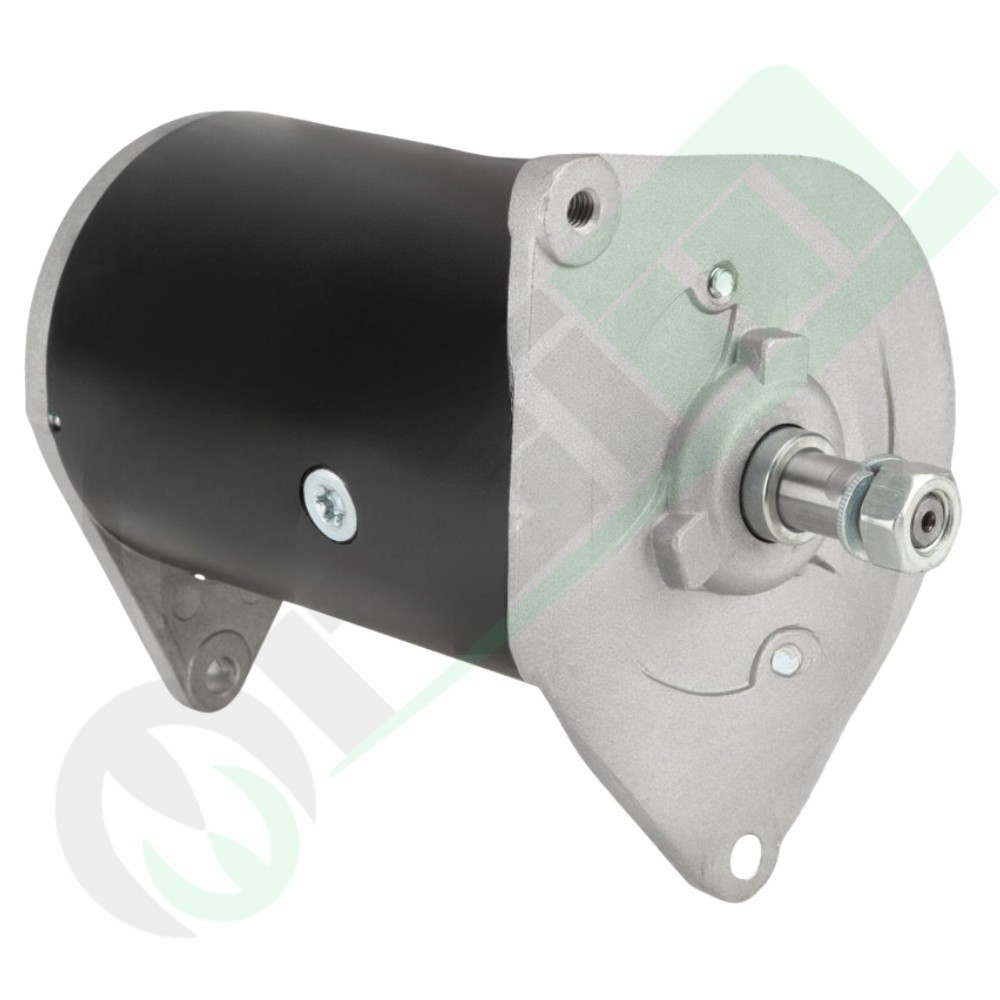

Alternator 14 V / 11 A for Agricultural Tractors - Code 37899265
Low-current (11 Ampere) alternator commonly applied to classic FORD (Dexta, Major), Case IH (A/B-Family Series), and Steyr tractors. This model is **externally grounded (Ground through the housing)** and **requires an external voltage regulator** (specifically regulator code 37899268).
Main Technical Specifications
- Primary Code: 37899265
- Nominal Voltage: 14 V
- Charge Current: 11 A
- Grounding: Through the housing
- Regulator: Requires external regulator (Code 37899268)
- Rotation Direction: Clockwise (↻)
- Design Shape: A
- Mounting Angle: Left 60° (s 60)
Mounting and Pulley Details
- Flange Size: 146.0 mm
- Fixing Hole / R: 8.5 mm / 76.0 mm
- Belt Tensioner Hole / R: M8 / 76.0 mm
- Pulley: Not specified (reuse original)
- Terminals: F -> DF (narrow), D+ -> D+ (wide)
Cross Reference Numbers (Alternative Codes)
This alternator is compatible with the following reference codes:
- JDG1003
- 3055288R91 (Case IH)
- K908882
Main Applications
FORD Tractors (Dexta, Super Dexta, Major, Super Major Series), Steyr (Series 13, Jubiläum), and Case IH (434, B 414, A-Family Series, B-Family Series).
