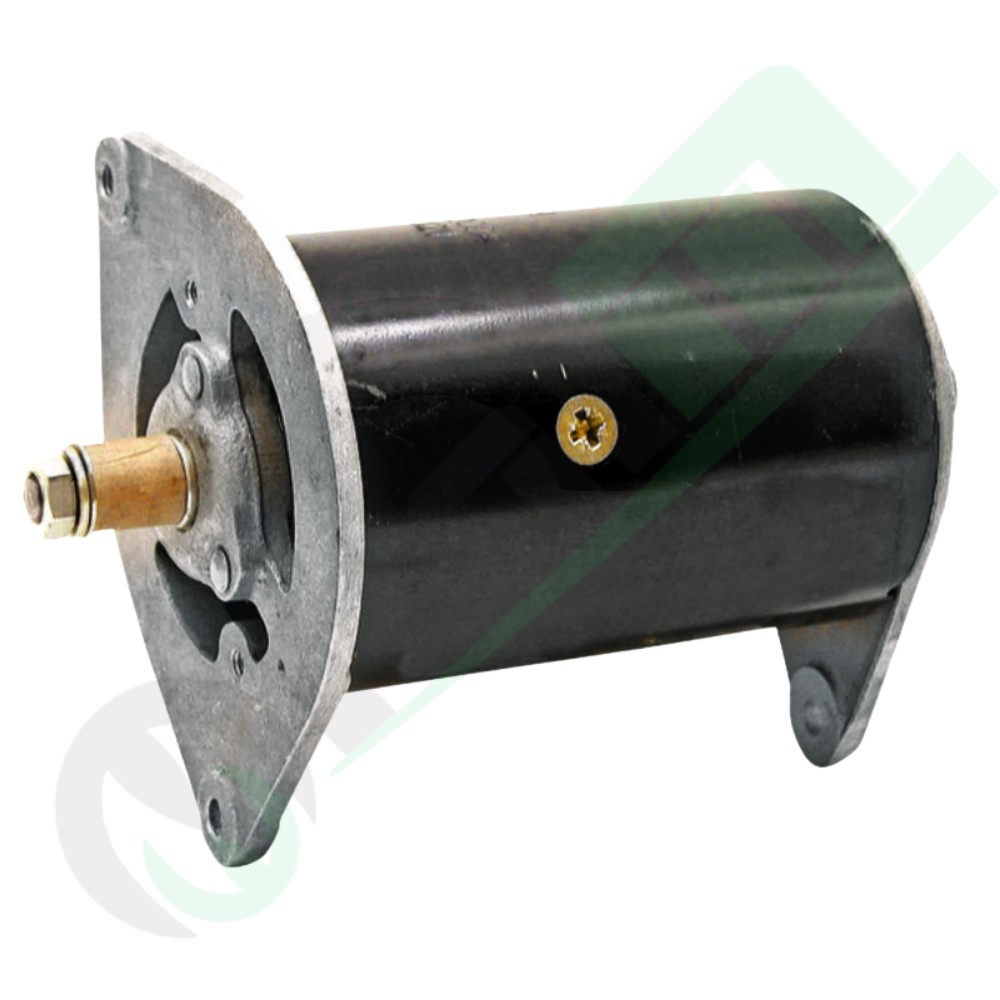

Alternator 14 V / 22 A for Ford and Massey Ferguson Tractors - Code 37899266
A replacement 22 Amp alternator specifically designed for vintage **Ford (1000-4000 Series)** and **Massey Ferguson (100 Series)** tractors. This model features a **15 mm shaft diameter** and strictly **requires an external voltage regulator** (Code 37899268) for operation.
Main Technical Specifications
- Primary Code: 37899266
- Nominal Voltage: 14 V
- Charge Current: 22 A
- Regulator: Requires external regulator (Code 37899268)
- Shaft Version: Ø 15 mm
- Rotation Direction: Clockwise (↻)
- Design Shape: A
- Mounting Angle: Left 40° (s 40)
Mounting Details
- Flange Size: 145.0 mm
- Fixing Hole / R: 8.5 mm / 76.0 mm
- Belt Tensioner Hole / R: M8 / 76.0 mm
- Fixing L/d/R: 145.0 / 8.5 / 76.0 mm
- Pulley: Not included (reuse original)
Cross Reference Numbers (Alternative Codes)
This alternator is compatible with the following reference codes:
Main Applications
FORD Tractors (1000, 2000, 3000, 4000 Series) and Massey Ferguson (100 Series, including models 130, 135, 165, 175 with A4.236 Engine, 185, 188).
