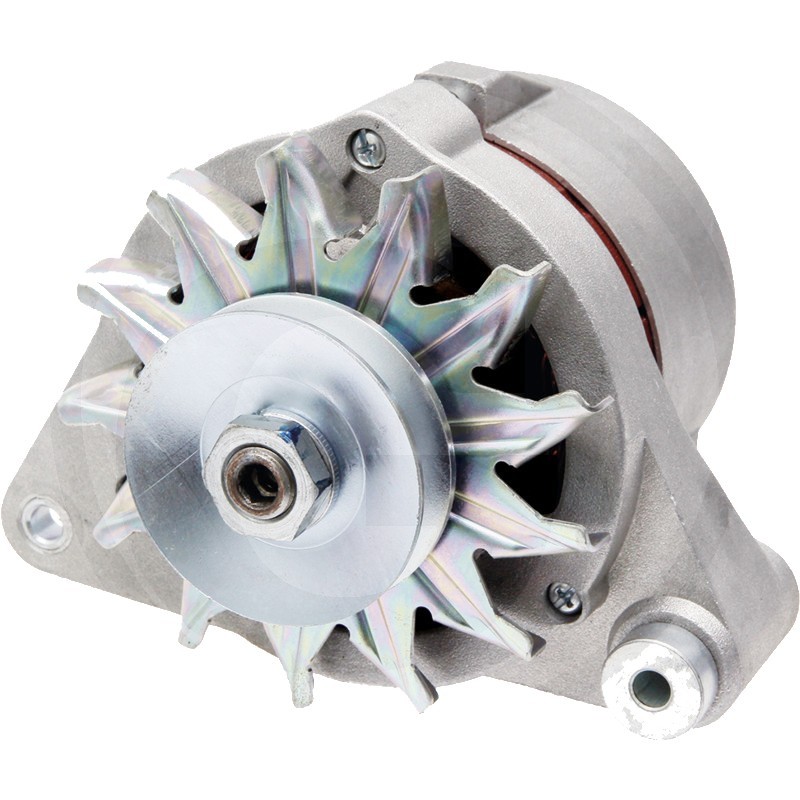

Granit alternator 14V 33Ah IA0096

Version:

Granit alternator 14V 33Ah IA0096

Cross Reference:

AZ23575, MG 124, AGN1096E, 01177481, 01171617, X830060011000, 3218239R91, 3218544R91,

Technical data:

• Rated voltage (V): 14

• Charging current (A): 35

• Mounting L/d/R (mm): 56.0 / 8.3 / 86.0

• Flange size (mm): 56.0

• Belt tensioner hole Ø / R (mm): 8.3 / 86.0

• Shape: B

• Installation angle (°): s 60

• Direction of rotation: ↻

• Pulley Ø (mm): 68.0

• Pulley distance (mm): 23.5

• Belt width (mm) / type: 12.7

• Additional information: with tachometer connection

• Mounting hole Ø / R (mm): 8.3 / 86.0

• Rated values ​​(V / A): 14 / 35

Applied to the following models:

John Deere:

920, 1020, 1120, 2020, 2120, 3120, 30 930, 1030, 1130, 1530, 1630, 1630VU, 1830, 2030, 2130, 3030, 3130, 35 1035 (nur für Spanien), 1635 (nur für Spanien), 2035 (nur für Spanien), 2135 (nur für Spanien), 3135 (nur für Spanien), 40 840, 940, 1040, 1140, 1640, 1840, 2040, 2040S, 2140, 3040, 3340 (nur für Spanien), 3640, 50 1350, 1550, 1750, 1850, 1950, 2250, 2450, 2650, 2850, 3050, 3350, 900 925, 932, 935, 942, 945, 952, 955, 965, 975, 5400 5420, 6000/6000SE 6100, 6200, 6300, 6400

Deutz Fahr:

D 2505, D 3005, D 4005, D 4505, D 5005, D 5505, D 6005, D 8005, D 9005, D 2506, D 3006, D 4006, D 4506, D 5006, D 5206, D 5506, D 6006, D 6206, D 6806, D 7006, D 7206, D 7506, D 8006, D 9006, D 10006, D 2807, D 3607, D 4007, D 4507, D 4807, D 5207, D 6007, D 6207, D 6507, D 6807, D 6907, D 7007, D 7207, D 4507C, D 4807C, D 5207C, D 6007C, D 6207C, D 6507C, D 6807C, D 6907C, D 7007C, D 7207C, D 7807C, D 25, D 30, D 40, D 50, D 80, DX 80, DX 85, DX 86, DX 90, DX 92, DX 110, DX 120, DX 4.10, DX 4.30, DX 4.50, DX 4.70, DX 6.10, DX 6.30, Intrac 2002, Intrac 2003, Intrac 2004, M 600, M 660, M 750, M 770, M 900, M 922, M 980, M 1002, M 1102

Fendt:

Farmer 1, Farmer 2, Farmer 3, Farmer 4, GT 231

Antonio Carraro:

352, 354, 400, 452, 454, 455, 455 CS, 500, 502, 504, 505, 505 CL, 552, 554, 555, 555 CL, 600, 652, 654, 655, 655 CL, 700, 702, 704, 9000, 9800

Goldoni:

1055, 3050, Star 3070

Case IH:

Motor Case IH D-155, Motor Case IH D-179, Motor Case IH D-239, Motor Case IH D-246, Motor Case IH D-268, Motor Case IH D-310, Motor Case IH DT-239, Motor Case IH DT-358, Motor Case IH DT-402, 431, 644, 743, 743 XL, 744, 745 S, 745 XL, 844, 844 S, 844 XL, 845, 845 XL, 856 XL, 946, 955, 955 XL, 956, 956 XL, 1046, 1055, 1055 XL, 1056, 1056 XL, C 55, C 64, CS 68 (6/97-3/99), CS 75 (3/99-3/04), CS 75 (6/97-3/99), CS 78 (3/96-1/99), CS 86 (3/96-1/99), CS 94 (3/96-1/99), 1246, 1255, 1255 XL, 1455, 1455 XL
