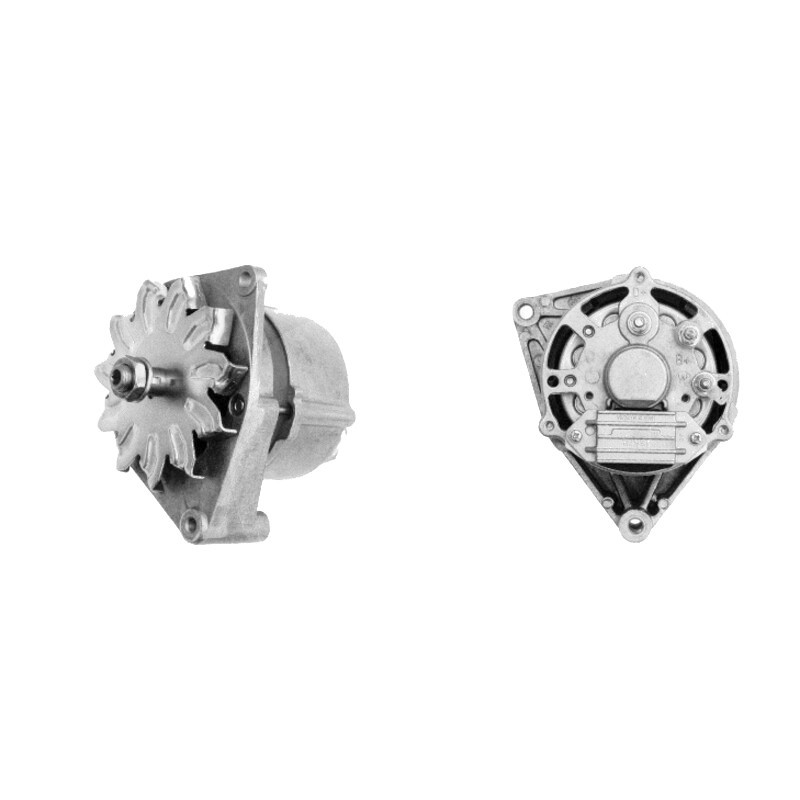

Mahle alternator 14V 33Ah IA0507

Version:

Mahle Alternator 14V 33Ah IA0507

Cross Reference:

B506371, MG517,

Technical Data:

• Direction of rotation: ↻

• Shape: B

• Charging current (A): 33

• Pulley Ø (mm): -

• Rated voltage (V): 14

• Installation angle (°): r 60

• Fixing L/d/R (mm): 56.0 / 8.2 / 86.0

• Belt width (mm) / type: -

• Flange size (mm): 56.0

• Additional information: dust-tight, with flywheel

• Fixing hole Ø / R (mm): 8.2 / 86.0

• Rated values ​​(V / A): 14 / 33

Applied to the following models:

Goldoni:

40, 45, 50, 238, 245, 933, 1038, 3445

Case IH:

Motor Case IH D-155, Motor Case IH D-179, Motor Case IH D-239, Motor Case IH D-246, Motor Case IH D-268, Motor Case IH D-310, Motor Case IH DT-239, Motor Case IH DT-358, Motor Case IH DT-402, Serie A-Familie 433, 440, 533, 540, 633, 640, 733, 740, 833, 840, 940 (1/90-12/92), Serie D-Linie D 440
