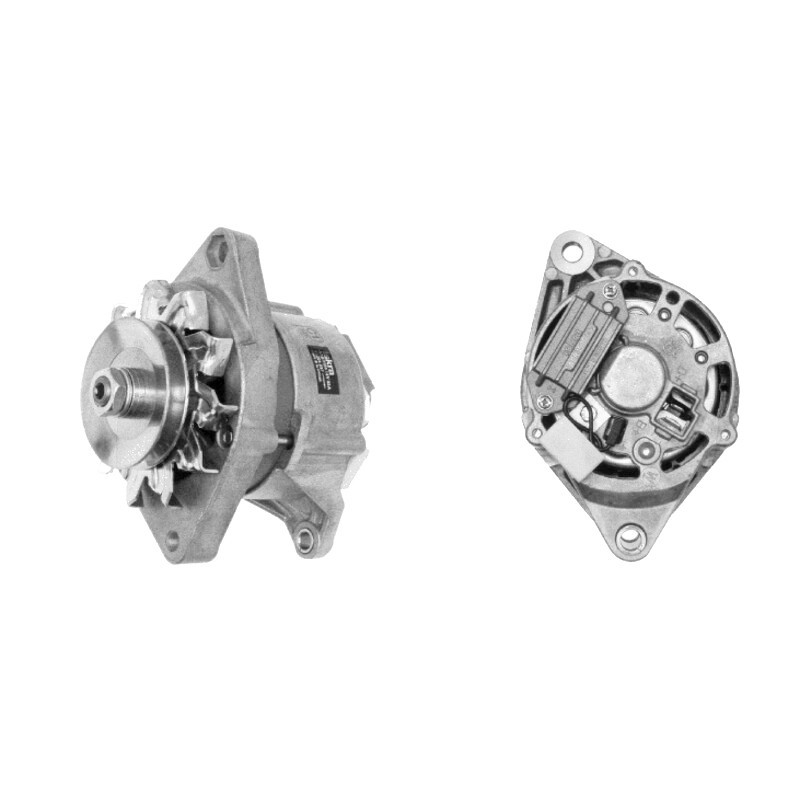

Mahle alternator 14V 33Ah IA0037

Version:

Mahle alternator 14V 33Ah IA0037

Cross Reference:

5101645, AGN1037E, MG123, 2,9439,570,0, 4808498,

Technical Data:

• Direction of rotation: ↻

• Shape: A

• Charging current (A): 33

• Pulley Ø (mm): 80.0

• Nominal voltage (V): 14

• Installation angle (°): d 33

• Fixing L/d/R (mm): 73.5 / 10.2 / 80.0

• Belt width (mm) / type: 9.7

• Pulley distance (mm): 49.0

• Flange size (mm): 73.5

• Additional information: with plug-in connection

• Mounting hole Ø fixing / R (mm): 10.2 / 80.0

• Rated values ​​(V / A): 14 / 33

Applied to the following models:

Fiat:

55-46, 60-46, 65-46, 55-56, 60-56, 70-56, 45-66, 45-66 S, 50-66, 50-66 S, 55-66, 56-66 S, 60-66, 60-66 F, 60-66 S, 65-66, 65-66 S, 70-66, 70-66 F, 70-66 LP, 70-66 S, 80-66, 80-66 F, 80-66 S, 466, 566, 666, 766, 470, 570, 670, 45-76 V, 55-76 F, 55-76 V, 60-76 F, 70-76 F, 70-76 LP, 70-76 V, 80-76 F, 580, 680, 780, 880, 980, 1180, 1280, 1380, 1580, 50-86 S V, 50-86 V, 62-86 F, 55-88, 60-88, 65-88, 70-88, 80-88, 55-90, 60-90, 65-90, 70-90, 80-90, 85-90, 60-93, 65-93, 72-93, 82-93, 88-93, 60-94, 65-94, 72-94, 82-94, 88-94, 411, 412, 421, 446, 474, 511, 512, 556, 455, 465, 505, 555, 565, 605, 655, 765, 855, 955, 415, 615, L 60, L 65, L 75, L 85, L 95, 400, 420, 440, 450, 460, 480, 500, 540, 550, 600, 640, 650, 1000, 1300, 55-65 F, 55-65 M, 55-65 V, 55-75 F, 55-75 M, 55-75 V, 55-85 F, 55-85 M, 55-85 V, 60-65, 60-65 M, 60-65 V, 60-75, 60-75 M, 60-75 V, 60-85 F, 60-85 V, 62-85, 62-85 M, 70-65, 70-65 M, 70-75, 70-75 M, 72-85, 72-85 M, 80-65, 80-75, 82-85, 85-55, 88-85.

Lamborghini:

345, 345 F, 550, 600, 660-V, 674, 674-70, 674-70N, 700, 774, 774-80, 774-80N, 775 F, 775 V, 956-100, 1106, 1306, 1506, 1706, C 352, C 503, C 554, C 583, C 603, C 653, C 664, C 674, C 674-70 Ergomatic, C 683, C 684, C 754, C 774-80 Ergomatic, C 784, C 874-90T Ergomatic, Crono 554-50, Crono 564-60, Crono 574-70, Grand Prix 674-70, Grand Prix 774-80, Grand Prix 874-90T, R 235, R 550, R 550-550, R 573-60N, R 574-60N, R 613 V, R 653, R 660 FR, R 660-660, R 674-5, R 674-70N, R 683, R 684, R 714, R 724, R 784, R 854, R 874 T, R 874-90T, R 955, R 1056, R 1156, R 1256, R 1556.

Antonio Carraro:

3100-4 Pomareiro Vinhateiro, 3300-4 Pomareiro Vinhateiro, 3400-4 Pomareiro Vinhateiro, 3500-4 Pomareiro Vinhateiro

Ford:

3230, 3830, 4030, 4230, 4430, 3435, 3935, 4135, 4635, 4835, 5635, 6635, 7635.

New Holland:

TK65, TK75, TK76, TK85, TK95, TL65, TL70, TL80, TL90, TL100

Same:

Antares 100, Antares 110, Antares 130, Argon 50, Argon 60, Argon 70, Aster 60, Aster 70, Centauro 70 Export, Centauro 70 Special, Centurion 75 Export, Centurion 75 Special, Condor 55, Corsaro 70, Delfino 35, Delfino 35 Frutteto, Drago 120, Explorer 55, Explorer 60, Explorer 65, Explorer 70, Explorer 75, Explorer 75 Special, Explorer 80, Explorer 90, Explorer C 65, Explorer C 70, Explorer C 75, Explorer C 80, Explorer C 90, Explorer II 60, Explorer II 70, Explorer II 80, Explorer II 90 T, Explorer II Special 60, Explorer II Special 70, Explorer II Special 80, Explorer Special 60, Explorer Special 70, Explorer Special 80, Explorer Special 90, Frutteto 60, Frutteto 75, Frutteto II 60, Frutteto II 75, Frutteto II 85, Galaxi 170, Jaguar 95, Jaguar 100, Laser 85, Laser 90, Laser 100, Laser 110, Laser 130, Laser 150, Leopard 85, Leopard 90, Leopard C, Mercury 85, Minitauro 60, Minitaurus 60, Panther 90, Panther 95, Ranger 45, Saturno 80, Solar 50, Solar 55, Solar 60, Taurus 60, Taurus C, Tiger 100, Trident 130, Vigneron 60, Vigneron 62, Vigneron 70, Vigneron 75.
