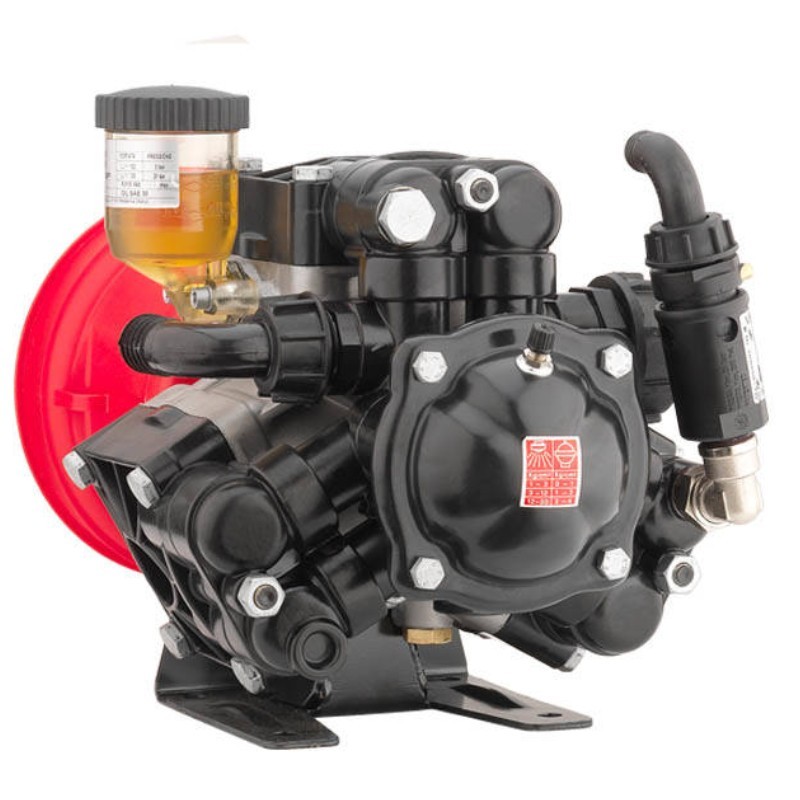

Diaphragm Pump AR 115 BP C | Annovi Reverberi

Diaphragm Pump AR 115 BP C | Annovi Reverberi

Description:

Reciprocating volumetric pump with three semi-hydraulic diaphragms for use in the agricultural sector on open field sprayers for treatments with fertilizers, plant protection products or herbicides in low pressure regime. Parts in contact with the pumped liquids in plasticized aluminum and stainless steel. Diaphragms in NBR. Seals in NBR. Die-cast casing with mechanics in oil bath, transparent plastic tank for visual level control. Pistons with segment for greater efficiency of the “oil cushion” system for membrane protection. Newly designed membrane blocking system to avoid contact lacerations even in heavy-duty conditions. Valves with spherical sector profile that offer less resistance to the passage of the liquid and improve volumetric efficiency.

Technical Features:

AR Code: 1203

Version: C

N. membranes: 3

Max flow rate (l/min): 107.9

Max flow rate (gpm): 28.5

Max pressure (bar): 20

Max pressure (psi): 290

Power (Hp): 5.5

Rev/min (rpm): 550

Net weight (Kg): 11.8

Dimensions (mm) - L: 306

Dimensions (mm) - H: 293

Dimensions (mm) - W: 340

Suction (mm): ø 40

Discharge (mm): ø 25

Max temperature (°C): 60
