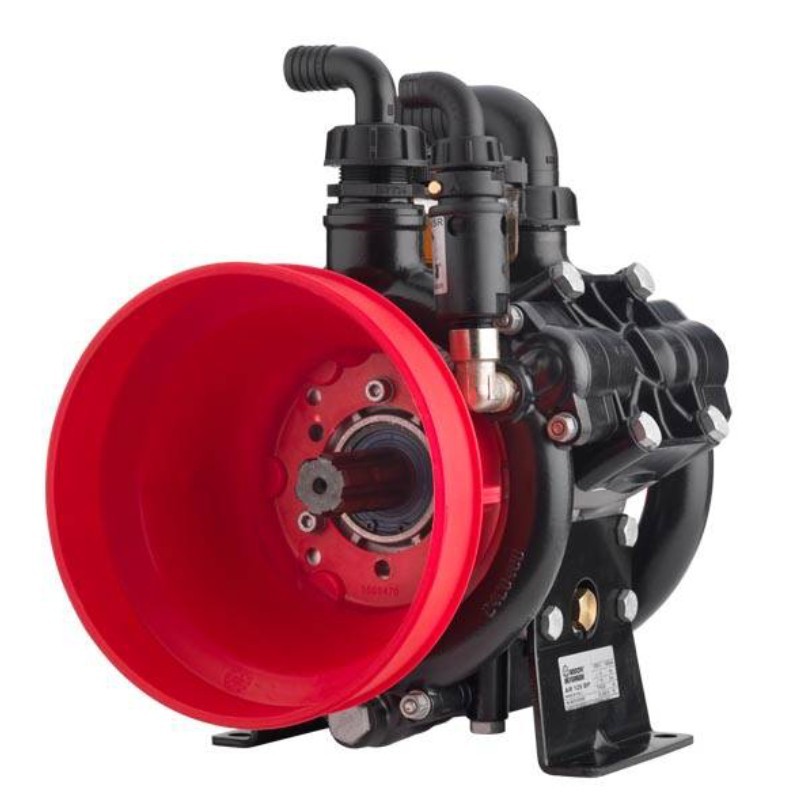

Diaphragm Pump AR 125 bp C/C BlueFlex | Annovi Reverberi
Diaphragm pump AR 125 bp C/C BlueFlex | Annovi Reverberi
Description:
Pump with three semi-hydraulic diaphragms, for use in low pressure regimes. Parts in contact with the pumped liquids in Rilsan plasticized aluminum and in AISI 303/304. Diaphragms in BlueFlex™. Seals in NBR. Die-cast casing with mechanics in oil bath, transparent plastic tank for visual level control. Supplied with hydro-pneumatic damper for greater regularity of operation and less pulsation in the delivery circuit. Sensor for remote control on request. Kit for remote mounting of the oil tank on request. Oil drain plug. Pistons with segment for greater efficiency of the “oil cushion” system for membrane protection. Valves with spherical sector profile that offer less resistance to the passage of the liquid and improve volumetric efficiency. Sturdy feet fixed to the pump casing. Complete with overpressure valve with reset and cardan protection. Geomet screws. Pulley applications available, flanges for hydraulic motors and for hydraulic pumps for speed multipliers.
Technical Features:
AR Code: 32022
Version: C/C
N. membranes: 3
Max flow rate (l/min): 120.4
Max flow rate (gpm): 31.8
Max pressure (bar): 20
Max pressure (psi): 290
Power (Hp): 5.8
Rev/min (rpm): 550
Net weight (Kg): 23
Dimensions (mm) - L: 344
Dimensions (mm) - H: 392
Dimensions (mm) - W: 444
Suction (mm): ø 40
Discharge (mm): ø 25
Max temperature (°C): 60
