Diaphragm Pump AR 713 AP C/C BlueFlex | Annovi Reverberi

Diaphragm pump AR 713 AP C/C BlueFlex | Annovi Reverberi

Description:

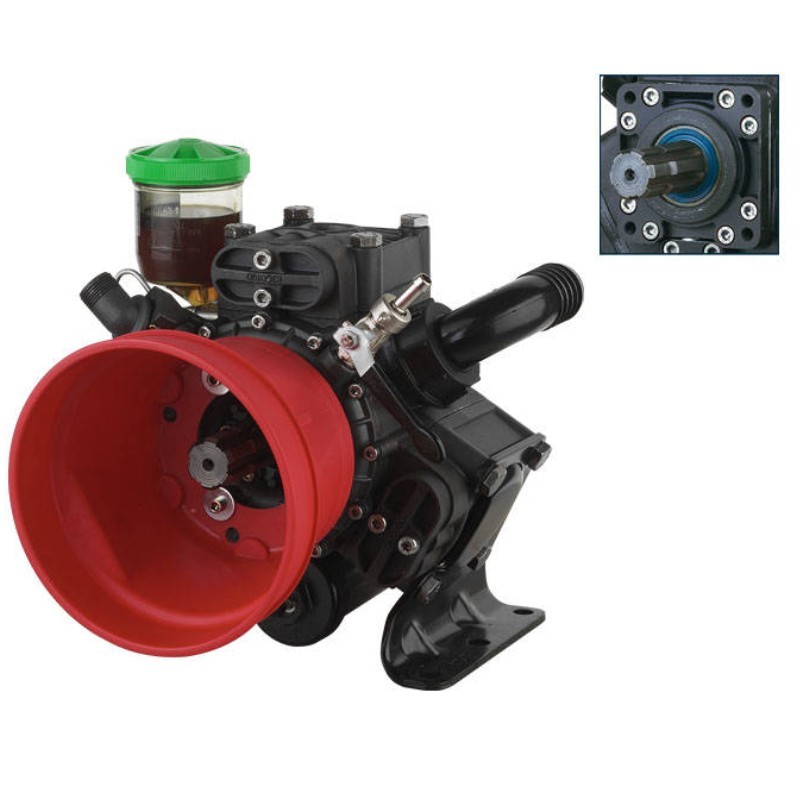

Semi-hydraulic three-diaphragm pump, for use in the professional agricultural sector on sprayers for treatments in orchards or vineyards with phytosanitary products under high pressure. Parts in contact with the pumped liquids in anodized aluminum and AISI 303/304. Diaphragms in BlueFlex™. NBR rubber seals. Die-cast casing with mechanics in oil bath, transparent plastic tank for visual level control. Supplied with hydro-pneumatic damper for greater regularity of operation and less pulsation in the delivery circuit. Remote control sensor available on request. Remote oil tank mounting kit available on request. Oil drain plug. Pistons with segment for greater efficiency of the “oil cushion” system for membrane protection. Newly designed diaphragm blocking system to prevent contact lacerations even in heavy-duty conditions. Valves with a spherical sector profile that offer less resistance to the passage of the liquid and improve volumetric efficiency. Complete with overpressure valve with reset and cardan shaft protection. Zinc-plated screws. Available with reducers for internal combustion engines, flanges for hydraulic motors, hydraulic pumps, speed multipliers.

Technical Features:

AR Code: 32104

Version: C/C

N. membranes: 3

Max flow rate (l/min): 76

Max flow rate (gpm): 20.1

Max pressure (bar): 40

Max pressure (psi): 580

Power (Hp): 7.3

Rev/min (rpm): 550

Net weight (Kg): 20.5

Dimensions (mm) - L: 360

Dimensions (mm) - H: 335

Dimensions (mm) - W: 472

Suction (mm): ø 40

Discharge (mm): Ø 34

Max temperature (°C): 60
