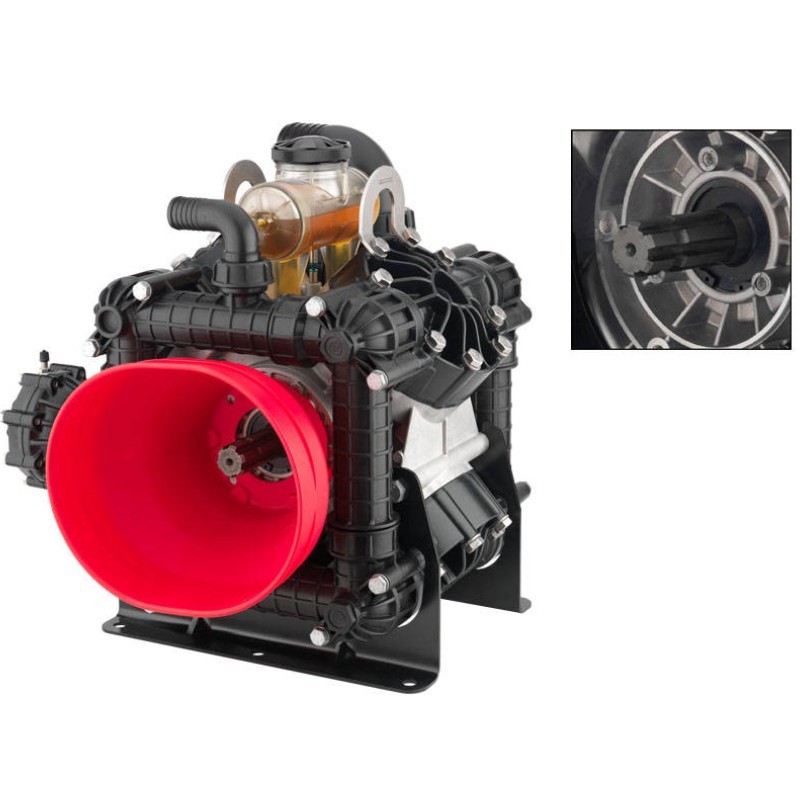

Diaphragm Pump AR 330 BP C/C BlueFlex | Annovi Reverberi

Diaphragm Pump AR 330 BP C/C BlueFlex | Annovi Reverberi

Description:

Four semi-hydraulic diaphragm pump, for use with products in low pressure regime. Parts in contact with the pumped liquids in Rilsan plasticized aluminum and AISI 303/304. Diaphragms in BlueFlex™. Seals in NBR. Equipped with hydro-pneumatic damper for greater regularity of operation and less pulsation in the delivery circuit. Die-cast casing with mechanics in oil bath, transparent plastic tank for visual level control. Remote control sensor on request. Remote oil tank mounting kit on request. Oil drain plug. Pistons with segment for greater efficiency of the “oil cushion” system for membrane protection. Newly designed membrane blocking system to avoid contact lacerations even in heavy-duty conditions. Valves with a spherical sector profile that offer less resistance to the passage of the liquid and improve volumetric efficiency. Sturdy feet fixed to the pump casing. Geomet screws. Cap for draining the liquid from the circuit before winter storage. Complete with cardan shaft protection cover. Available flanges for hydraulic motors and for hydraulic pumps for speed multipliers. Kit for coupling two pumps to form a modular group intended for the different uses of the sprayer.

Technical Features:

AR Code: 32049

Version: C/C

N. membranes: 4

Max flow rate (l/min): 317.9

Max flow rate (gpm): 84.2

Max pressure (bar): 20

Max pressure (psi): 290

Power (Hp): 15.1

Rev/min (rpm): 550

Net weight (Kg): 60

Dimensions (mm) - L: 510

Dimensions (mm) - H: 541

Dimensions (mm) - W: 570

Suction (mm): ø 60

Discharge (mm): ø 35

Max temperature (°C): 60
