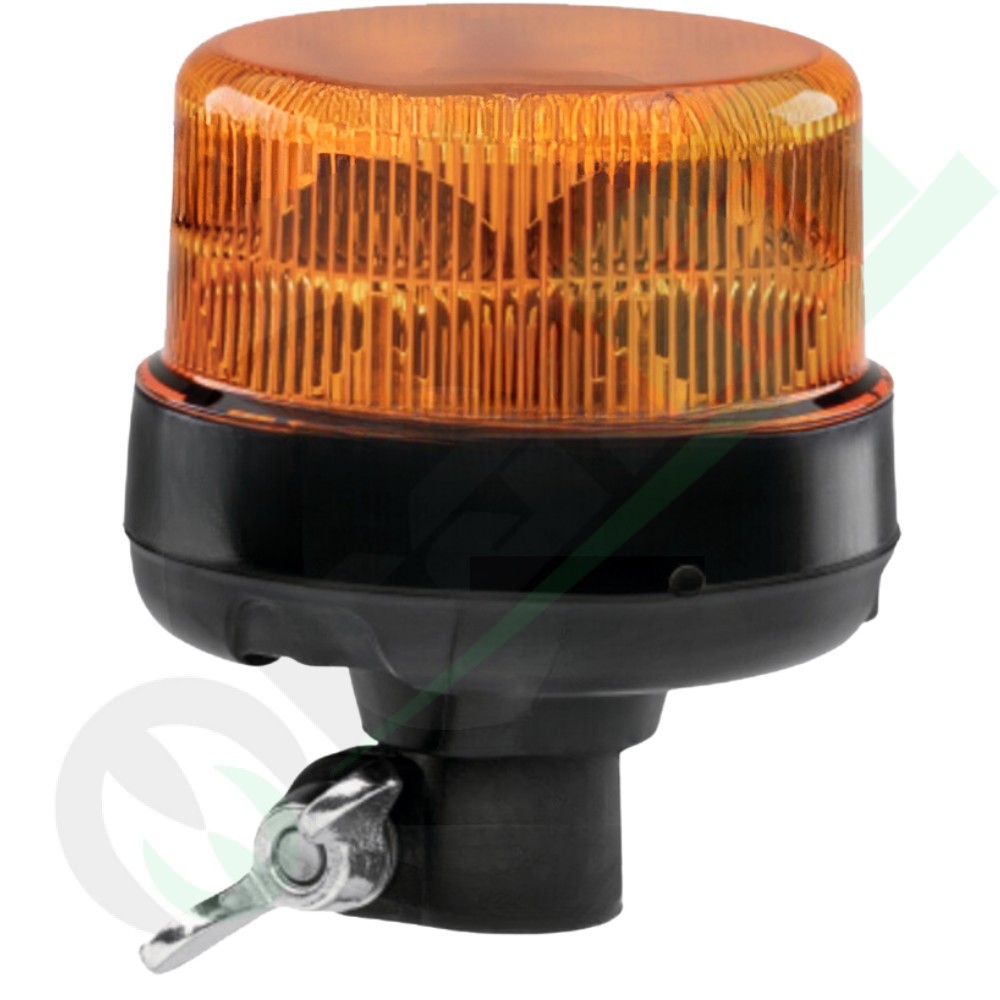

HELLA K-LED Nano LED Beacon 2XD 066 146-011 | 12/24V | R65

HELLA K-LED Nano LED Flash Beacon 2XD 066 146-011 | 12/24V | R65 | Flexible Pole Mount

Hella
2XD066146-011

HELLA K-LED Nano LED FLASH BEACON 12/24V R65 IP6K9 (STEM) Part No. 2XD066146-011

Hurry! only 2 items left in stock.
€104.90
Tax included
Quantity

Last items in stock
Add to Compare
Add to Wishlist
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

Extremely compact and robust **LED flash beacon** from the **K-LED Nano** series by HELLA, ideal for confined spaces. It uses **16 High Power LEDs** with a maximum consumption of 19W. It is **multi-voltage (12V/24V)**, features maximum protection (IP6K7/IP6K9), and is ECE-R65 approved.

Technical Details

HELLA Part Number: 2XD 066 146-011
Type: K-LED Nano
Lamp Type: LED
LED Quantity: 16
Light Function: Flashing Signal (Flash)
Nominal Voltage: 12 V / 24 V
Power Consumption: Ø 5 W / max. 19 W
Nominal Current (A): 1.6 A (12V) / 0.8 A (24V)
Bulbs Included: Yes (Integrated LEDs)
Mounting Mode: Flexible Stem Mount
Color: Yellow (Amber)
Protection Type (IP): IP6K7 / IP6K9 (Maximum resistance to dust, immersion, and high-pressure/temperature jets)
Certification Mark: ECE-R65, ECE-R10, ADR/GGVS, RCM

Dimensions and Materials

Outer Diameter: 109 mm
Total Height: 125 mm
Dimensions (L x H x D): Ø 109 mm x 125 mm
Lens Material: PC (Polycarbonate)
Body Material: EPDM (Ethylene Propylene Diene Rubber)
Thermal Range: -40 °C up to +60 °C
Cable Length: 150 mm
Connection Mode: Flat Plug 6.3 x 0.8 - 1.5
Body Color: Black
