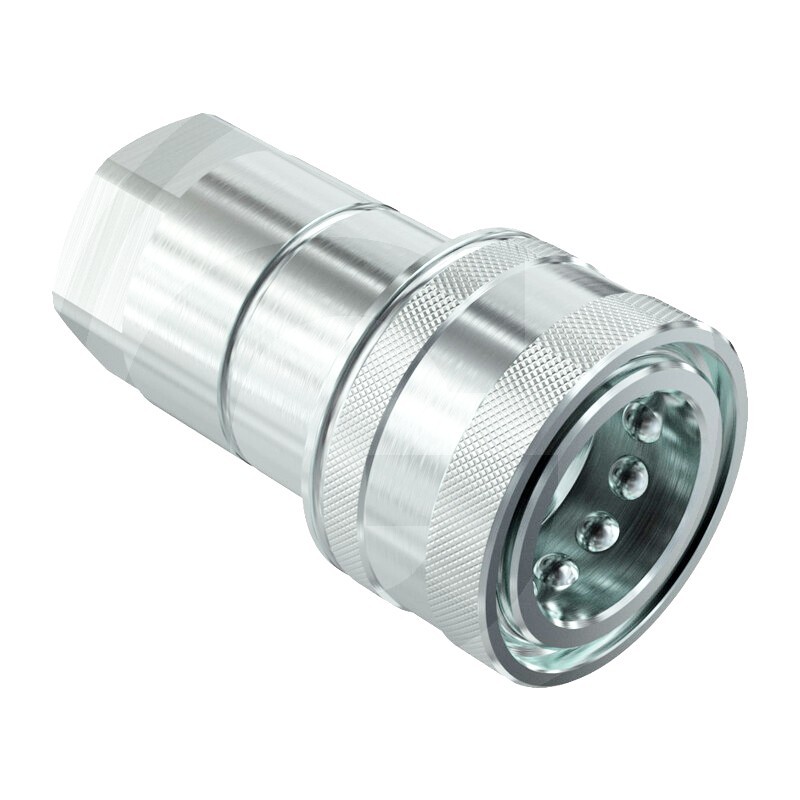

Faster Quick Coupling Female Series NV 3/4" UNF DN12

Faster Quick Coupling Female Series NV 3/4" UNF DN12

Faster
86003902

Faster Quick Coupling Female Series NV 3/4" UNF DN12

Hurry! only 3 items left in stock.
€27.50
Tax included
Quantity

Add to Compare
Add to Wishlist
  Politiche per la sicurezza

(modificale nel modulo Rassicurazioni cliente)

  Politiche per le spedizioni

(modificale nel modulo Rassicurazioni cliente)

  Politiche per i resi

(modificale nel modulo Rassicurazioni cliente)

Faster Quick Coupling Female Series NV 3/4" UNF DN12

Features:

Nominal width: DN 12

Series: 3

Threaded connection: 3/4" UNF

Flow rate (l/min): 75

PN (bar): 300

A (mm): 17.6

B (mm): 67

D (mm): 38

AC (mm): 25

Weight: 260 g

BSP, NPT, UNF, internal thread

Agricultural use

Faster standard. Only for NV-12 according to ISO 7241-1 A

Material: steel, chromium VI-free coating

Temperature range: -25°C up to 125°C.

Connect / disconnect only by pulling back the clamping sleeve, no tear-off function.

Not pressurized.

Ref. Orig.: NV12-12SAEF
