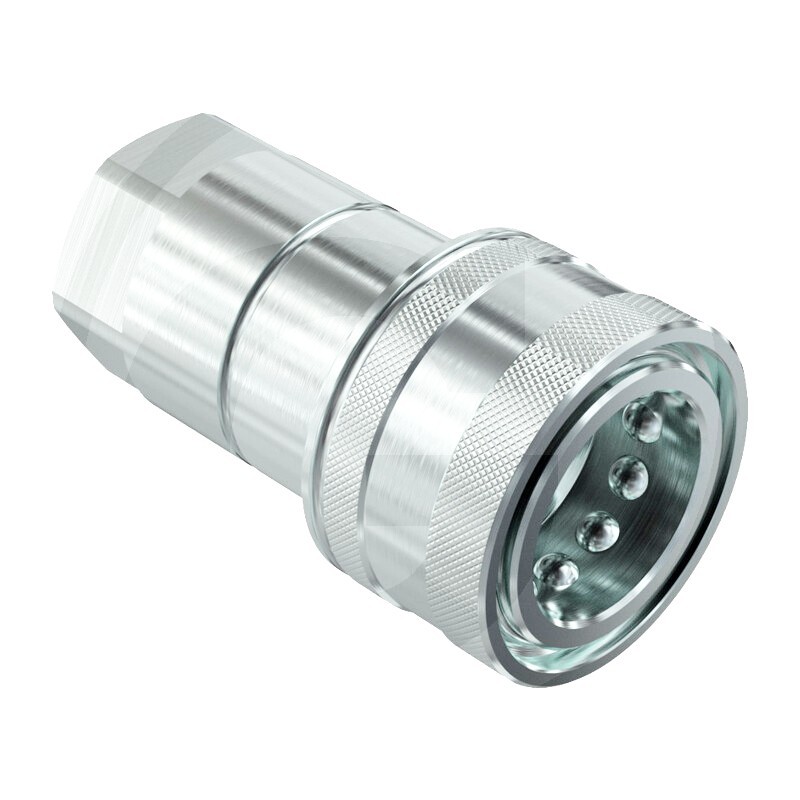

Faster Quick Coupling Female Series NV 7/8" UNF DN12

Features:

Nominal width: DN 12

Series: 3

Thread connection: 7/8" UNF

Flow rate (l/min): 75

PN (bar): 300

A (mm): 20.5

B (mm): 69.5

D (mm): 38

AC (mm): 32

Weight: 338 g

BSP, NPT, UNF, internal thread

Agricultural use

Faster standard. Only for NV-12 according to ISO 7241-1 A

Material: Steel, chromium VI-free coating

Temperature range: -25°C to 125°C.

Connect / disconnect only by pulling back the clamping sleeve, no tear-off function.

Not pressurized.

Ref. Orig.: NV12-58SAEF
