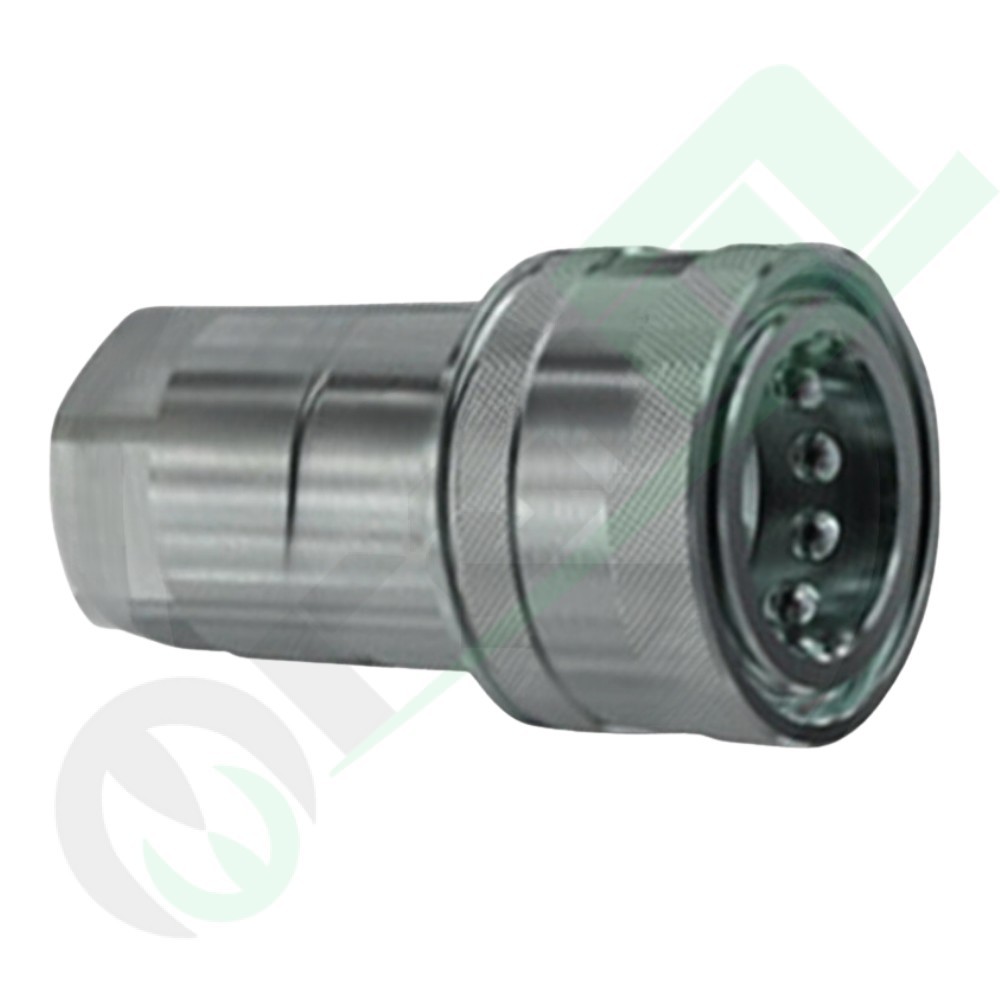

FASTER NV Female Coupling 9/16" UNF

FASTER NV Female Quick Release Coupling 9/16" UNF O-Ring Thread Code 86003908

Faster
86003908

FASTER NV series female quick coupling. 9/16" UNF internal thread with O-ring seat, 15 l/min flow rate, 350 bar. Zinc-plated steel. Code 86003908.

Out of Stock
€29.90
Tax included
Quantity

Non disponibile
  Security Policy

Secure Shopping. Data protected with encryption. Your privacy is our priority!

  Shipping Policy

Fast & Reliable Shipping. Orders handled with care. Various options available.

  Secure Payments

Secure Payments! Transactions protected by encryption. Your safety is guaranteed.

FASTER NV Series female quick coupling with poppet valve and UNF (SAE) thread. Designed to ensure superior leak-tight sealing thanks to the O-ring boss seat, ideal for high-pressure hydraulic systems on mobile machinery.
Product Description
The FASTER female quick coupling (Part No. 86003908) from the NV Series is the advanced technical solution for connections requiring the American SAE (UNF) standard. Equipped with a 9/16" UNF internal thread with an O-ring boss seat, this coupling ensures perfect sealing without the need for additional gaskets or liquid sealants. The steel structure is protected by the MATE 500 (CrIII) treatment, ensuring exceptional longevity against atmospheric agents and chemical corrosion. The internal poppet valve mechanism prevents fluid leaks during disconnection and allows for quick and secure reconnection. With a nominal pressure of 350 bar, it is the ideal component for auxiliary circuits on tractors, earthmoving machinery, and industrial plants using North American hydraulic components.
Technical Data & Specifications
Part Number 86003908
Original Ref. NV 14-38SAE F
Nominal Size DN 06 (Series 1)
Threaded Fitting 9/16" UNF SAE Female
Pressure (PN) 350 bar
Nominal Flow Rate 15 l/min
Total Length (B) 52.2 mm
External Diameter (D) 27 mm
Hexagon (AC) 19 mm
