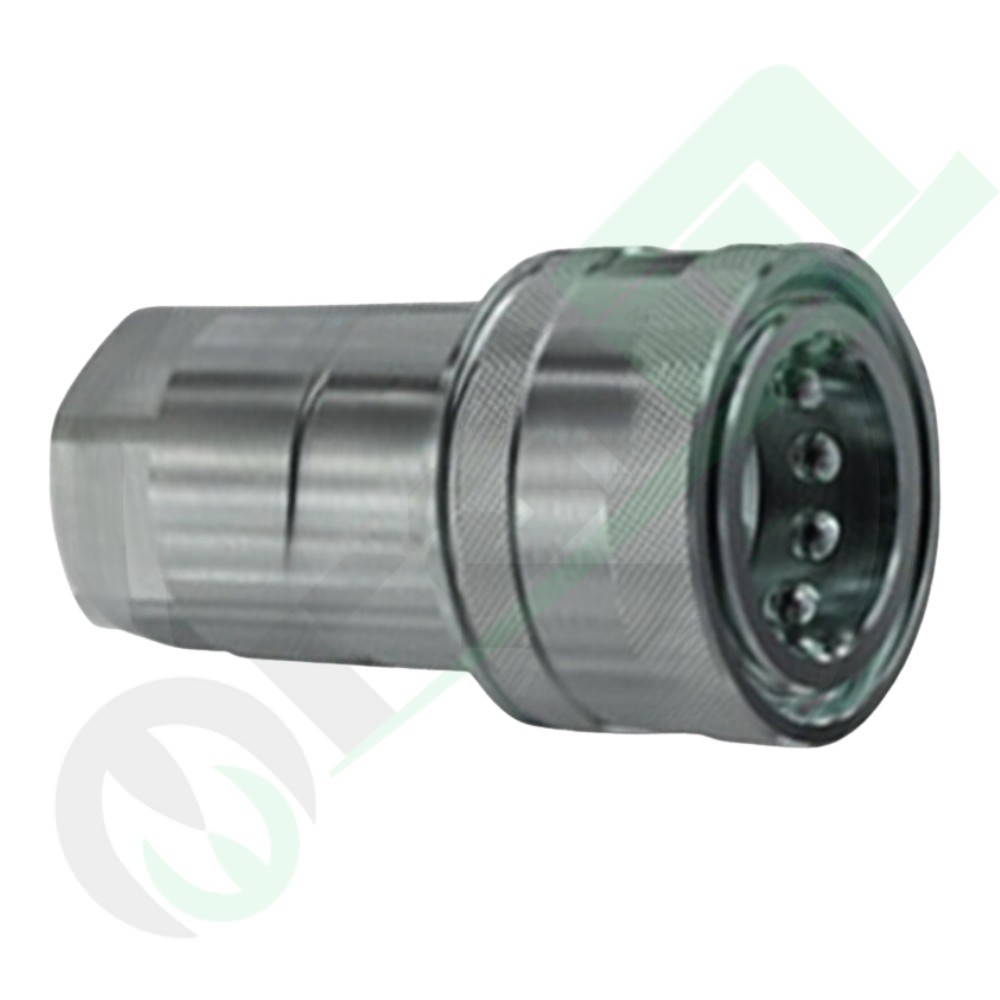

FASTER NV Female Quick Release Coupling 7/8" UNF O-Ring ISO 7241-1-A Code 86003904

FASTER NV Series female quick coupling with poppet valve and 7/8" UNF thread. Designed for hydraulic systems requiring O-ring Boss (ORB) connections, it ensures reliability and ISO A interchangeability on international standard machinery.

Product Description

The FASTER female quick coupling (Part No. 86003904) from the NV Series - Series 3 is the ideal solution for those requiring a robust connection with SAE thread standards. The 7/8" UNF internal thread with O-ring seat ensures a perfect mechanical seal and prevents fluid leakage even in the presence of intense vibrations or pressure peaks up to 300 bar. Made of high-quality steel and treated with MATE 500 (CrIII) finish, this component offers exceptional corrosion resistance, essential for use in harsh sectors such as earthmoving and intensive agriculture. The poppet valve design optimizes hydraulic flow up to 75 l/min, reducing turbulence and ensuring a clean disconnection. The 38 mm outer sleeve and 32 mm hexagon facilitate assembly and maintenance operations, ensuring a long operational life for the system.

Technical Data & Specifications
